Manual Operation 4-15

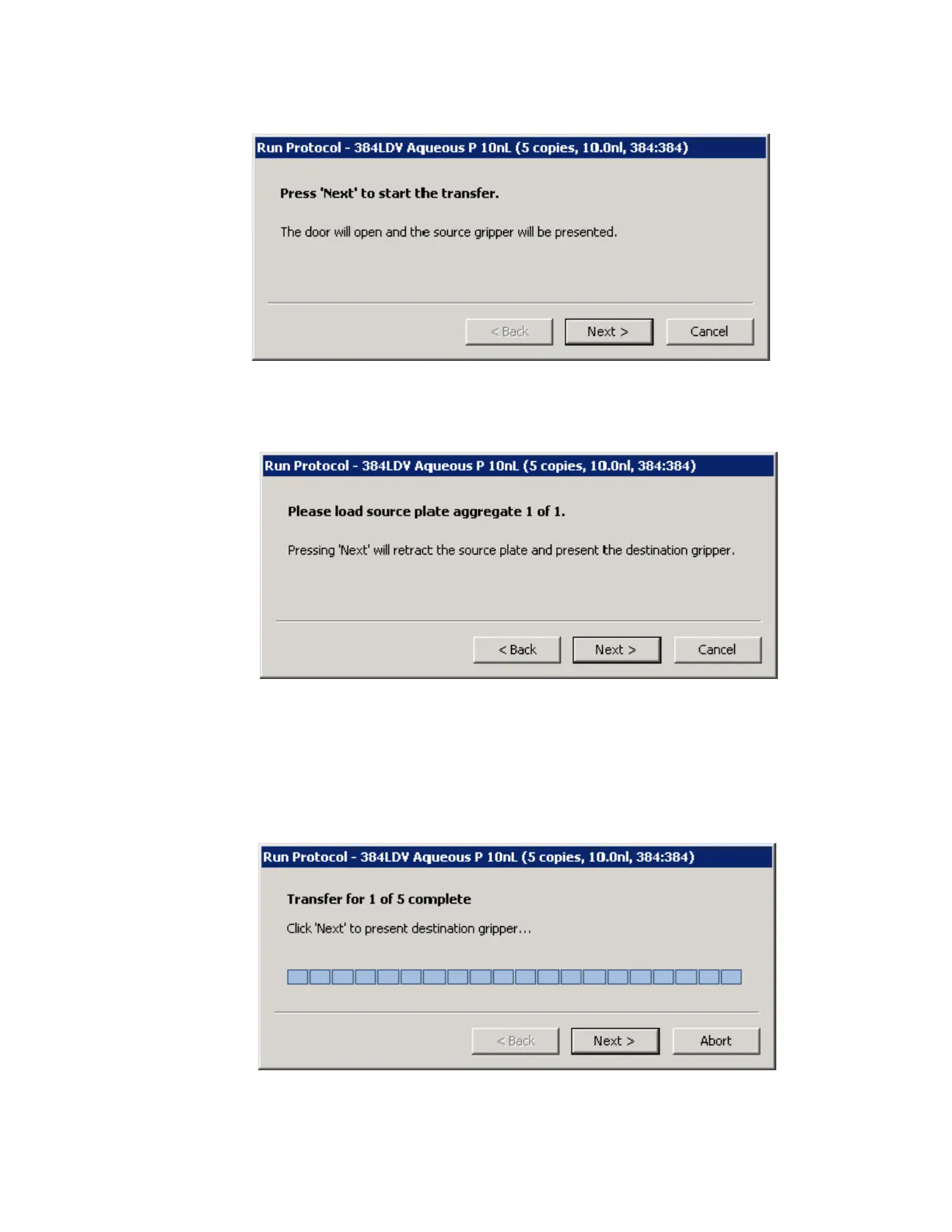

Figure 4.11 Starting transfer protocol
3. Load the source microplate with well A1 in the inner-left corner. Click
the N
EXT button.
Figure 4.12 Loading source plate
The source plate gripper stage retracts into the Echo liquid handler and
the destination plate gripper stage is extended outside of the Echo liquid
handler.
4. Load the destination microplate with well A1 in the inner-left corner.
Click the N
EXT button.
Figure 4.13 Loading destination plate
