Controls and Indicators
33
Tailgate Control Switch
The
TAILGATE
control switch is a 3-position switch that allows the operator to control the tailgate.

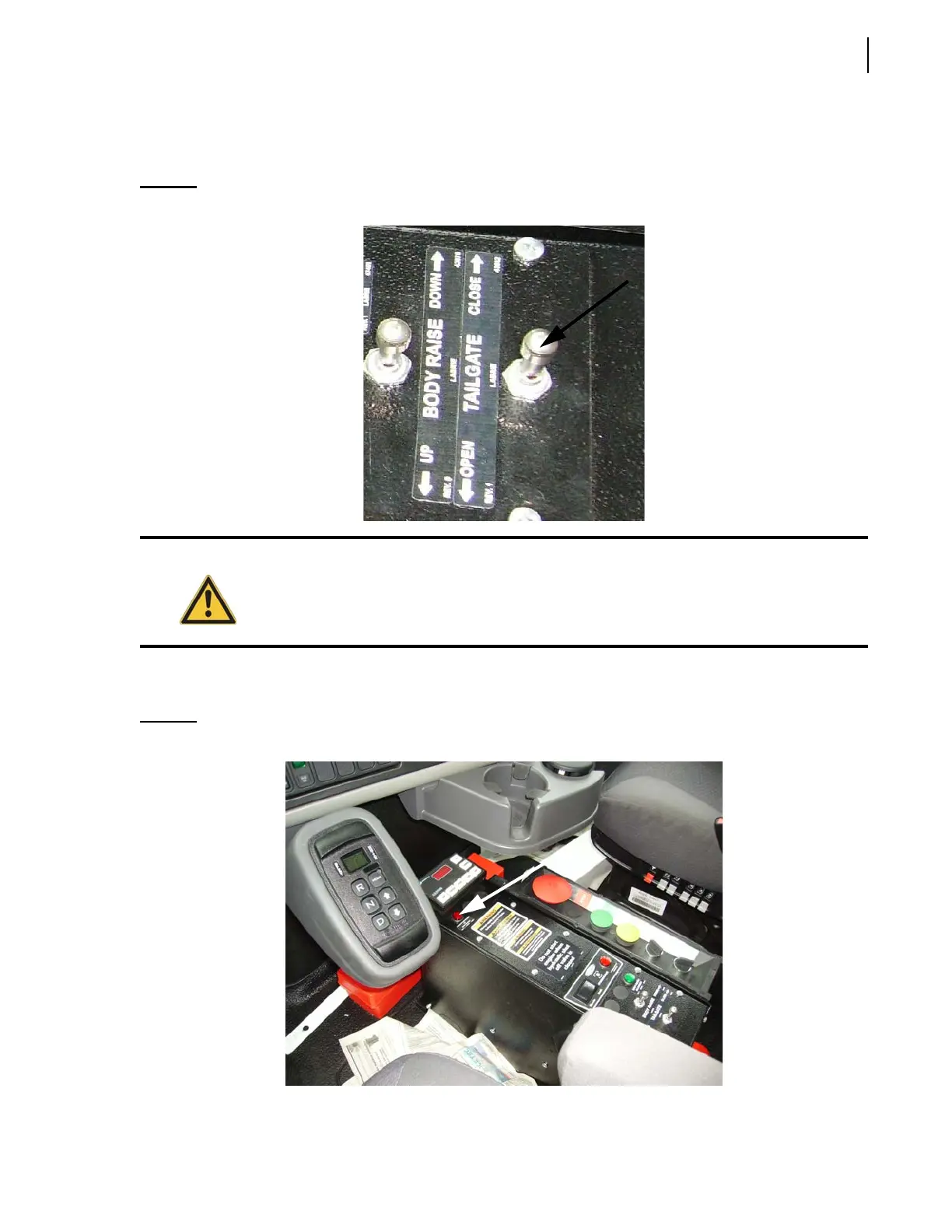

Figure 3-2
T
AILGATE
control switch
When the tailgate is unlocked, the
TAILGATE UNLOCKED
or
BODY RAISED
warning lamp goes on and a
buzzer sounds.
Figure 3-3
T
AILGATE UNLOCKED
or
BODY RAISED
warning lamp
Warning!
Do not drive the vehicle when the tailgate is not fully closed.
