Controls and Indicators
Packer Control Station (on Body)
The A
UTOMIZER
TM
R
ECYCLER
has another packer control station. This one is located on the body
near the crusher panel levers and has the same functions than those of the in-cab packer control
station (see
Packer Control Station (inside Cab)
on page
37).

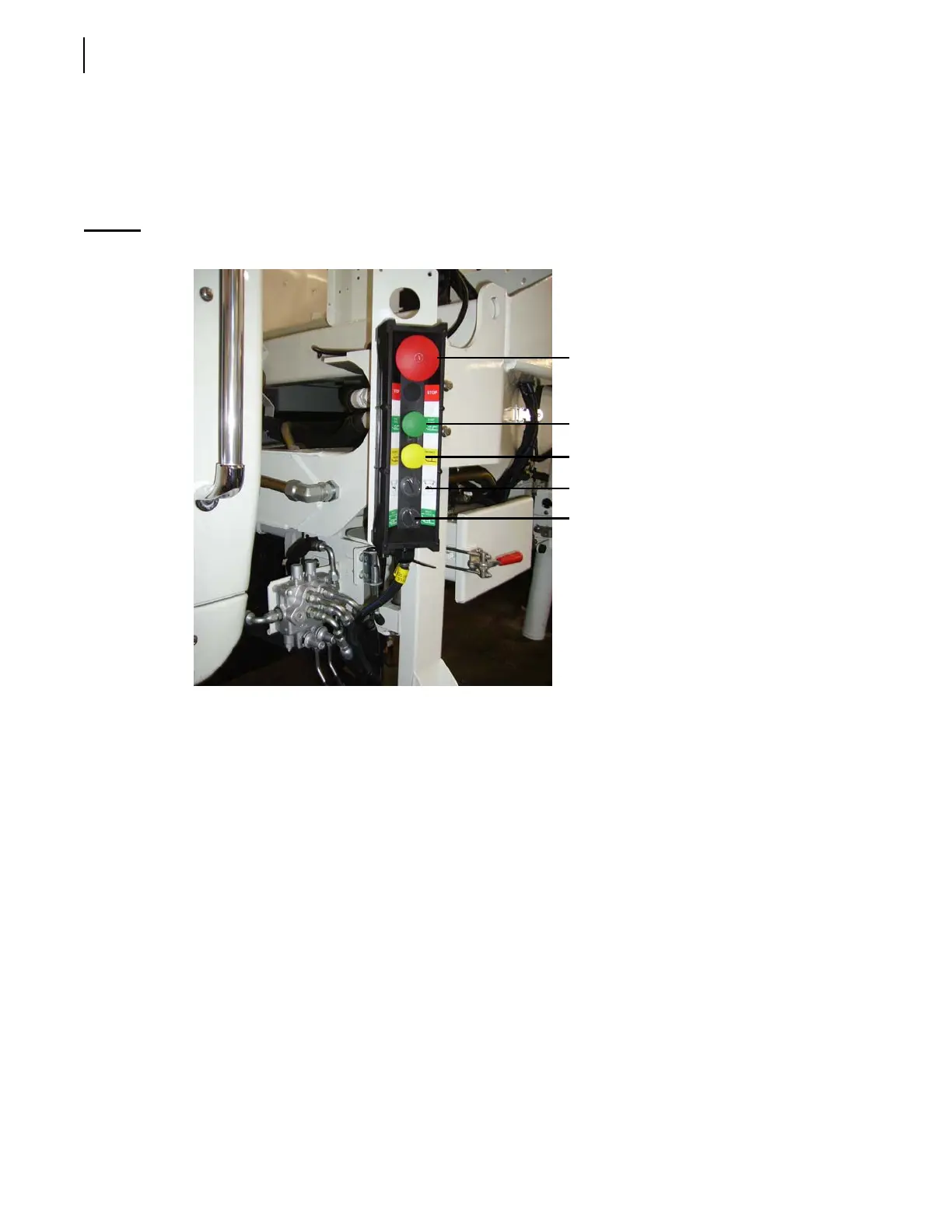

Figure 3-16
Packer control station
Pack push button
Return push button
Speed-up switch
Multi-cycle switch
Stop button
44
46
Table of Contents
Default Chapter
4
Table of Contents
4
Table of Contents
6
AUTOMIZER TM Recycler
6
Introduction
6
Introducing the a
6
Recycler
6
To Contact Labrie Plus
7
Safety
8
Conventions
8
Basic Safety Notions
8
Responsibilities
9
Employer Responsibilities
9
Employee Responsibilities
10
Things to Do
10
Things to Avoid
10
General Precautions
11
Fire
13
Safety Kits
13
Safety Labels Location
13
Labels on Body
13
Labels on Tailgate
20
Labels on Cab Console
21
Labels Inside Cab
22
Safety Features
25
Back up Alarm
25
Body Safety Prop
25
Tailgate Safety Prop
26
Camera System
29
Tailgate Lock Valve
30
Prior to Start up
31
Cleanliness
32
Locking out and Taging out the Vehicle
32
Shutting down the Vehicle
34
Controls and Indicators
36
Cab Console
36
Pump Switch
36
Tailgate Control Switch
38
Hoist Control
39
Light Bar Control Pad
39
Cab Dashboard
40
Parking Brake
40
Work Light Switch
40
Flashing Light Switch
41
Hopper Light Switch
41
Strobe Light Switch
42
Packer Control Station (Inside Cab)
42
Stop Push Button (Red)
42
Pack Push Button (Green)
43
Return Push Button (Yellow)
43
Speed-Up Control Switch
44
Multi-Cycle Control Switch
44
Packer Control Station (on Body)
45
Crusher Panel Levers
46
Swivel Arm-Mounted Levers
46
Operating the AUTOMIZER TM RECYCLER
48
Daily Inspection
48
Approaching the Vehicle
48
Visual Inspection
49
Starting the Vehicle
49
Body Inspection Procedure
49
Hopper Bucket Inspection Procedure
50
Inspection Sheet
53
Loading, Packing and Unloading
54
Planning Your Route
54
Safety While Using the Packing System
54
Packer Description
54
Emergency Actions
55
Hydraulic Oil Spill
55
Someone Is Trapped in Packer System
55
Pack on the Go
55
Standard Unloading Procedure
56
Unloading Corrective Actions
57
Unloading Emergency Actions
58
End-Of-The-Day Cleaning and Inspection
58
Chassis Daily Cleaning
59
Operating the Hopper Bucket
60
Hydraulic Power Supply
60
Crusher Panels
61
Swivel Arm
63
Warning Light and Safety
65
Interlock Safety Systems
65
Loading/Unloading Procedure
66
