GNSS
The LT-3100 system supports outputting of GNSS NMEA 0183 sentences via the LT-3110 Control Unit AUX
(RS-422). The AUX connector is described in detail in Auxiliary (AUX) on page 31. The GNSS output must be
enabled via the web server, under Configuration – GNSS and BAM. The baud rate can be configured to
4.800, 9.600, or 38.400 baud. The output rate of the NMEA 0183 sentences is 1 Hz. Figure 166 below shows
the NMEA 0183 sentences supported by the LT-3100 system.
The GSV sentence is not supported for the 4.800 and 9.600 baud configuration.
NOTE: Changing the GNSS receiver configuration (default: GPS, SBAS, GLONASS) might affect the
NMEA 0183 Talker ID. The Talker ID for the different configurations of the GNSS receiver is
listed in Table 33 on page 125.

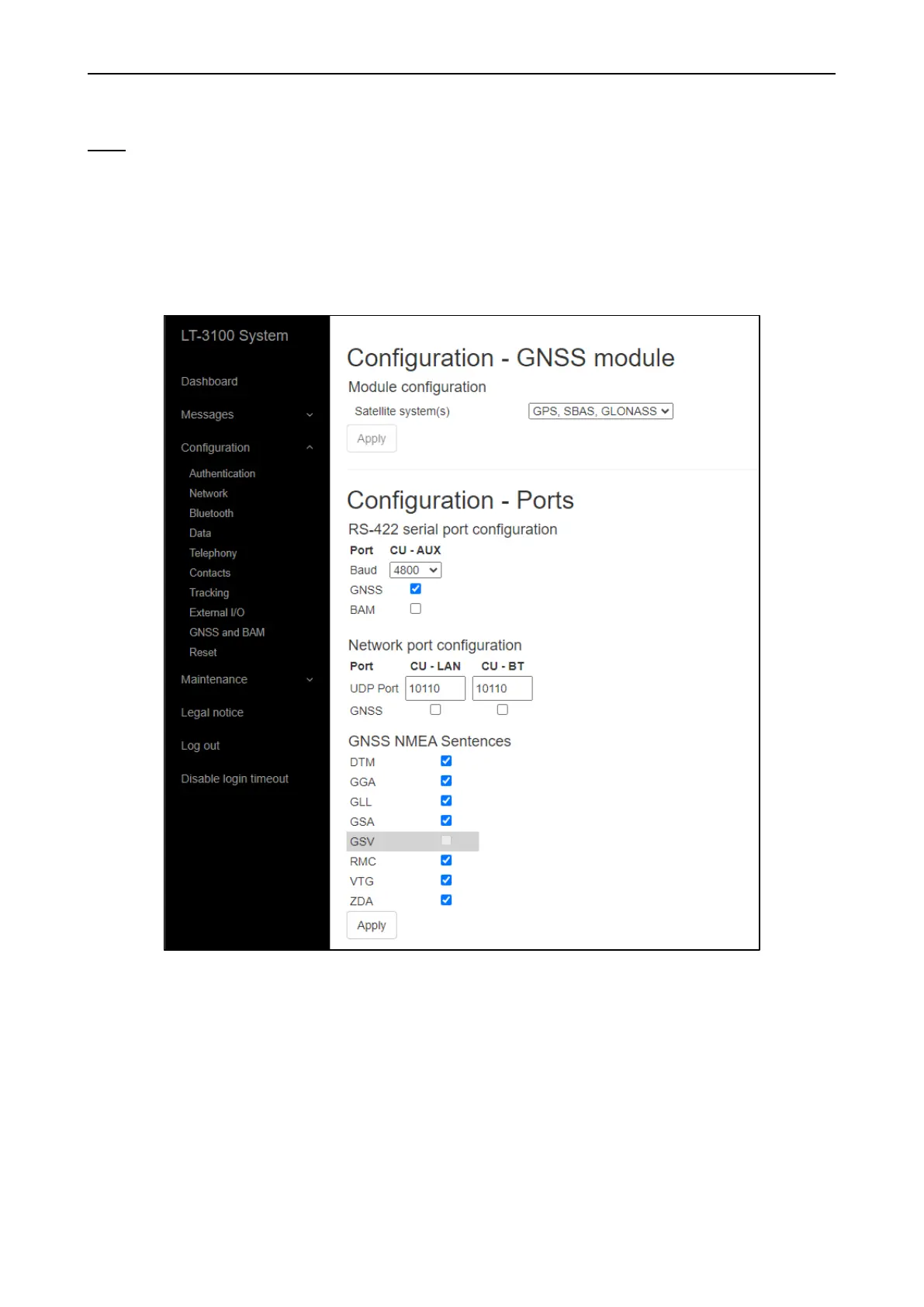

Figure 166: Web server (GNSS - NMEA 0183 sentences)
