LARSON Bass - Power Trim; Tilt Gauge; Voltmeter; Engine Water Temperature Gauge

BOAT FEATURES AND OPTIONS
SECTION
9
© 2003-2018 Ken Cook Co. 9 - 12 l Bass

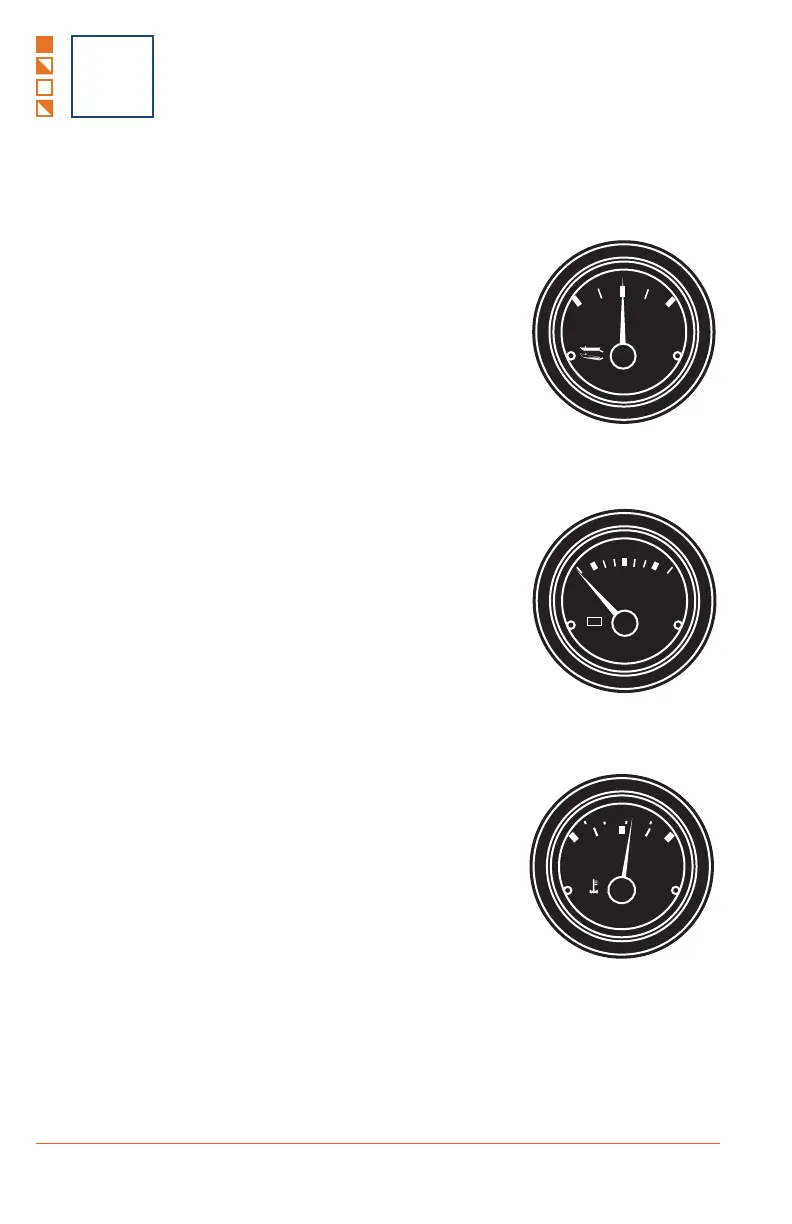

POWER TRIM / TILT GAUGE
The power trim/tilt gauge indicates the angular position of
the lower drive unit and propeller in relation to the
transom of the boat.
VOLTMETER
The voltmeter indicates the voltage of the main cranking
battery in volts DC. See the Engine Operator’s Manual for
the normal operating range.
ENGINE WATER TEMPERATURE GAUGE
The engine water temperature gauge indicates the water/
coolant temperature of the engine cooling system. Most
marine engines use seawater to cool the engine. A
sudden increase in temperature could be an indication of
a blocked cooling passage or a water pump malfunction.
Check the gauge immediately after starting the engine. If
the temperature gauge is high, STOP the engine
immediately and see the Engine Operator’s Manual for
corrective action.
UP
TRIM
DN
KC-0101-A
1610
13
VOLTS
-
+
KC-0102-A
10
15
24
6 5 7 8
TEMP
°F x 10
°C x 10
KC-0104-A
