REMOTE LIVEWELL
Remote livewells operate similarly to manual livewells; the primary difference is the
addition of a remote-controlled livewell drain. The drain valve control is usually
located near the helm or the livewell.
LIVEWELL CONTROLS AND OPERATION
Livewell Pump Switch
The livewell pump switch controls the livewell pump ON/OFF. Some models may
have an automatic setting for use in conjunction with the livewell timer to vary the
ON/OFF time cycle. On models with an automatic setting and no timer, the time
cycle is approximately one minute on and three minutes off.
Most livewell systems draw power from the main engine
cranking battery. The automatic setting, if available, will help conserve battery
power.
Livewell Timer
A livewell timer can continuously vary the OFF time interval. Pump ON interval will
remain at approximately one minute regardless of the OFF time setting. On models
with two livewells, this timer may be wired to control both livewell pumps.
KC-0182-A
AERATION
SPRAY NOZZLE
MAX.
WATER
LEVEL
DRAIN HOLE
OVERFLOW
FITTING
LIVEWELL DRAIN VALVE
LIVEWELL
PUMP
WATER INTAKE SCREEN
BOAT
TRANSOM
BOAT
HULL

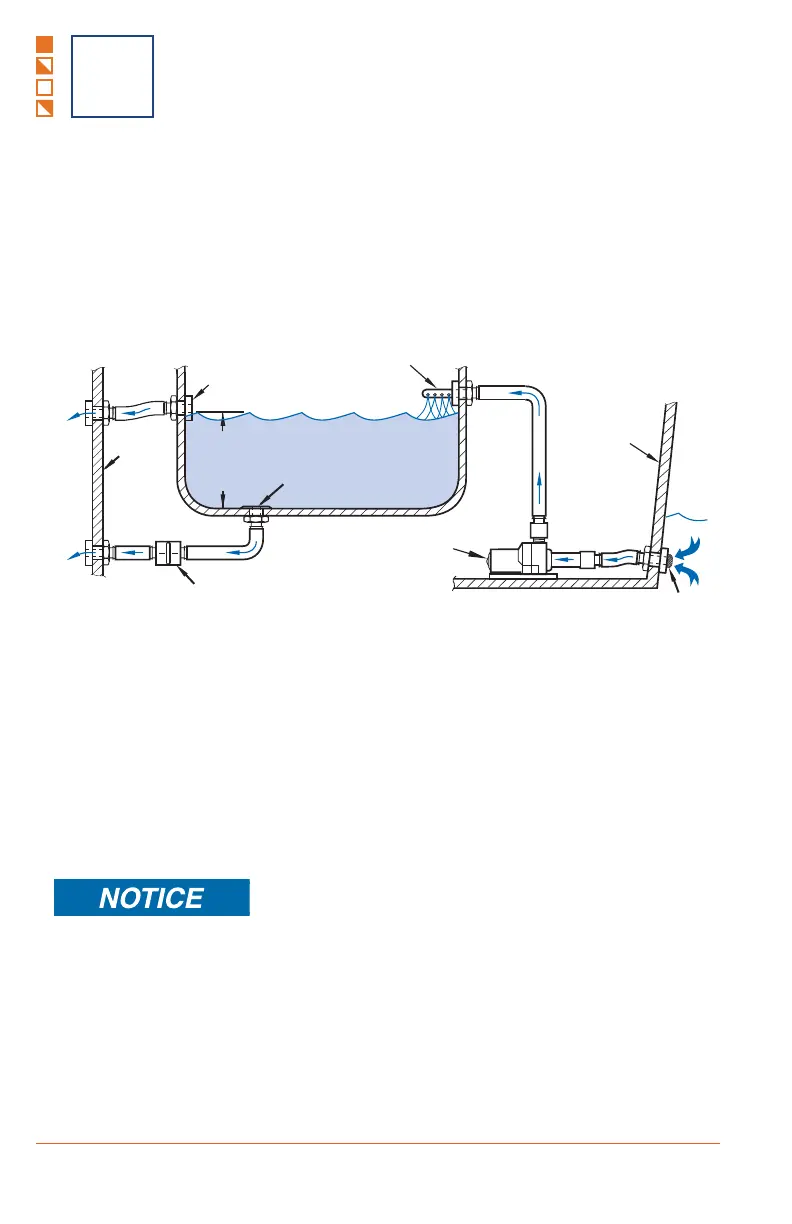

TYPICAL REMOTE LIVEWELL SYSTEM
