Fire Hazard: Never reset a circuit breaker that has
been automatically tripped or replace a fuse that has blown without first
identifying and correcting the cause of the problem. Failure to correct the
cause may result in a fire hazard.
Some applications use circuit breaker switches to provide individual circuit
protection with the ability to manually reset the breaker switch.
To reset a tripped circuit breaker, move the breaker switch to OFF. Identify and
correct any problems with the circuit and unplug all loads connected to it. Wait a
minimum of one minute for the breaker switch to cool and then push the breaker
switch to ON. Turn the breaker switch to OFF immediately if it trips, and consult
qualified personnel.
To replace a fuse, locate the fuse block and the failed fuse. Carefully remove the
fuse without touching other fuses or wires. When possible, use a fuse removal/
installation tool. Some accessories have in-line fuses accessible inside the helm or
near the battery.
Fire Hazard: DO NOT exceed the recommended fuse
sizes or bypass the fuse safeguard. Always install the proper (type and rating)
fuses whenever replacing or changing fuses.

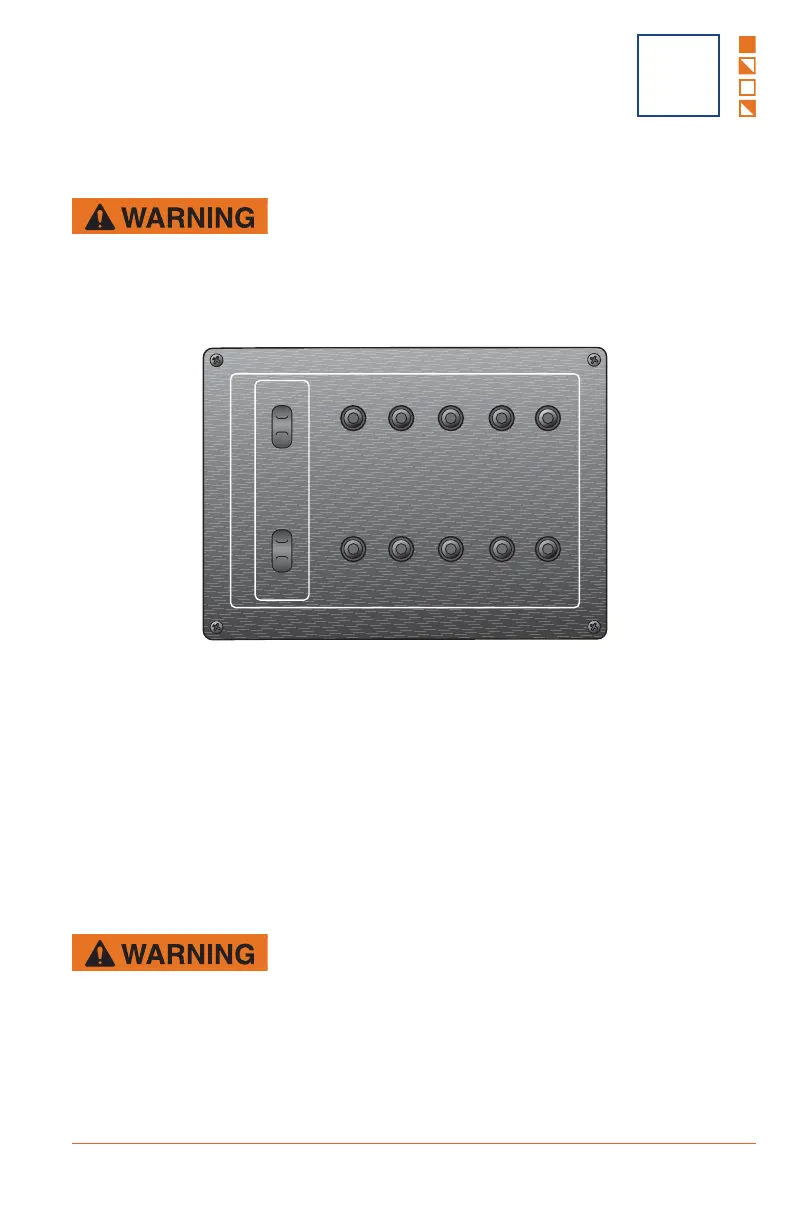

TYPICAL BREAKER / FUSE PANEL
KC-0247C-A
MAIN
30 AMP
AUX
30 AMP
12V NAV CT LTS BILGE ACC
BAITWELL RAW-WTR FRESH-WTR HORN ACC
20 AMP
5 AMP 3 AMP 3 AMP 10 AMP
10 AMP 10 AMP 30 AMP 10 AMP 10 AMP
