GENERAL CARE AND MAINTENANCE
© 2003-2018 Ken Cook Co.
SECTION
10
Bass l 10 - 9
Make sure hydraulic hoses are tight and leak-free. Check cylinder seals for
dampness, which indicates leaking. Check the fluid reservoir monthly and top off if
necessary. See the steering system manufacturer’s information for more details.
KC-0171C-B
HELM PUMP/
RESERVOIR
INSPECT
CONNECTIONS
AT PUMP
CHECK FILL PLUG
AND FLUID LEVEL
INSPECT
CYLINDER
SEALS

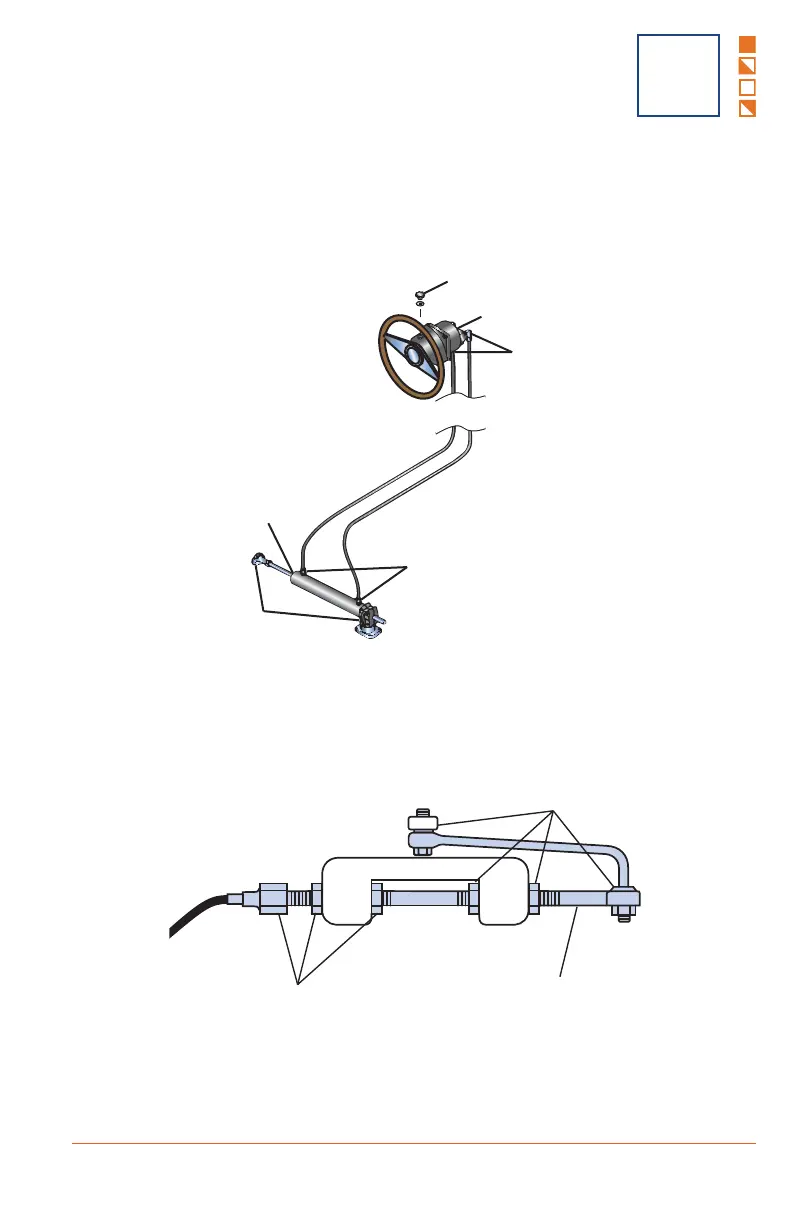

TYPICAL HYDRAULIC STEERING SYSTEM
INSPECT
HARDWARE
INSPECT FITTINGS
AT CYLINDER
KC-0158-A
INSPECT
HARDWARE
INSPECT
HARDWARE
STEERING
BAR
TYPICAL MECHANICAL
OUTBOARD ENGINE STEERING LINK
