12
LAUNCH
X-431 PADII
User's Manual

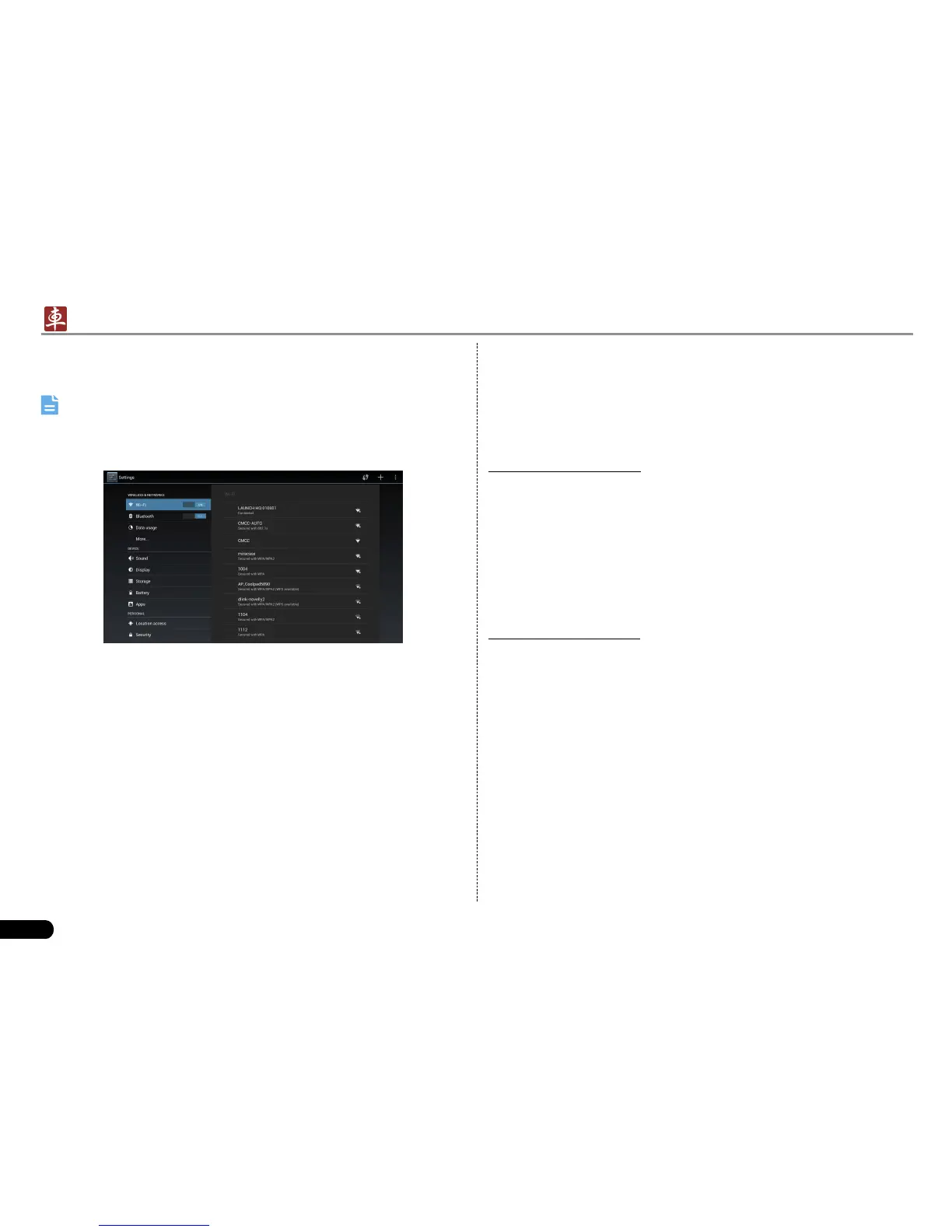

4 Wi-Fi Setting
Note: Once Wi-Fi is set as ON, X-431 PADII will consume more
power. While Wi-Fi keeps unused, please set it off to save power.
On the main menu screen, tap Settings > Wi-Fi.1.
Fig. 4-1
Tap or slide the Wi-Fi switch to ON, X-431 PADII starts searching 2.
all available wireless LANs.
Choose the desired Wi-Fi,3.
If the network you chose is open, you can connect on it directly;•
If the selected network is encrypted and secured with WPA, you •
have to input the right access password to connect.
Once it is connected successfully, tap the Wi-Fi from the list to view its
name, link speed, security type, IP address etc.
When X-431 PADII is in range of the WLAN, it will connect to the
previously linked network automatically.
5 How to diagnose
5.1 Connections
5.1.1 Preparation
Normal testing conditions
Turn on the vehicle power supply.•
Vehicle battery voltage range should be 9-14V and working voltage •
of X-431 PADII is 5V.
Throttle should be closed at its close position. •
Ignition timing and idle speed should be within specified range; •
water and transmission oil temperature are within normal working
range (water temperature is 90-110
℃
and transmission oil
temperature is 50-80
℃
).
Select testing connectors
If X-431 PADII is testing vehicles equipped with universal OBD II 16
PIN diagnostic socket, please use the included diagnostic connector.
(For vehicles with non-OBD II 16 PIN diagnostic socket, a non-16 PIN
connector is required.)
5.1.2 DLC Location
The DLC (Data Link Connector or Diagnostic Link Connector) is the
standardized 16-cavity connector where diagnostic code readers
interface with the vehicle’s on-board computer. The DLC is usually
located 12 inches from the center of the instrument panel (dash), under
or around the driver’s side for most vehicles. If Data Link Connector is
not located under dashboard, a label should be there telling location.
For some Asian and European vehicles, the DLC is located behind the
ashtray and the ashtray must be removed to access the connector. If
the DLC cannot be found, refer to the vehicle’s service manual for the
