X-431 PADII User's Manual
5
software, testing connectors) may vary. Please consult from the local
agency or check the package list supplied with X-431 PADII together.
Table 2-5 -- X-431 PADII common accessories and descriptions
No. Name Qt. Picture
1 X-431 PADII Tablet 1
2
Diagnostic
Connector
1
(To connect to vehicle’s DLC.)
3 Docking Station 1
4 Micro USB Cable 1
(To connect on PC for data
transmission or upgrade
diagnostic connector)
5
Cigarette Lighter
Cable
1
(To obtain power supply from
vehicle’s cigarette lighter )
2.3 Diagnostic Connector
1
2
3
4

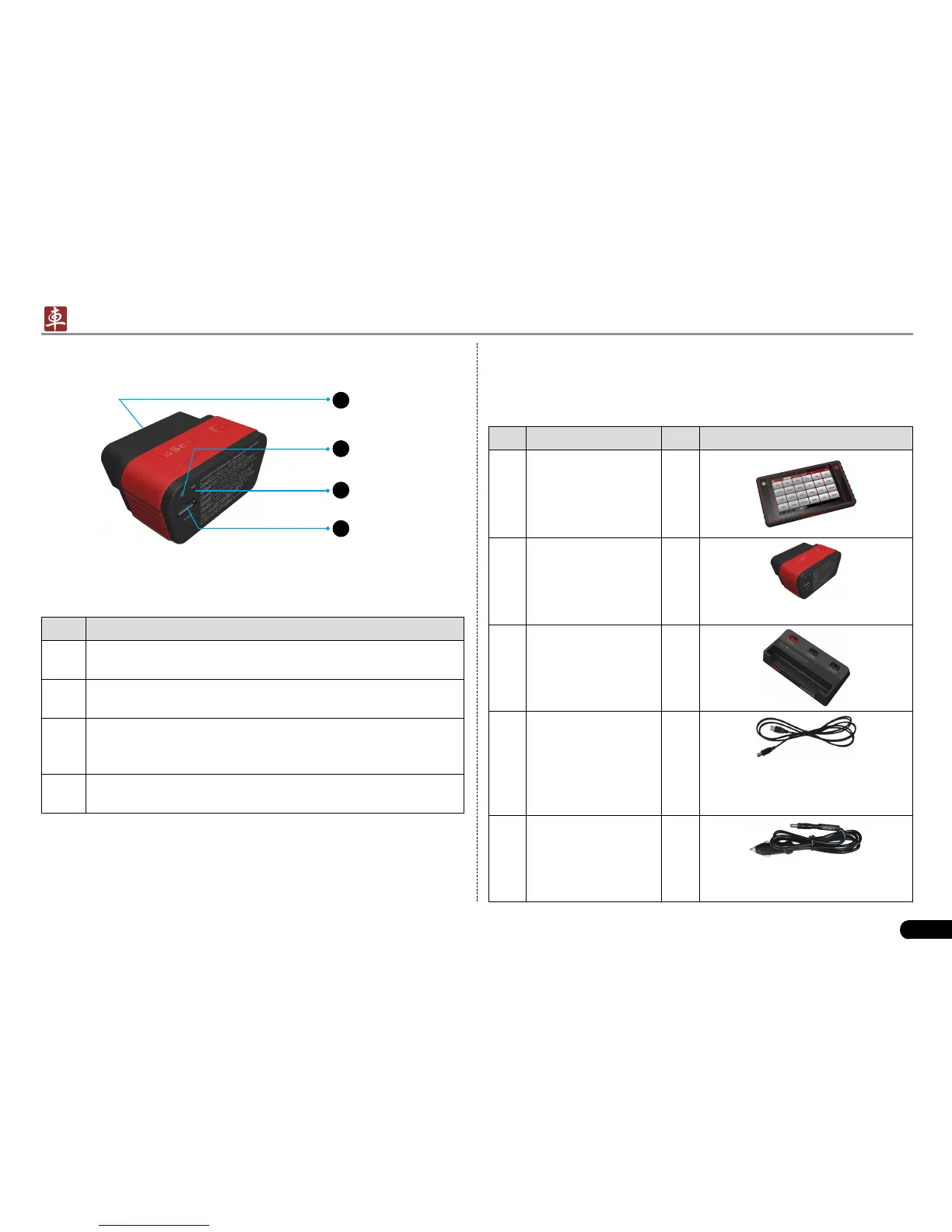

Fig. 2-7 Diagnostic Connector
Table 2-4 formulates ports and indicators of diagnostic connector:
No. Name & Descriptions
1 OBD-16 Diagnostic Connector -- To connect on vehicle’s
OBD2 DLC.
2 Power Indicator -- It lights up while the connector is
plugged into the vehicle’s DLC.
3 Communication Indicator -- It will ash once the
connector is communicating with X-431 PADII or it is being
reset.
4 Micro USB Port -- To connect on PC for data transmission
or upgrade via USB cable.
2.4 X-431 PADII Accessory Checklist
Common accessories for each X-431 PADII are same, but for different
destinations, the accessories of X-431 PADII (such as diagnostic
