Sentinel Plus Press Brake Guarding System Operation Manual LS-CS-M-073
Page 35
Original Language Version: 1.04 Released: 19/07/2017
When contacting Lazer Safe Customer Support or your local dealer, please provide the
system software version information from the System Info menu.
MACHINE
INFO
SYSTEM
INFO

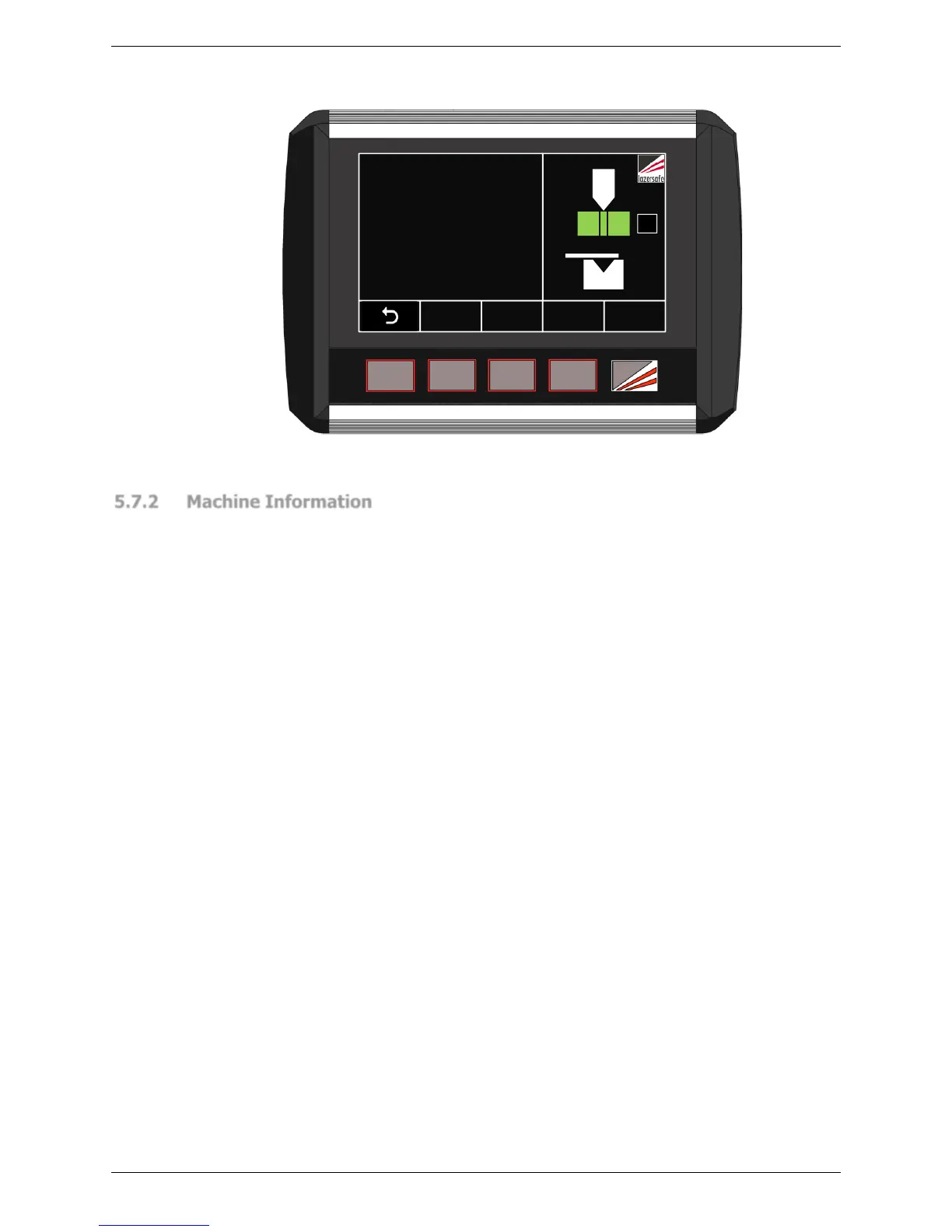

SYSTEM INFORMATION
0000
Comm status Connected
HMI type Sentinel Plus
HMI version HMI v1.09.00
Kernel version Ax2.12.00
Application hmi__104
FPGA version
Approx. slow point 2mm
MSD 13mm
BLR version
BL
Table 5-5: Info Screen, System Information
5.7.2 Machine Information
Machine Information is displayed by pressing the MACHINE INFO menu button in the Info
screen.
• Stop Time. Measured by the PGS-3 each time the beam is stopped.
• Stop Distance. Measured by the PGS-3 each time the beam is stopped.
• Stop Time Limit. The maximum allowable stopping time for the machine, and only
applies when light curtain guarding is active (stopping performance is normally
indicated by the stopping distance). If this limit is exceeded, an emergency stop is
initiated, and an overrun test is performed.
