8 User and Supervisor Menus
The Menu screen gives access to the menus that are used to configure the way that the
Sentinel Plus system operates. There are three levels of access to the menu system; User,
Supervisor and System. To access the Menu screen press the MENU button in the Main
screen.
The User level menu does not require an access code, and can be accessed by anyone
operating the machine.
The Supervisor level menu requires an access code. This menu contains parameters that
configure how the Sentinel Plus system and the User Interface Panel operate. This menu
should only be accessible to suitably trained and authorized personnel.
The System menu requires an access code. (This is the highest level access code, and can
also be used to access the Supervisor level menu). This menu contains machine/site
specific parameters that are set during the installation of the Sentinel Plus Press Brake
Guarding System. The System menu is not described in this document.
a
SUPERVISOR
M EN U
USER
M EN U
SYSTEM
M EN U
USER
GUIDES
Make a selection

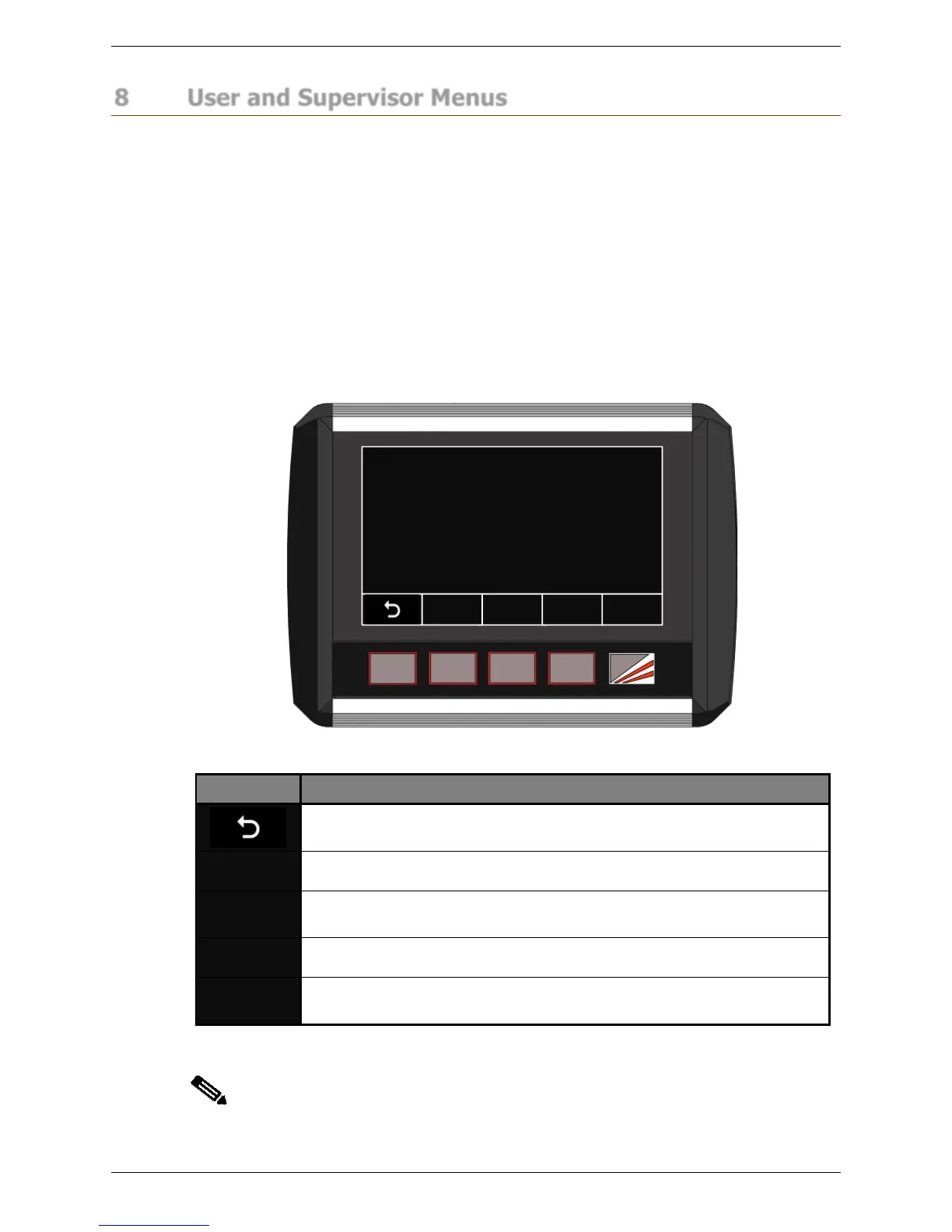

Figure 8-1: Menu Screen
Label
Button Function
This leaves the Menu screen and returns to the Main screen. See
Figure 5-2 for an overview of the menu system.
USER
MENU
This accesses the User menu. No access code is required.
SUPERVISOR
MENU
This accesses the Supervisor menu. An access level of Supervisor or
System is required.
SYSTEM
MENU
This accesses the System menu. An access level of System is required.
USER
GUIDES
This accesses instructional guides on the operation of the Sentinel Plus
system. No access code is required.
Table 8-1: Menu Screen Buttons
Note:
When any menu screen is selected, the safety application running on the PGS-3
turns off the enable outputs, and the machine cannot run. If the foot pedal is
pressed, the LCD display on the PGS-3 will show the Condition Code 40A1.
