Zoom, Mathematics and Math Setup

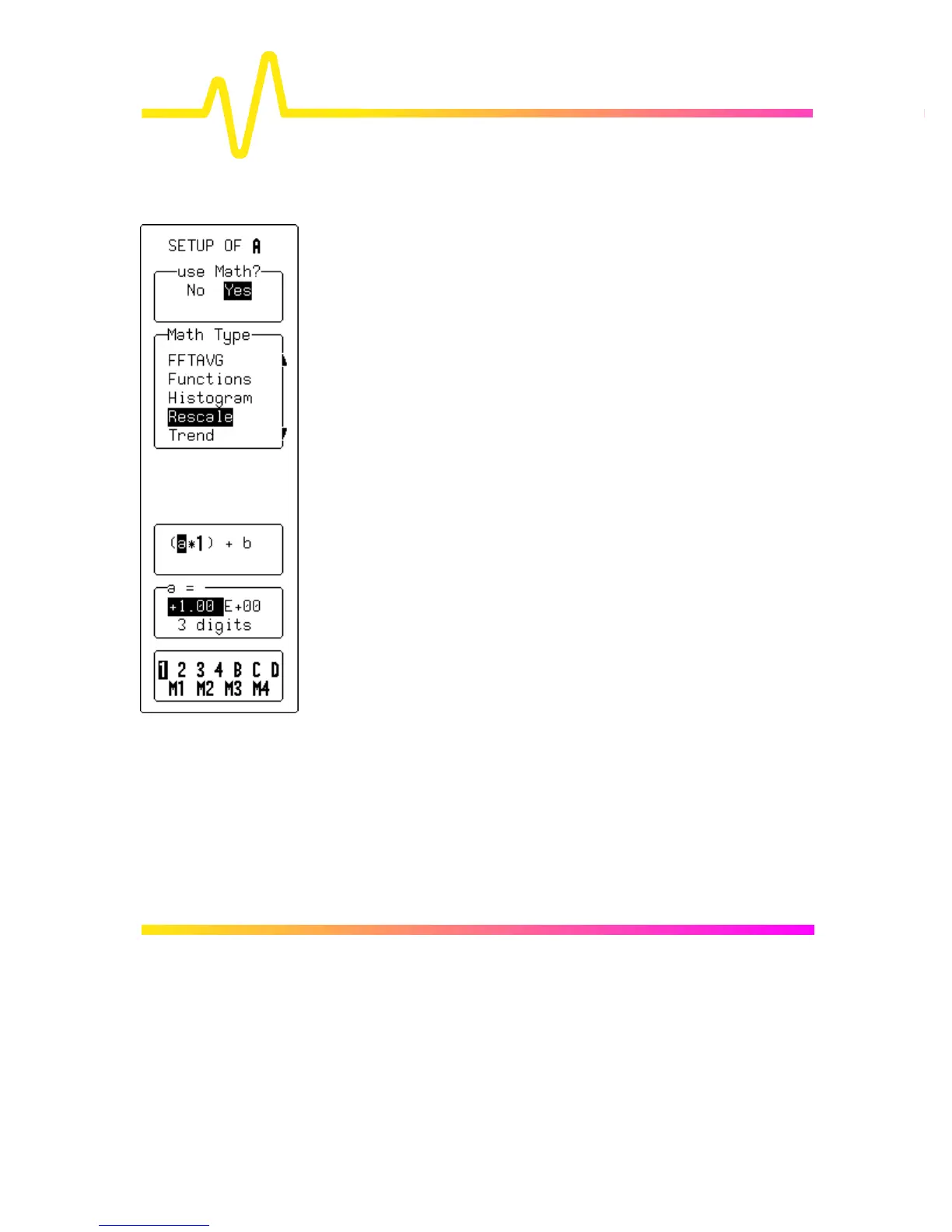

SETUP — Rescale — for selecting a waveform and adjusting a, the multiplication
factor, and b, the additive constant, in:
(a ∗ waveform) + b,
where both constants can have values ranging between −10
15
and
+10
15
.
use Math?
To choose a math function.
Math Type
For selecting “Rescale”.
(a ∗ 1) + b
To select “a” or “b”.
a = or b =
The corresponding menu button for this menu highlights the
mantissa, the exponent, or the number of digits, while the
associated knob changes the highlighted value.
1 2 3 4 B C D
M1 M2 M3 M4
To select the source trace (four-channel menu shown).
To Next Page
