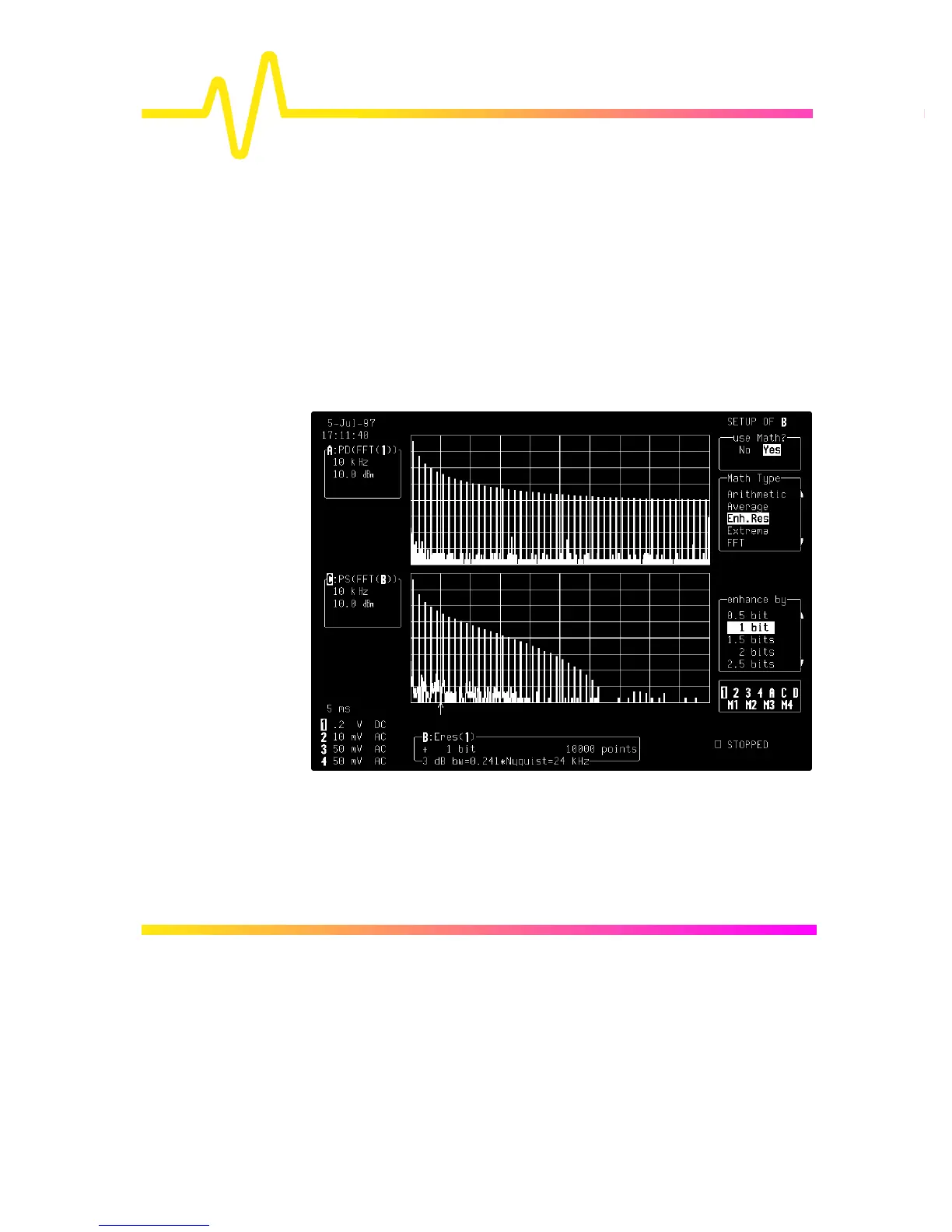

Low-pass Filtering This screen shows the spectrum of a square signal before (top grid)
and after (bottom grid) enhanced resolution processing. The result
clearly illustrates how the filter rejects high-frequency components
from the signal. The higher the bit enhancement, the lower the
resulting bandwidth.
