B–5
Enhanced Resolution
Increasing Vertical
Resolution

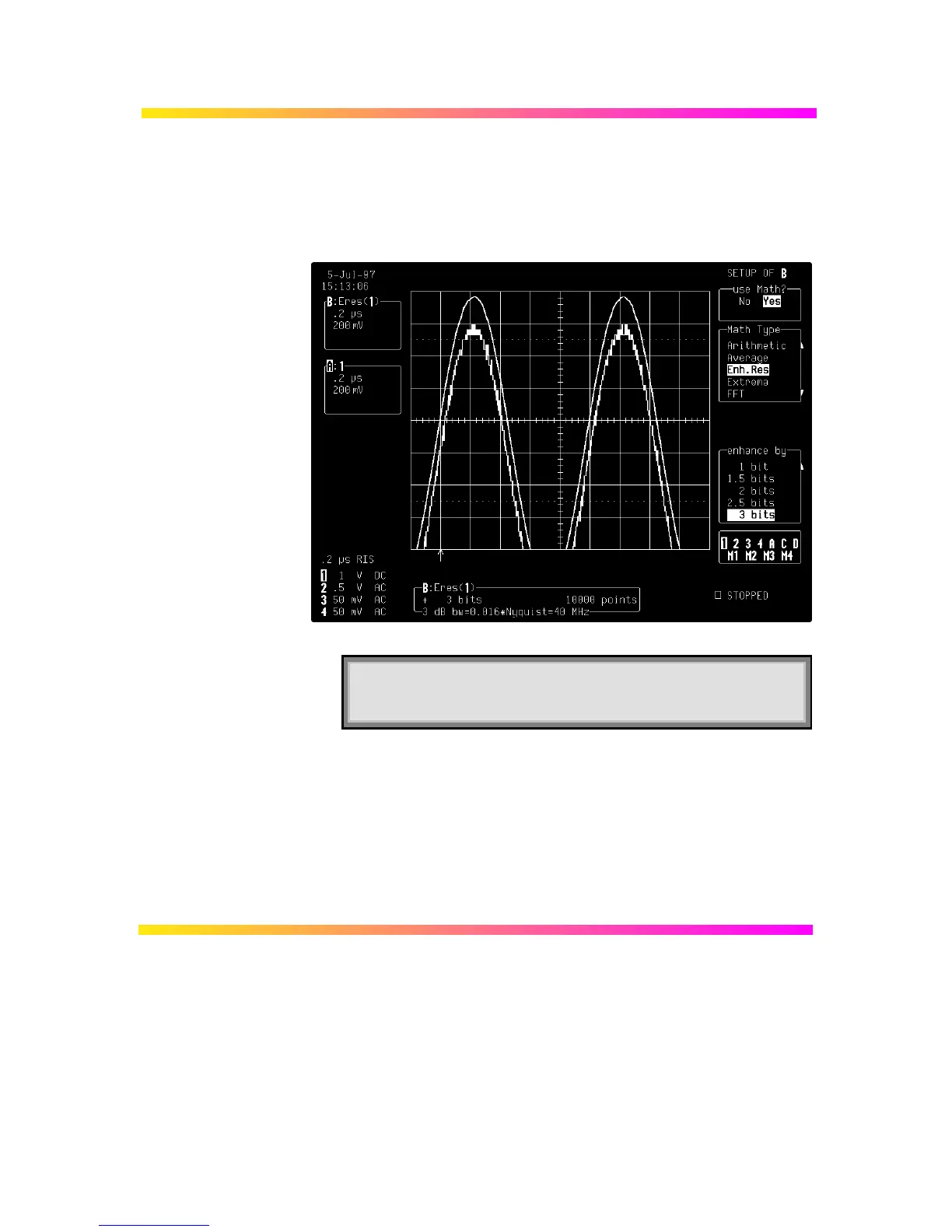

In this example the bottom trace has been significantly enhanced by
a three-bit enhanced resolution function.
Note: The original signal being highly oversampled, the
resulting bandwidth is still high enough for the signal not to
be distorted.
