8–14
Triggers and When to Use Them
Interval Smaller For this Interval Trigger, generated on a time interval smaller than
the one selected, a maximum interval between the two edges of the
same slope is chosen (Fig. 8–10). The trigger is generated on the
second edge if it occurs within the selected interval. The timing for
the interval is initialized and restarted whenever the selected edge
occurs. Intervals of between 10 ns and 20 s can be selected.

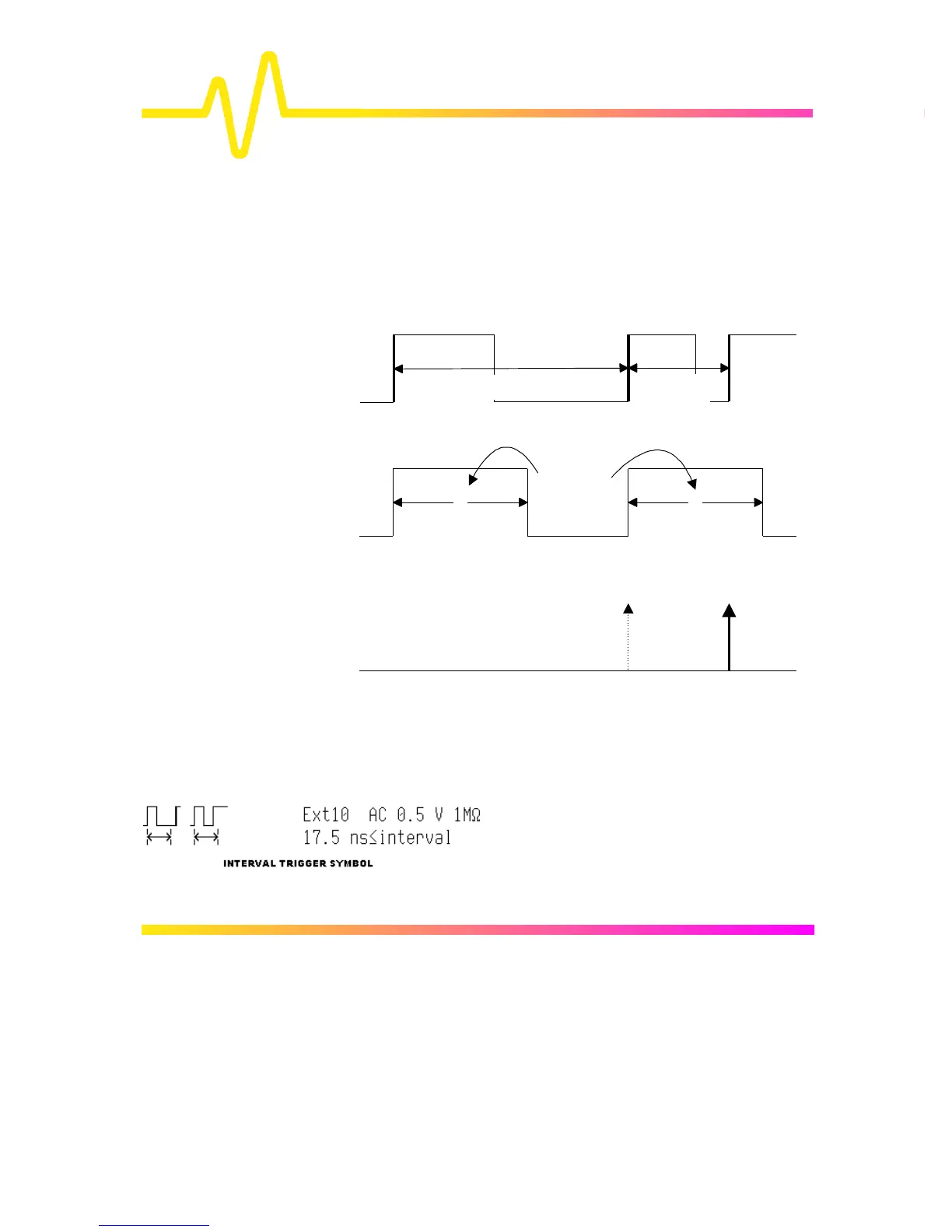

Figure 8–10. Interval Trigger: Trigger if the interval is smaller than the
selected interval.
Interval width
Generated Trigger
Interval
width
T
Selected
interval
Trigger Source: Positive Slope
Trigger can occur
T
