8–15
Interval Larger For this Interval Trigger, generated on an interval larger than the
one selected, a minimum interval between the two edges of the
same slope is chosen (Fig. 8–11). The trigger is generated on
the second edge if it occurs after the selected interval. The
timing for the interval is initialized and restarted whenever the
selected edge occurs. Intervals of between 10 ns and 20 s can
be selected.

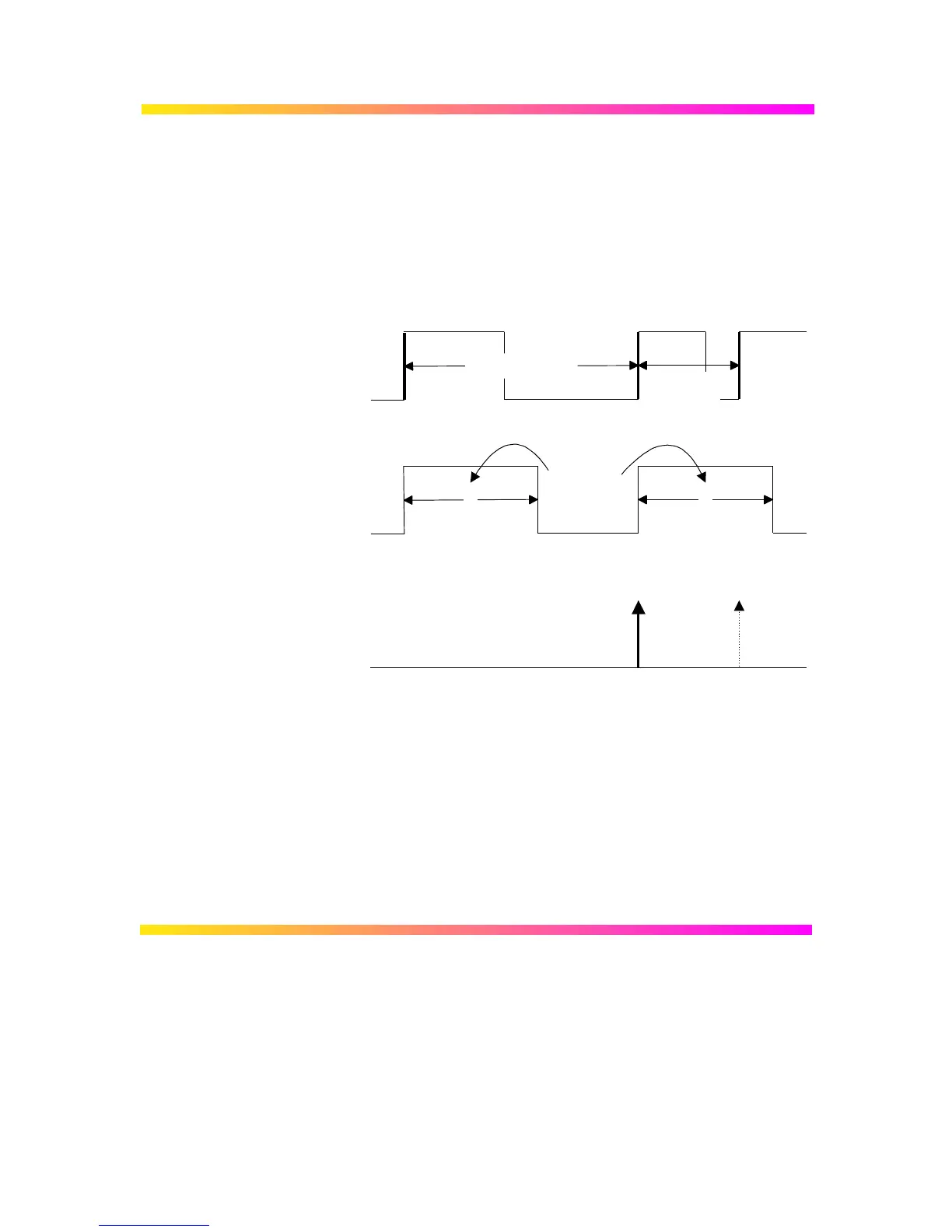

Figure 8–11. Interval Trigger: Trigger if the interval is greater than
the selected width.
Interval width
Generated Trigger
Interval
width
T
Selected
interval
Trigger Source: Positive Slope
Trigger can occur
T
