LeCroy 9300C Series User Manual

8–37

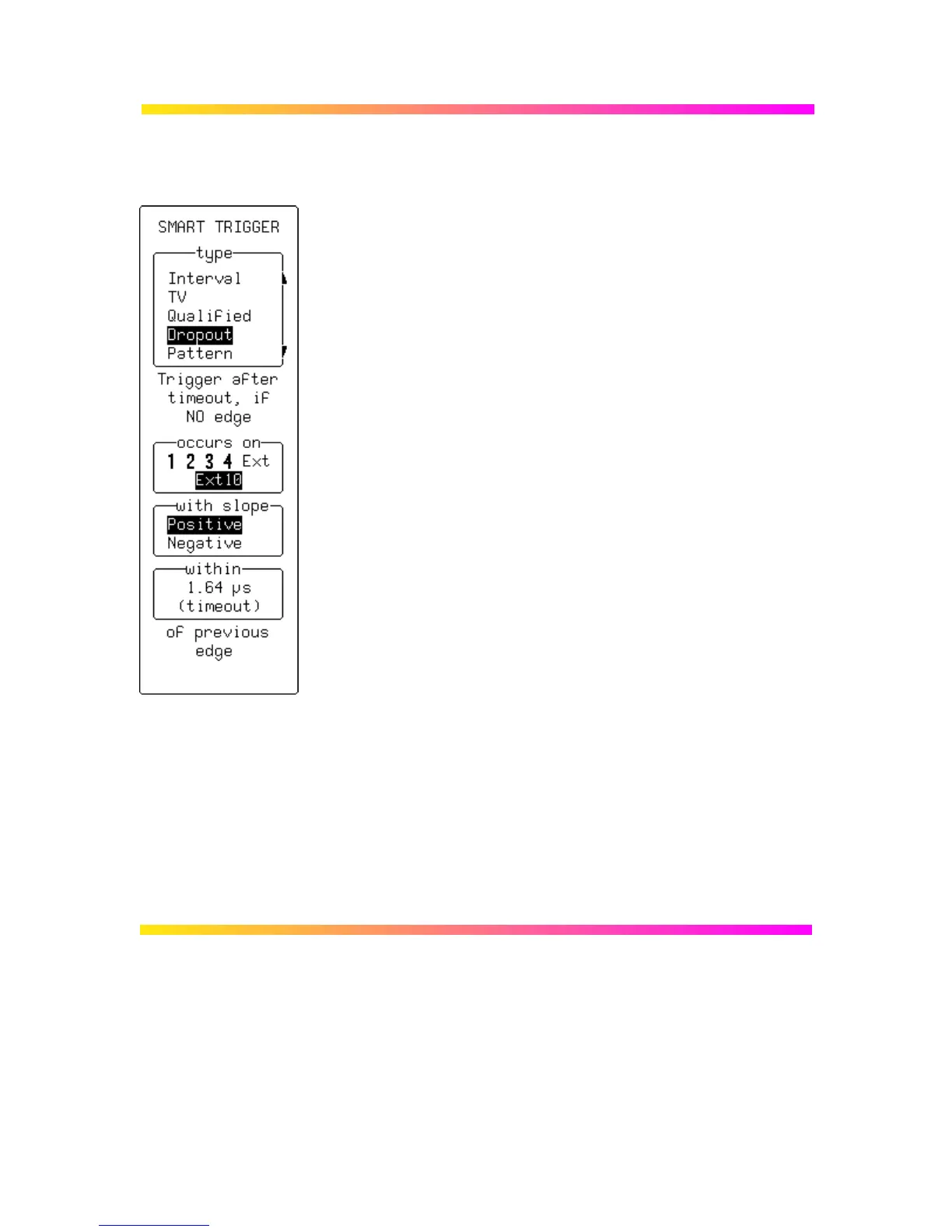

SMART TRIGGER — Dropout
type
To select “Dropout”.
trigger after timeout, if NO edge occurs on
For selecting the trigger source (four-channel menu shown).
with slope
To define whether the measurement starts on a “Positive” or
“Negative” slope of the trigger signal.
Within… of previous edge
For defining the time-out value in the range 25 ns–20 s.
