10–13

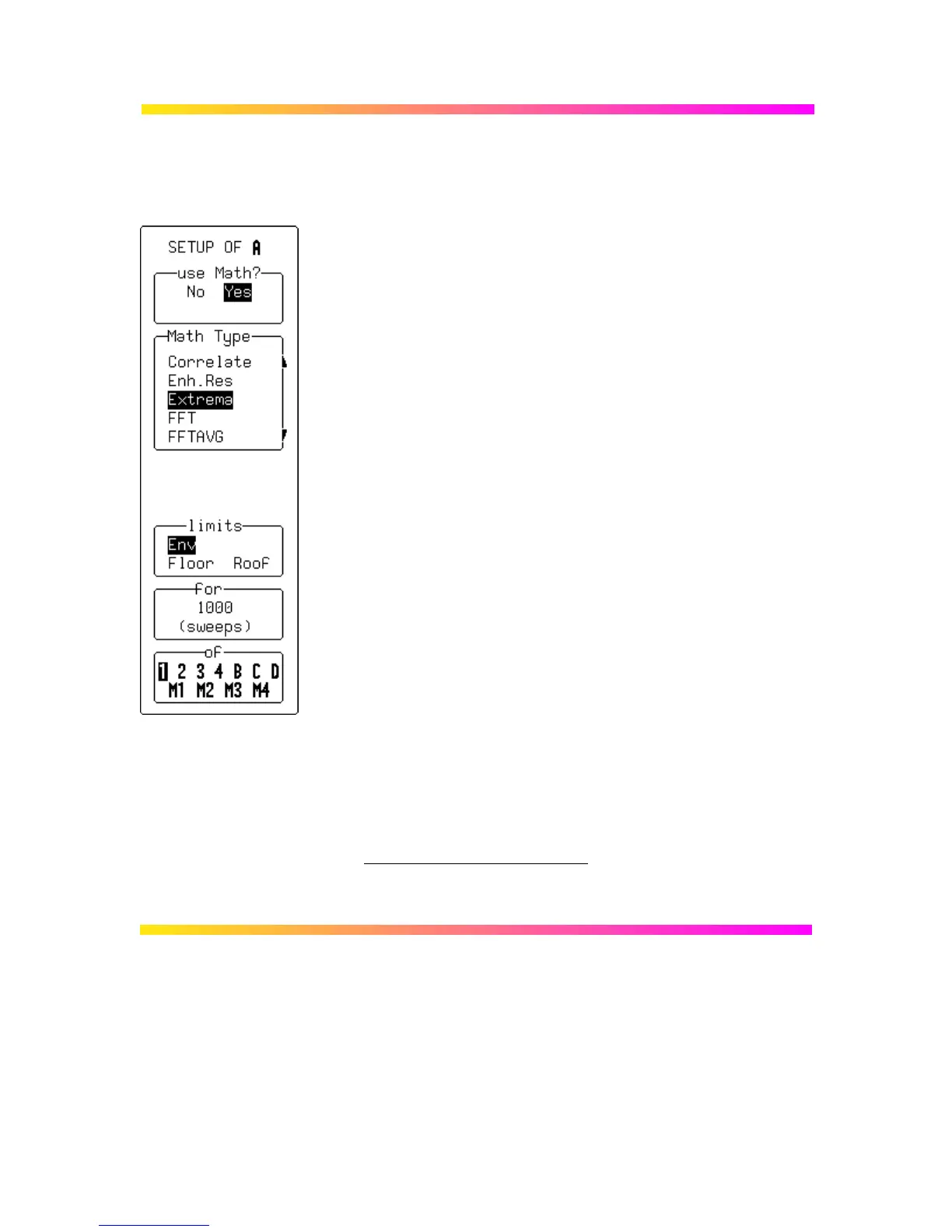

Zoom and Math Setup Menus
SETUP Extrema
†
— used for acquiring a trace envelope over many acquisitions (see
also page 10–4).
use Math?
To choose a math function.
Math Type
To select “Extrema”.
limits
To select either “Envelope”, “Floor” or “Roof”. Floor shows only the
lower, and Roof only the upper part of the envelope. Changing the
limits does not force the analysis to start again.
for
For selecting the number of sweeps.
of
To select the source trace (four-channel menu shown).
†
Only with WP01 Math package. See “Signal Analysis” in
Appendix A for specifications.
