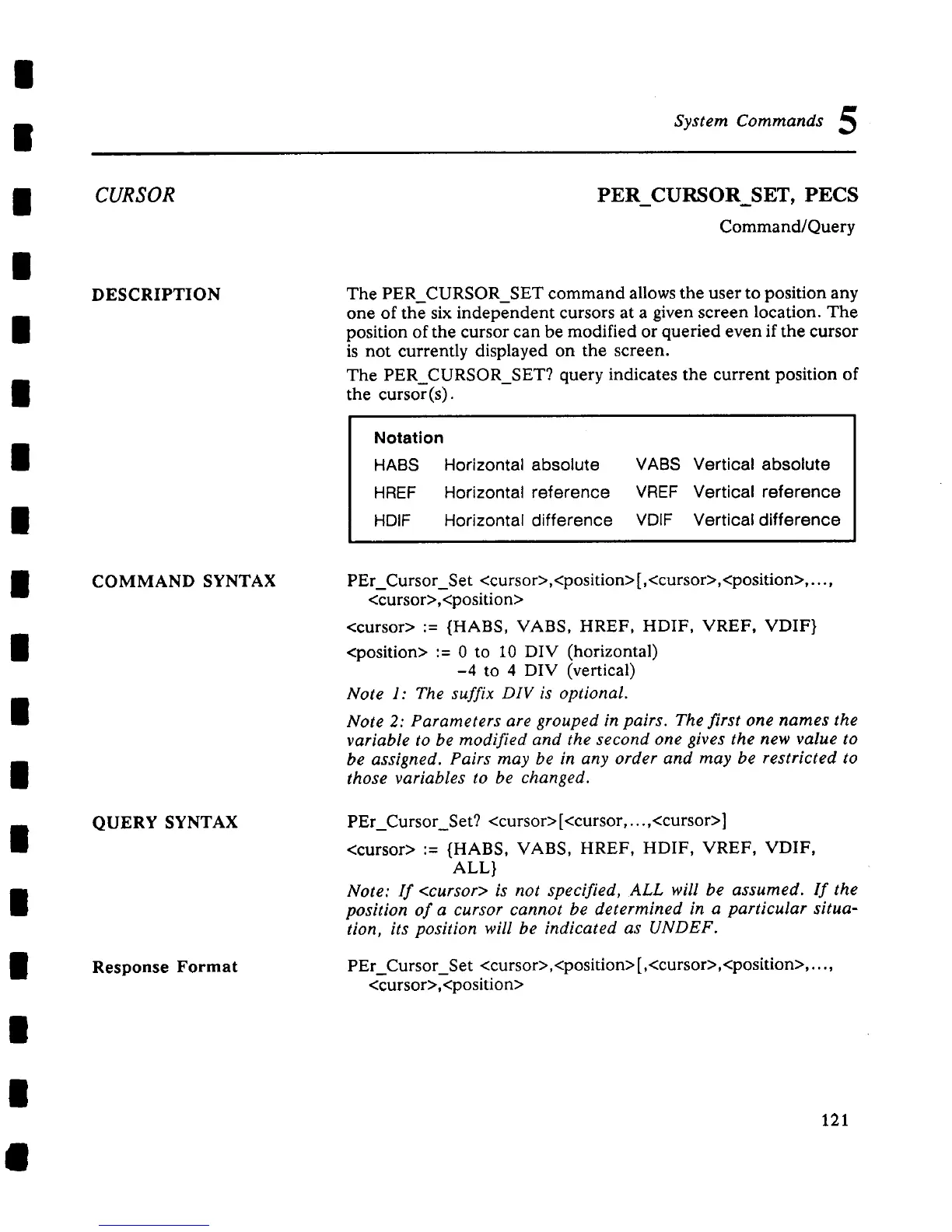

LeCroy 9410 - Page 127

System Commands 5
CURSOR PER_CURSOR_SET, PECS
Command/Query
DESCRIPTION
The PER_CURSOR_SET command allows the user to position any
one of the six independent cursors at a given screen location. The
position of the cursor can be modified or queried even if the cursor
is not currently displayed on the screen.
The PER_CURSOR_SET? query indicates the current position of
the cursor(s).
Notation
HABS Horizontal absolute
HREF Horizontal reference
HDIF Horizontal difference
VABS Vertical absolute
VREF Vertical reference
VDIF Vertical difference
COMMAND SYNTAX
QUERY SYNTAX
Response Format
PEr_Cursor_Set <cursor>,<position> [,<cursor>,<position> .....
<cursor>,<position>
<cursor> := {HABS, VABS, HREF, HDIF, VREF, VDIF}
<position> := 0 to 10 DIV (horizontal)
-4 to 4 DIV (vertical)
Note 1: The suffix DIV is optional.
Note 2: Parameters are grouped in pairs. The first one names the
variable to be modified and the second one gives the new value to
be assigned. Pairs may be in any order and may be restricted to
those variables to be changed.
PEr_Cursor Set? <cursor>[<cursor .....
<cursor>]
<cursor> := {HABS, VABS, HREF, HDIF, VREF, VDIF,
ALL}
Note: If <cursor> is not specified, ALL will be assumed. If the
position of a cursor cannot be determined in a particular situa-
tion, its position will be indicated as UNDEF.
PEr Cursor_Set <cursor>,<position>[,<cursor>,<position> .....
<’cursor>,<position>
121
