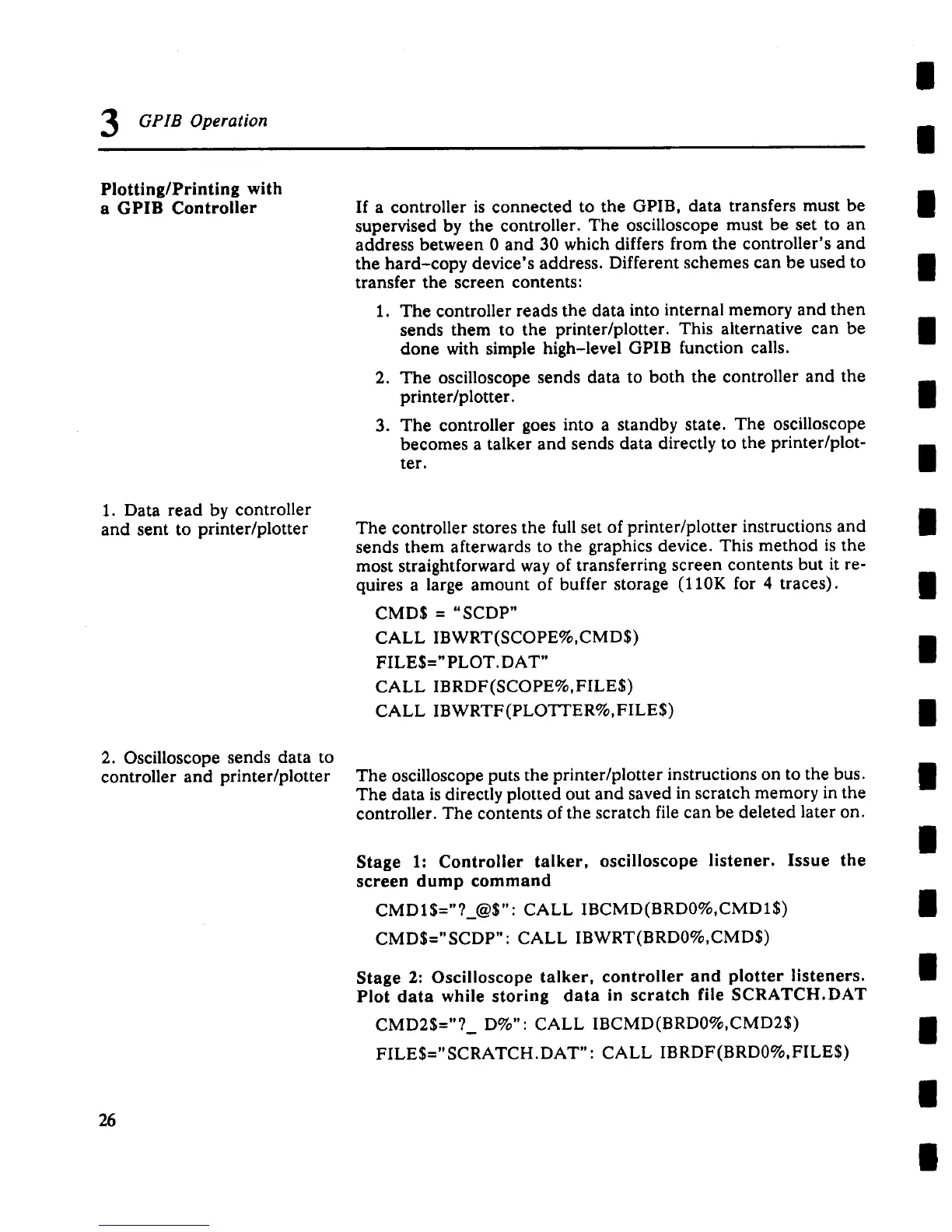

GPIB Operation

Plotting/Printing with

a GPIB Controller

1. Data read by controller

and sent to printer/plotter

2. Oscilloscope sends data to

controller and printer/plotter

If a controller is connected to the GPIB, data transfers must be

supervised by the controller. The oscilloscope must be set to an

address between 0 and 30 which differs from the controller’s and

the hard-copy device’s address. Different schemes can be used to

transfer the screen contents:

1. The controller reads the data into internal memory and then

sends them to the printer/plotter. This alternative can be

done with simple high-level GPIB function calls.

2. The oscilloscope sends data to both the controller and the

printer/plotter.

3. The controller goes into a standby state. The oscilloscope

becomes a talker and sends data directly to the printer/plot-

ter.

The controller stores the full set of printer/plotter instructions and

sends them afterwards to the graphics device. This method is the

most straightforward way of transferring screen contents but it re-

quires a large amount of buffer storage (110K for 4 traces).

CMD$ = "SCDP"

CALL IBWRT(SCOPE%,CMD$)

FILE$="PLOT.DAT"

CALL IBRDF(SCOPE%,FILE$)

CALL IBWRTF (PLOTTER%,FILE$)

The oscilloscope puts the printer/plotter instructions on to the bus.

The data is directly plotted out and saved in scratch memory in the

controller. The contents of the scratch file can be deleted later on.

Stage 1: Controller talker, oscilloscope listener. Issue the

screen dump command

CMDI$="?_@$": CALL IBCMD(BRD0%,CMDI$)

CMD$="SCDP": CALL IBWRT(BRD0%,CMD$)

Stage 2: Oscilloscope talker, controller and plotter listeners.

Plot data while storing data in scratch file SCRATCH.DAT

CMD2$="?_ D%": CALL IBCMD(BRD0%,CMD2$)

FILE$="SCRATCH.DAT": CALL IBRDF(BRD0%,FILE$)
