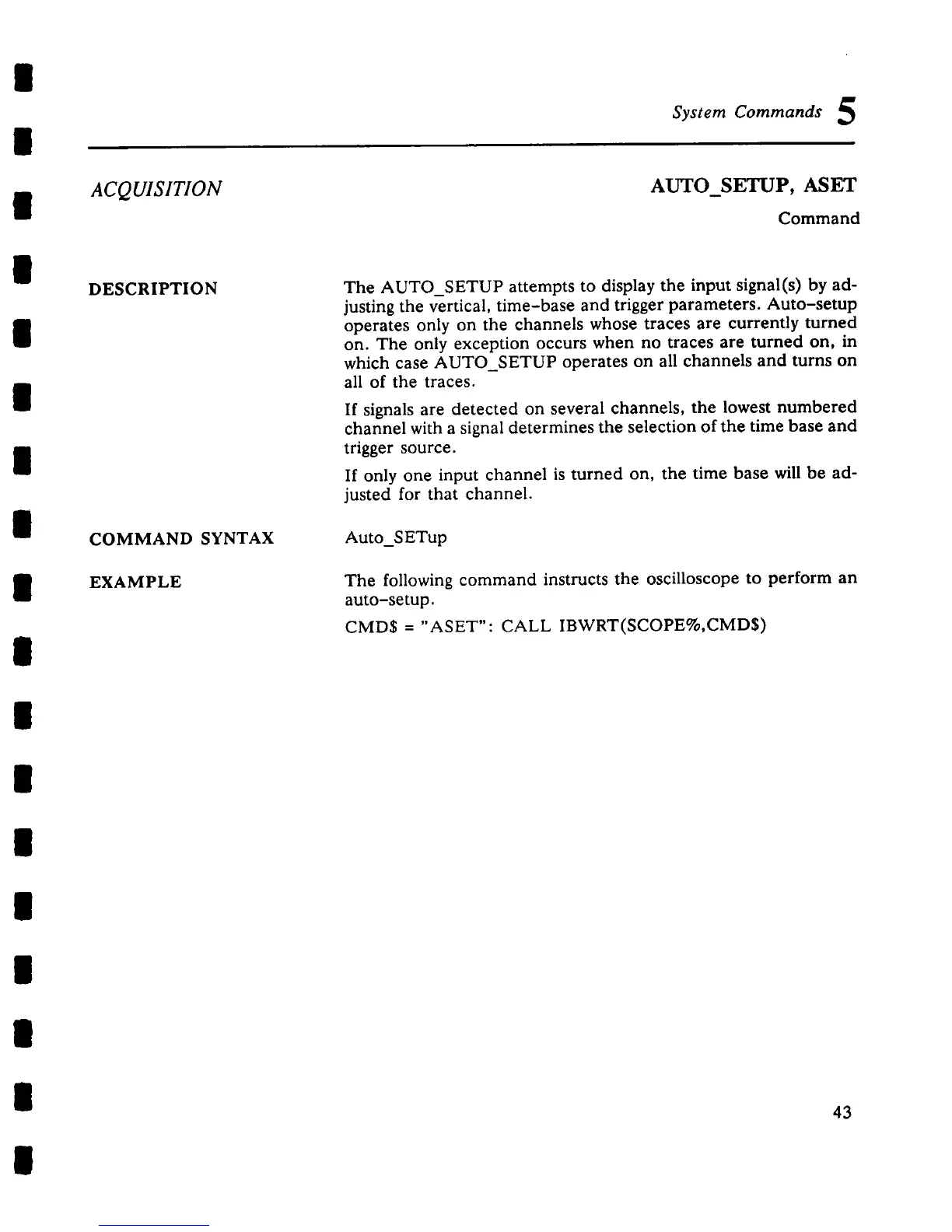

System Commands 5
ACQUISITION
AUTO_SETUP, ASET
Command
DESCRIPTION
COMMAND SYNTAX
EXAMPLE
The AUTO_SETUP attempts to display the input signal(s) by ad-
justing the vertical, time-base and trigger parameters. Auto-setup
operates only on the channels whose traces are currently turned
on. The only exception occurs when no traces are turned on, in
which case AUTO_SETUP operates on all channels and turns on
all of the traces.
If signals are detected on several channels, the lowest numbered
channel with a signal determines the selection of the time base and
trigger source.
If only one input channel is turned on, the time base will be ad-
justed for that channel.
Auto_SETup
The following command instructs the oscilloscope to perform an
auto-setup.
CMD$ = "ASET": CALL IBWRT(SCOPE%,CMD$)
43
