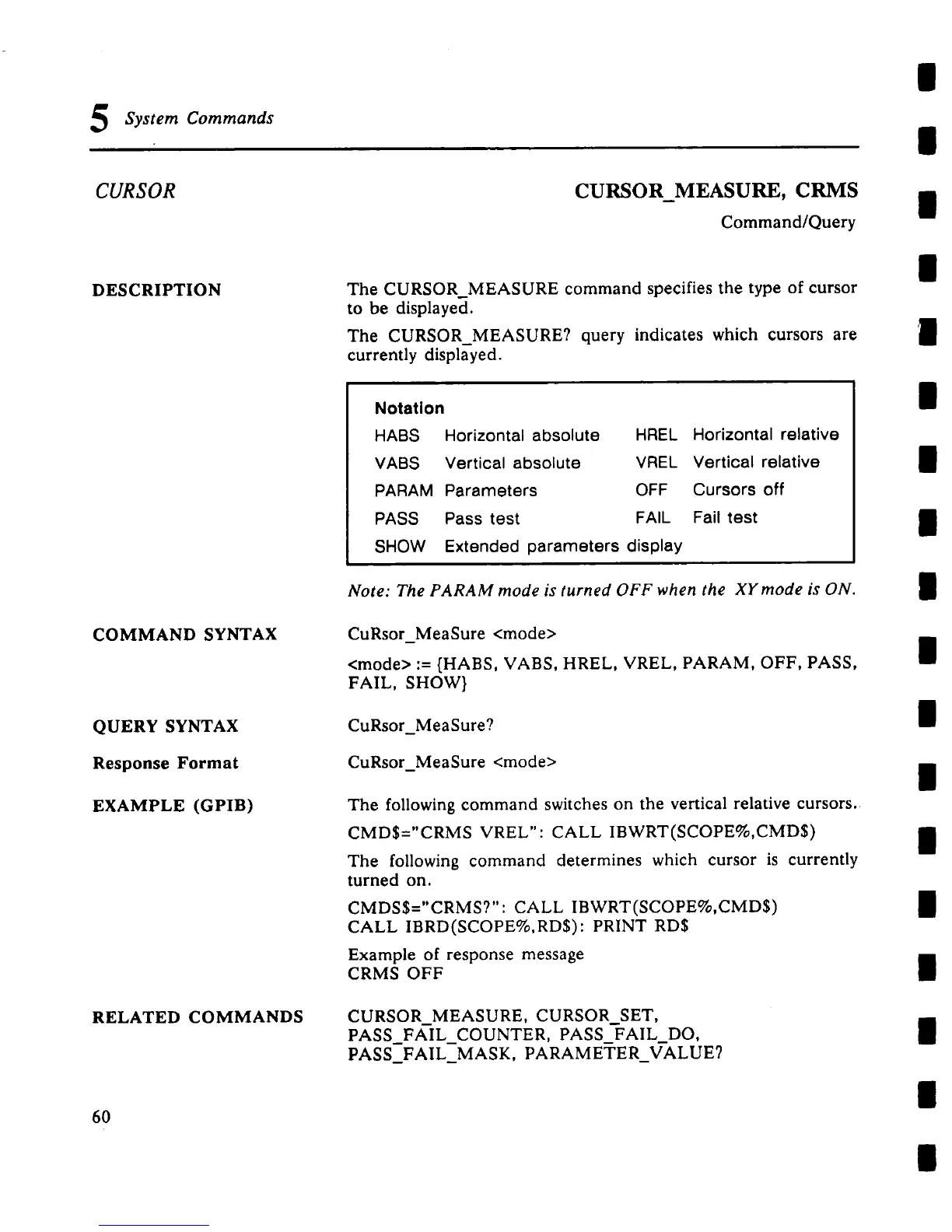

System Commands
|
|
CURSOR
DESCRIPTION
COMMAND SYNTAX
QUERY SYNTAX
Response Format
EXAMPLE (GPIB)
RELATED COMMANDS
60
CURSOR_MEASURE, CRMS
Command/Query
The CURSOR_MEASURE command specifies the type of cursor
to be displayed.
The CURSOR_MEASURE? query indicates which cursors are
currently displayed.
Notation
HABS Horizontal absolute
VABS
Vertical absolute
PARAM Parameters
PASS Pass test
SHOW
HREL Horizontal relative
VREL Vertical relative
OFF
Cursors off
FAIL Fail test
Extended parameters display
Note: The PARAM mode is turned OFF when the XYmode is ON.
CuRsor MeaSure <mode>
<mode> := {HABS, VABS, HREL, VREL, PARAM, OFF, PASS,
FAIL, SHOW}
CuRsor_MeaSure?
CuRsor MeaSure <mode>
The following command switches on the vertical relative cursors.
CMD$="CRMS VREL": CALL IBWRT(SCOPE%,CMD$)
The following command determines which cursor is currently
turned on.
CMDS$=’CRMS?’: CALL IBWRT(SCOPE%,CMD$)
CALL IBRD(SCOPE%,RD$): PRINT RD$
Example of response message
CRMS OFF
CURSOR_MEASURE, CURSOR_SET,
PASS_FAIL_COUNTER, PASS_FAIL_DO,
PASS_FAILMASK, PARAMETER_VALUE7
|
|
