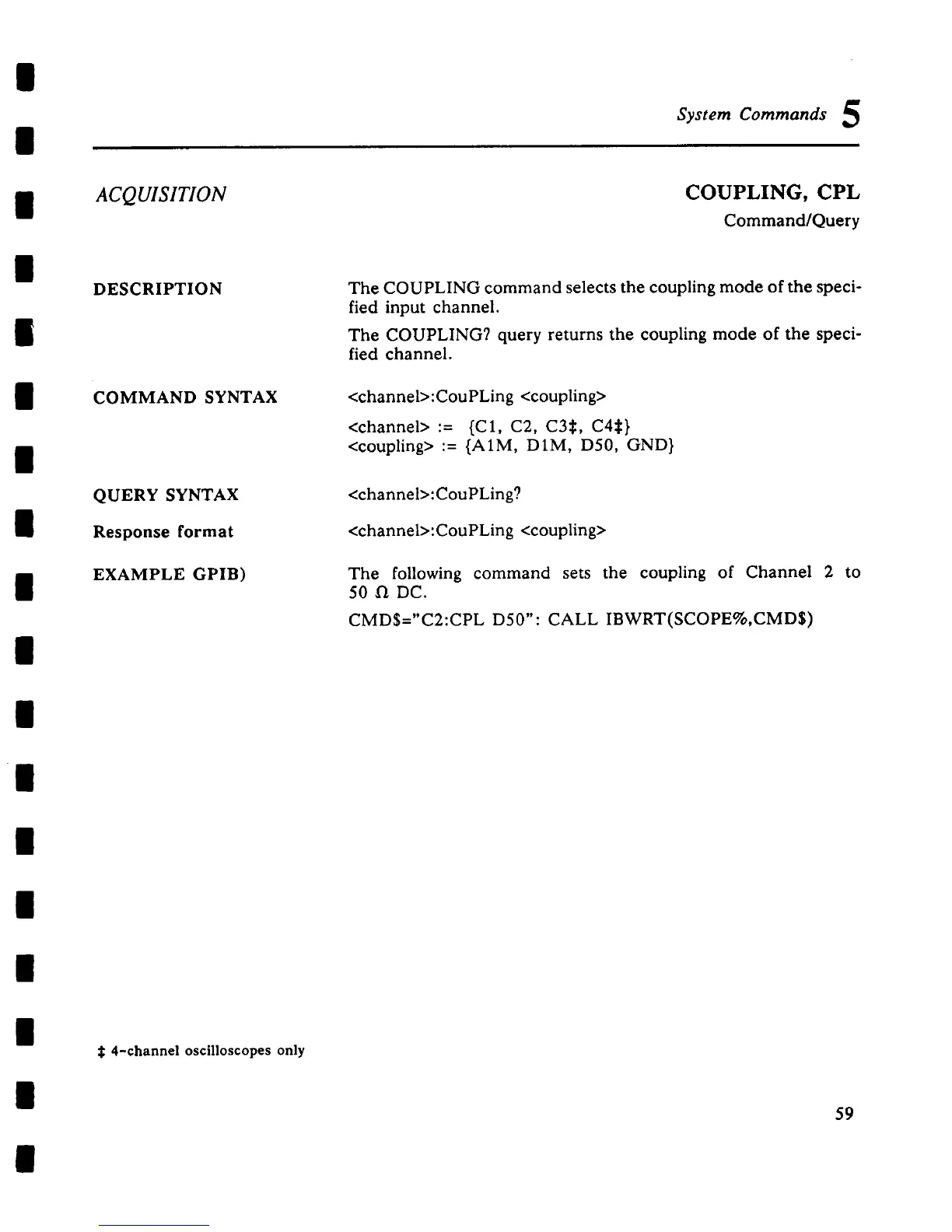

System Commands 5
ACQUISITION
COUPLING, CPL
Command/Query
DESCRIPTION
COMMAND SYNTAX
QUERY SYNTAX
Response format
EXAMPLE GPIB)
The COUPLING command selects the coupling mode of the speci-
fied input channel.
The COUPLING? query returns the coupling mode of the speci-
fied channel.
<channel>:CouPLing <coupling>
<channel> := {C1, C2, C3:1:, C4:i:}
<coupling> := {AIM, DIM, D50, GND}
<channel>:CouPLing?
<channel>:CouPLing <coupling>
The following command sets the coupling of Channel 2 to
50 n DC.
CMD$="C2:CPL D50": CALL IBWRT(SCOPE%,CMD$)
$ 4-channel oscilloscopes only
59
