OPERATORS MANUAL

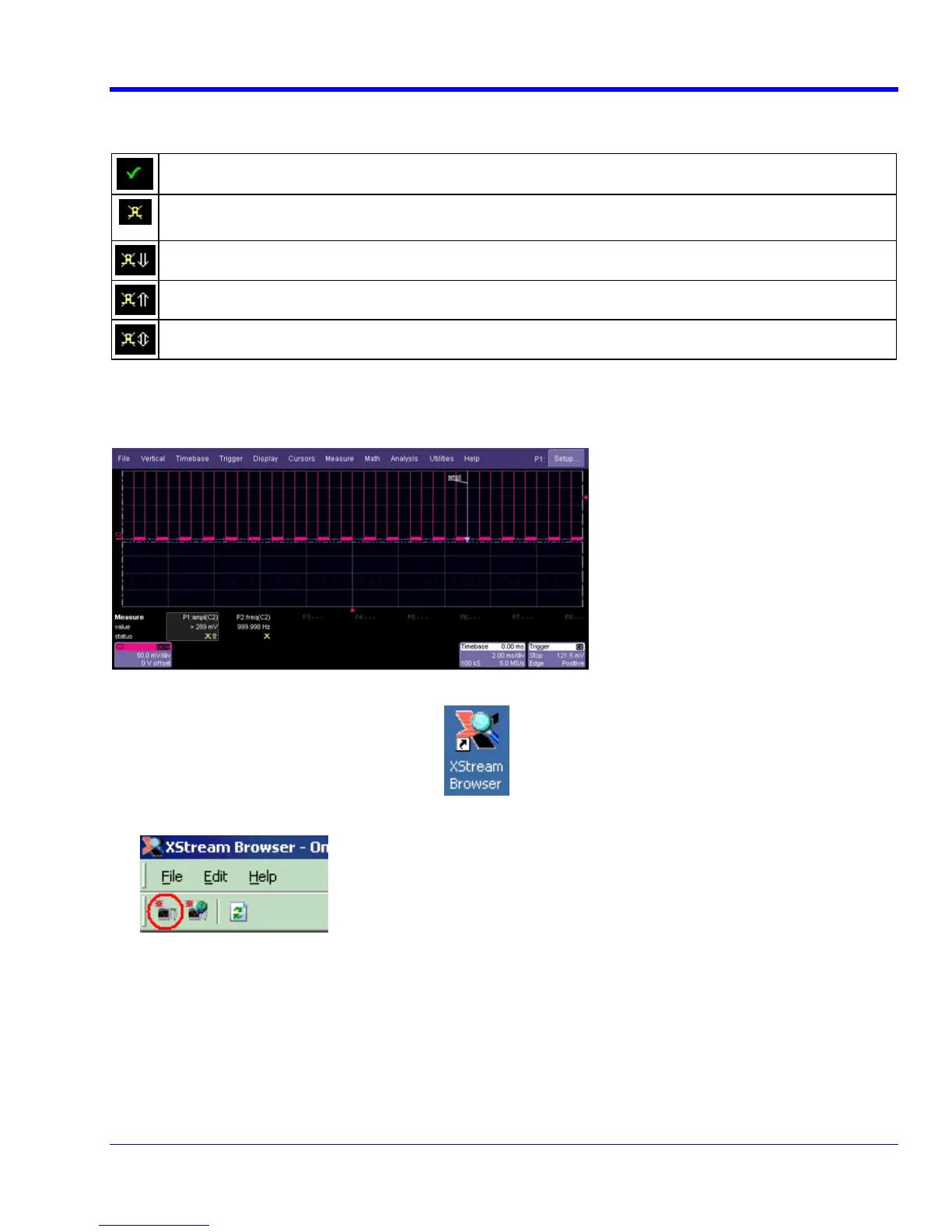

Status Symbols
Below each parameter appears a symbol that indicates the status of the parameter, as follows:
A green check mark means that the oscilloscope is returning a valid value.
A crossed-out pulse means that the oscilloscope is unable to determine top and base; however, the
measurement could still be valid.
A downward pointing arrow indicates an underflow condition.
An upward pointing arrow indicates an overflow condition.
An upward-and-downward pointing arrow indicates an underflow and overflow condition.
Using X-Stream Browser to Obtain Status Information
overflow condition, in which the amplitude of the waveform cannot be determined:
Example:
Here is a case of an
1. Minimize the oscilloscope display by selecting File Æ Minimize.
2. Touch the X-Stream Browser desktop icon to open the browser.
the X-Stream Browser toolbar: 3. Touch the left oscilloscope icon ("Connect to a local X-Stream DSO device") in
WRXi-OM-E Rev C 101
