OPERATOR’S MANUAL

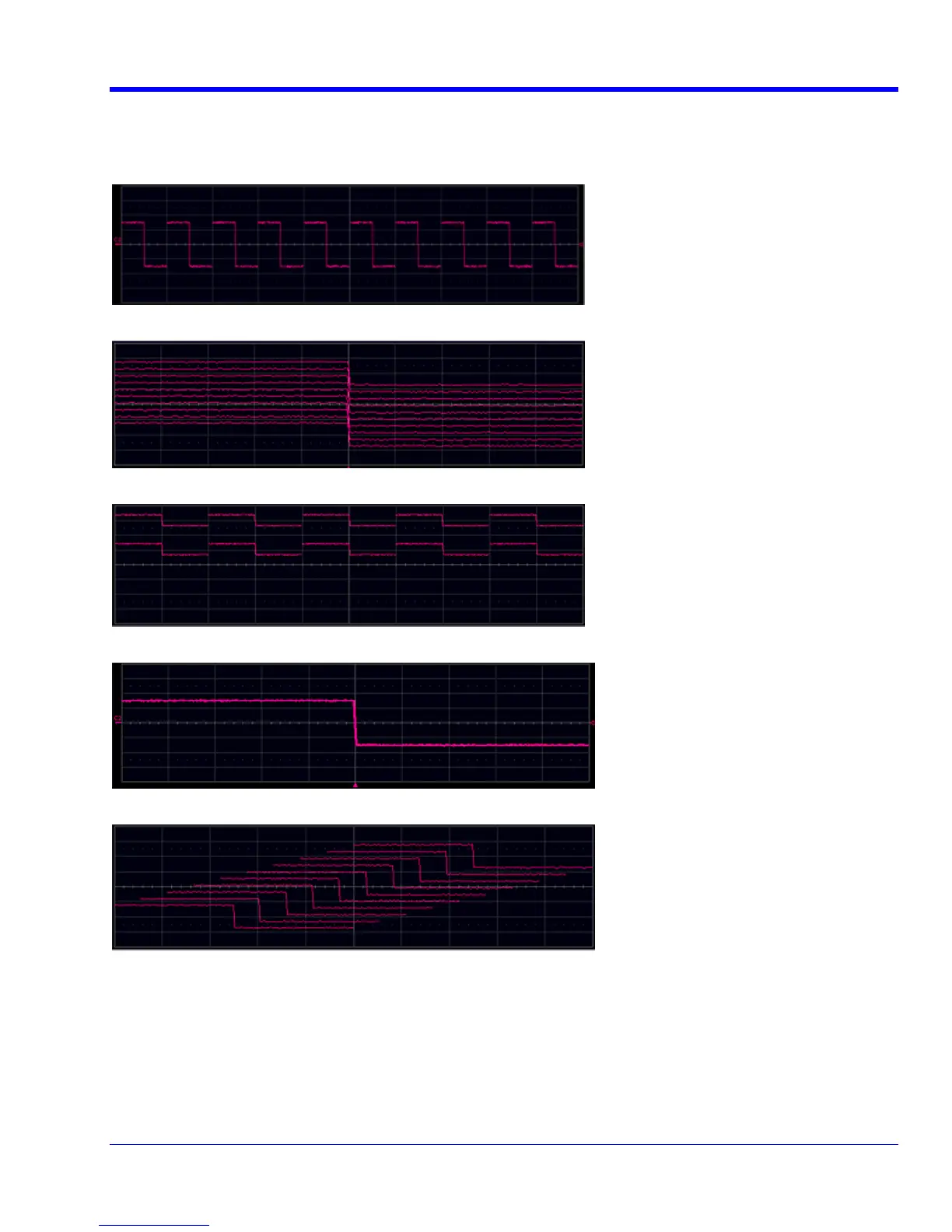

Sequence Display Modes

The instrument gives you a choice of five ways to display your segments:

DJACENT

ATERFALL (CASCADED)

OSAIC (TILED)

VERLAY

ERSPECTIVE

The number of segments you choose to display (80 maximum) can be less than the total number of segments in

the waveform. For example, in the pop-up images above, the number of display segments is 10, but the total

number of segments entered in the timebase dialog's Num Segments field is 100.

WRXi-OM-E Rev C 51
