OPERATOR’S MANUAL

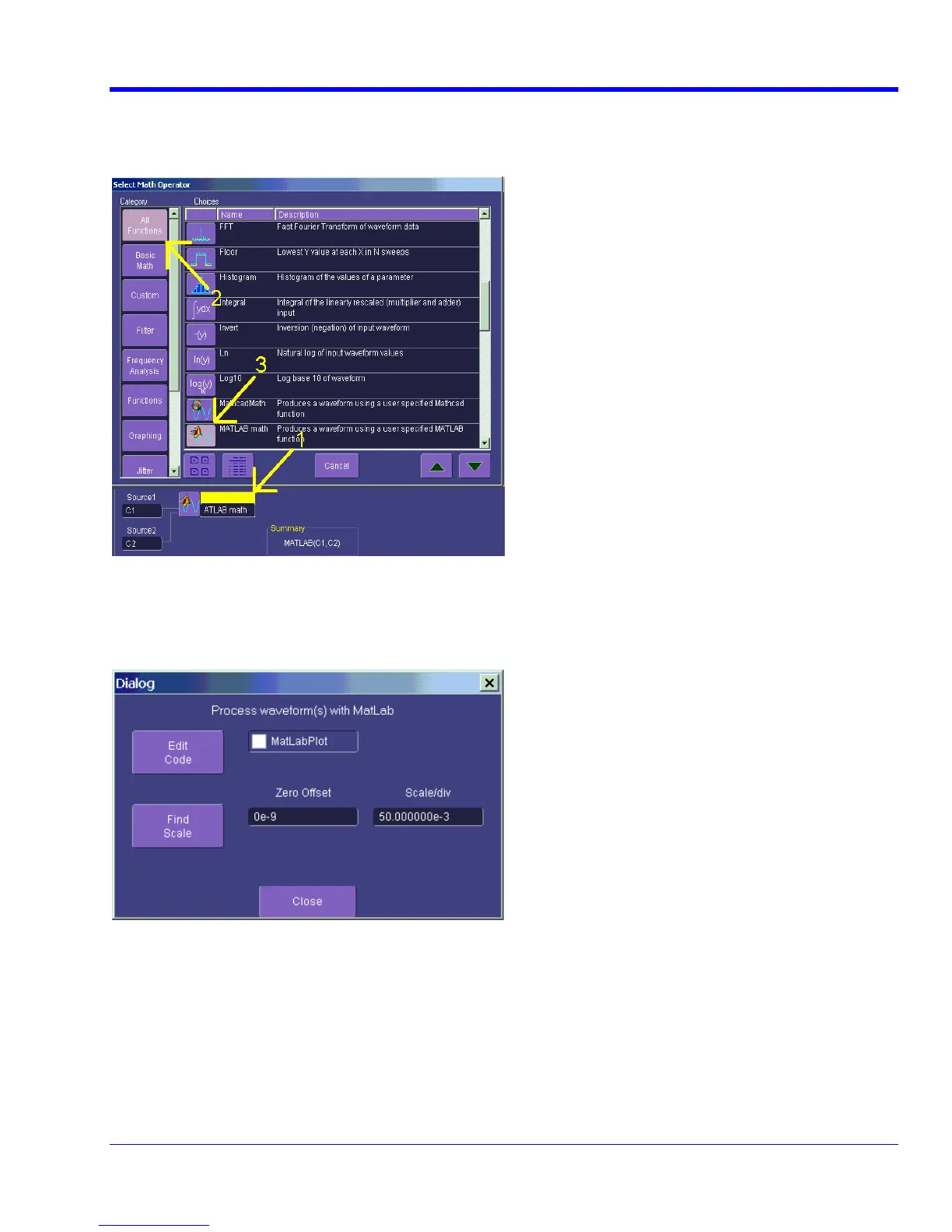

How to Select a Waveform Function Call
elected from the Select Math Operator menu. Please note that once you
" there will be a slight pause before MATLAB starts.
The MATLAB Waveform functions are s
have clicked on "MATLAB Wave
Source 1 and Source 2 are the waveforms that MATLAB will use.
The MATLAB Waveform Control Panel
Once you have invoked a MATLAB waveform call, you will see the zoom dialog at the right of the screen. Touch
the MATLAB tab to see a panel like this:
Touch Find Scale to make your output fit the grid, or use the text boxes to choose a scale.
WRXi-OM-E Rev C 209
