r when an edge is selected in the table, you can use the front panel A
DJUST knob to When the Idx field is active, o
advance through the table contents, one line at a time.

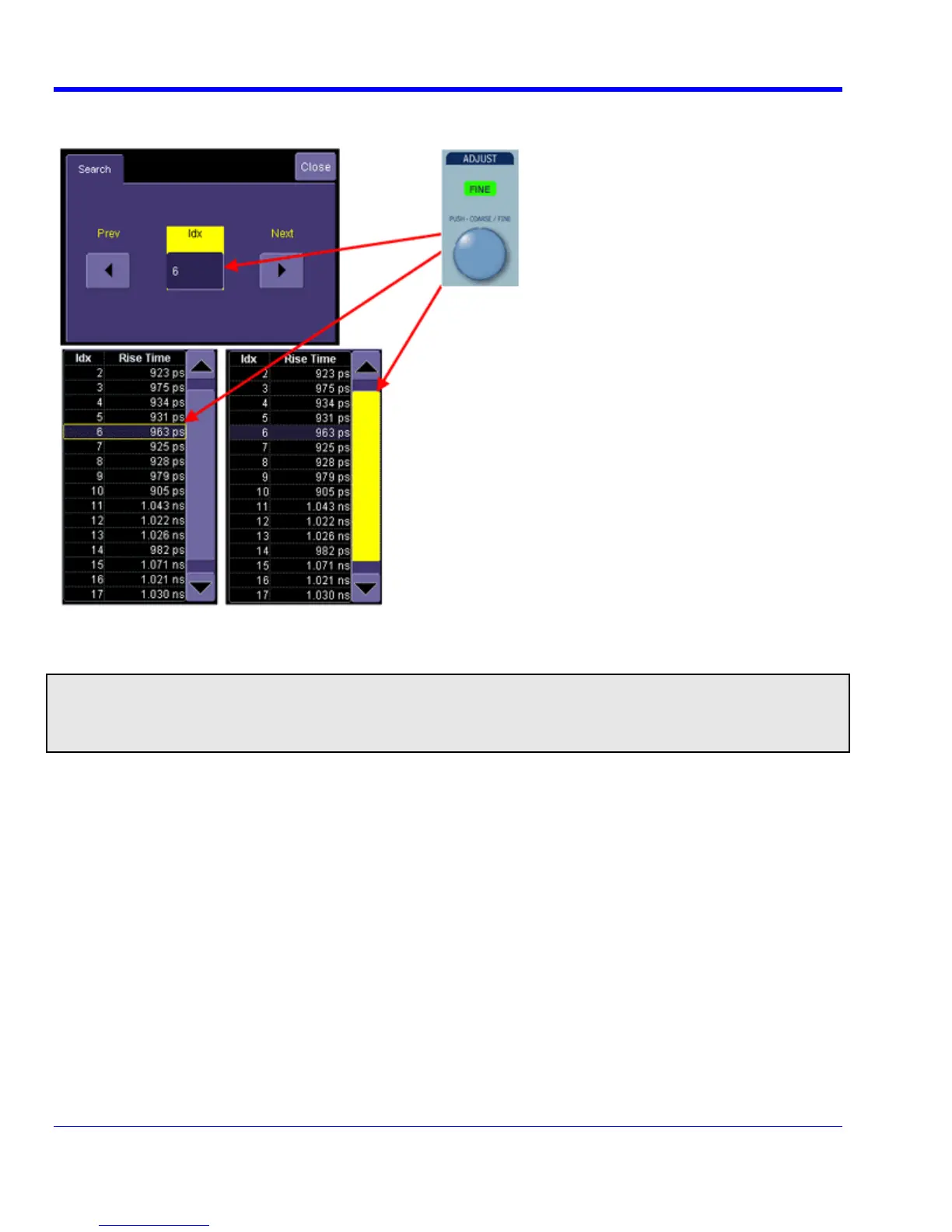

When the table contents are too numerous to fit in a single table display, a scroll bar will appear. By touching the
scroll bar to highlight it, you can use the Adjust knob to quickly scroll through the table. In this case, however, the
selection of edge will not change.
Note: Press the Adjust knob for fine resolution (green LED lights). This will enable you to scroll through the table
one line at a time. In the coarse resolution mode, the edge selection jumps several lines at once for each click of
the Adjust knob.
Front panel Zoom controls can be used to vary the magnification and position of the zoomed trace. Or, you can
use the on-screen In/Out buttons.
In Zoom View, you can also apply further processing, store, or apply a descriptive label to the zoom trace.
