WAVERUNNER XI SERIES
180 WRXi-OM-E Rev C
ll C2 is –A2, copied for
the entire column), as shown here:
Now, create your formula for each data point in column A (in this case, our formula for ce
4. Retrigger the oscilloscope (if it is not currently triggering)
5. Return to the program
Note that the only action that was needed in Excel was to create the formula in column C for each data point in
column A. The instrument automatically opens Excel, puts the waveform data in the correct columns, and returns
the calculated data back to the display as the chosen F trace. This Excel-calculated trace can have further
measurements or math calculations performe on it, if desired.
he input (top chart) and Excel calculated output
et. The chart will be updated automatically as the
oscilloscope is triggered.
d

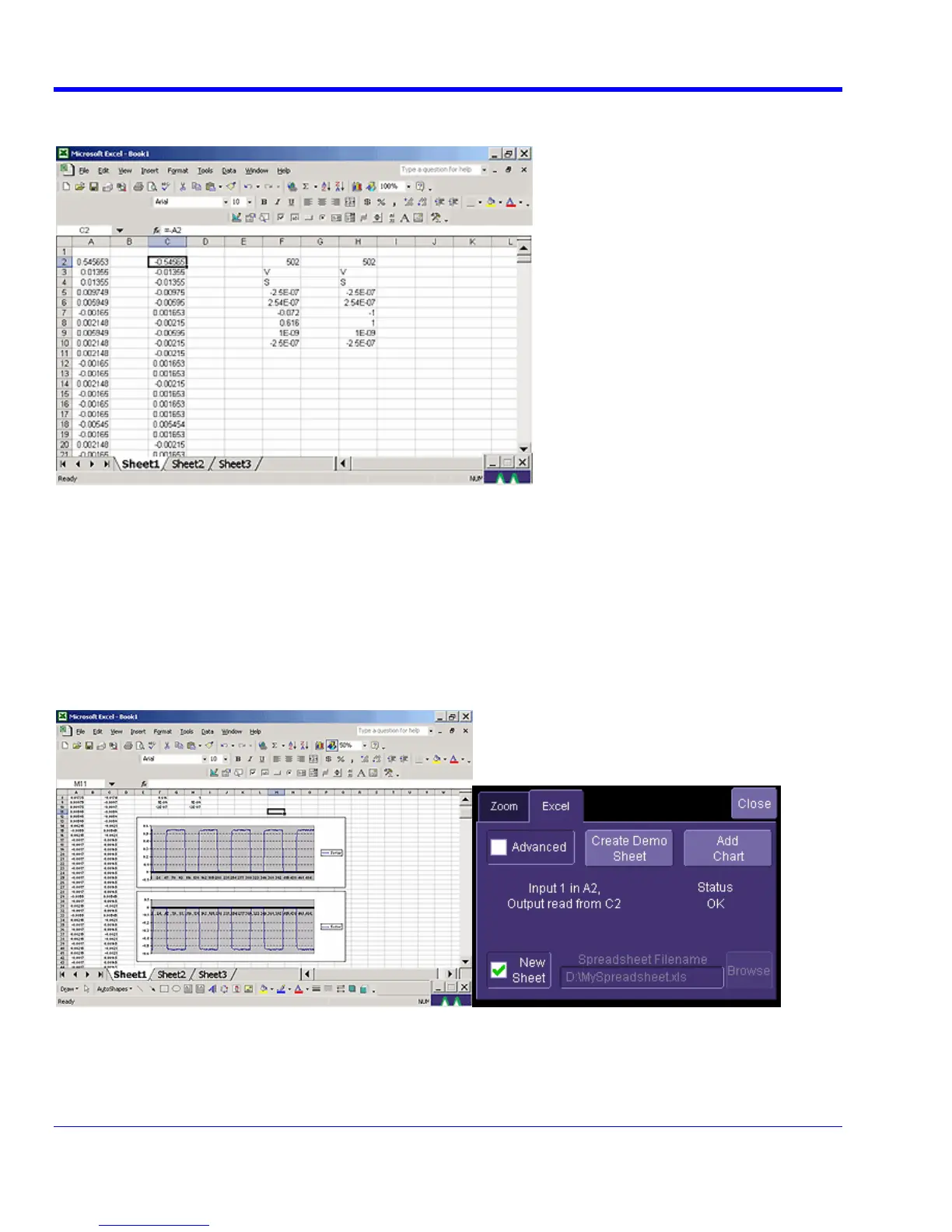

You can also create a chart of the data in Excel automatically and view the data there. Simply press the Add
Chart button in the instrument's Excel dialog and a chart of t
(bottom chart) will be automatically created in the spreadshe
