OPERATOR’S MANUAL

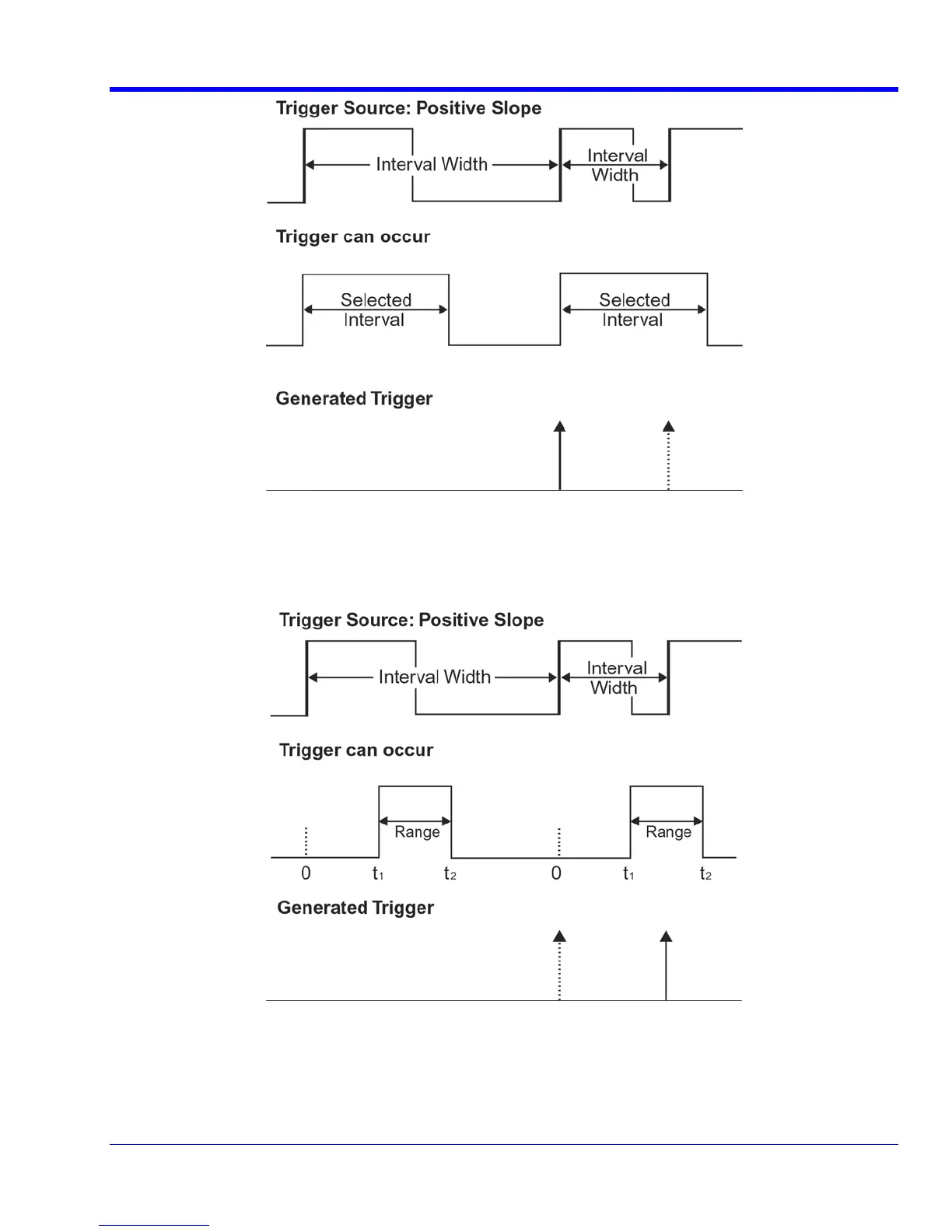

Interval Trigger that triggers when the interval width is larger than the set interval. The broken upward-pointing arrow indicates a
potential trigger, while the bold one shows where the actual trigger occurs on the positive edge after the selected interval.
• Interval In Range: This Interval Trigger is generated whenever an interval between two edges of the same
slope falls within a selected range. The instrument initializes and restarts the timing for the interval whenever
the selected edge occurs.
Interval Trigger that triggers when the interval falls within the selected range:
t
1
= range's lower time limit; t
2
= range's upper limit. The broken upward-pointing arrow indicates a potential trigger, while the bold
one indicates where the actual trigger occurs on the positive edge within the selected range.
WRXi-OM-E Rev C 69
