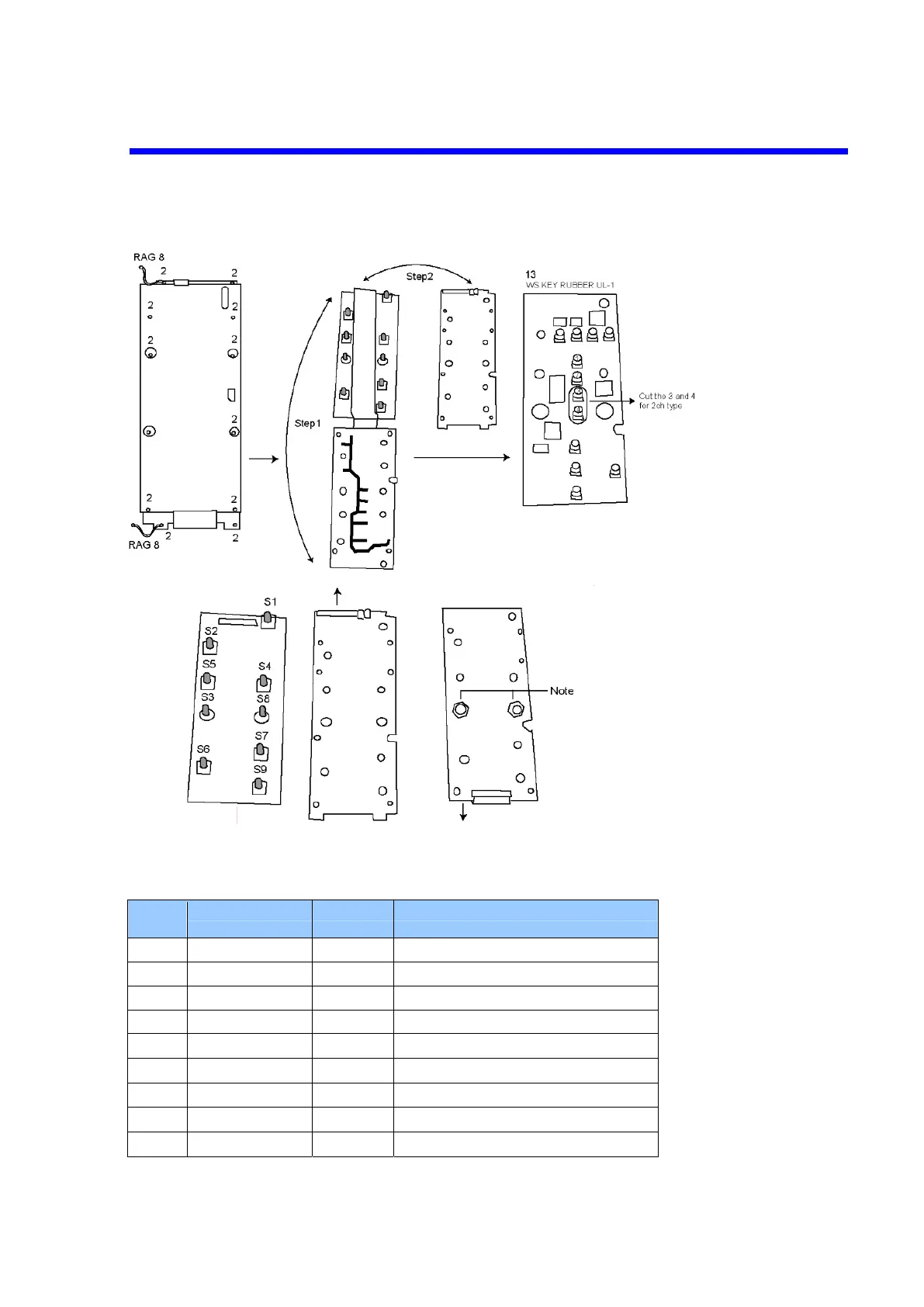

using the protective front cover.
[E3]
Note:
S3 and S8 are tightened together with these nuts through KEY PLATE, KEY SHEET, and
KEY BOARD.
Item
Fig. No
Part Number Quantity Description
S1-S2 IWDSW035701 2 Smooth, Push Button Encoder
S3 IWDME990431 1 Detented Encoder
S4-S7 IWDSW035701 4 Smooth, Push Button Encoder
S8 IWDME990431 1 Detented Encoder
S9 IWDSW035701 1 Smooth, Push Button Encoder
IW211857904 1 4 channel keyboard
IW211857905 1 4 channel keyboard
IWKBA806011 1 Keyboard Plate
IWKPL145421 1 Elastomeric Keypad
Mechanical Part & Removal 7-13
