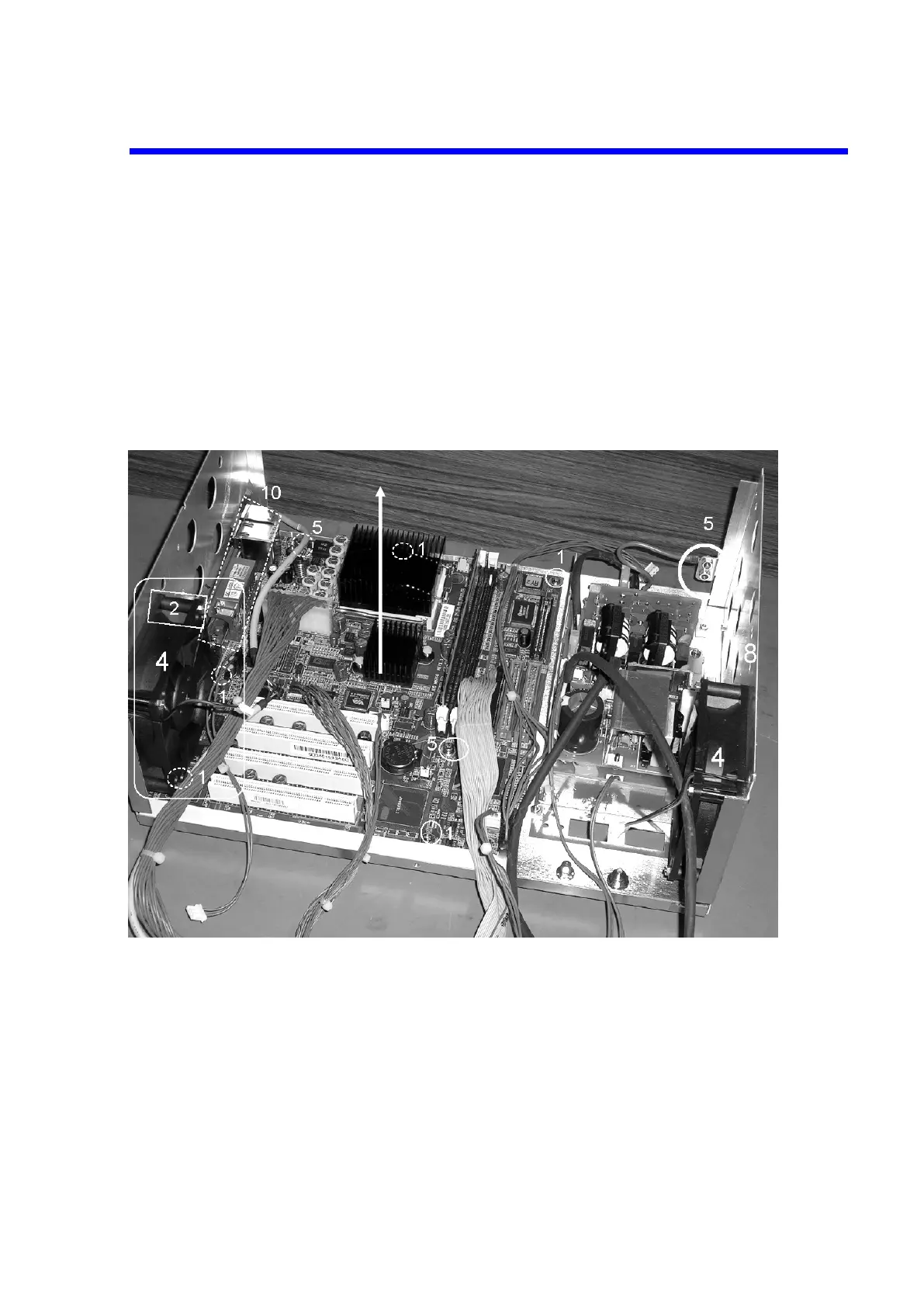

J. Removal of the CPU Board
• Remove the four KP(+)3x30 (Item Fig No.2) screws which connect the fan to the CPU
frame. J1
• Remove the seven screws(five KP3x6 Item Fig No.1 and KP4x8 Item Fig No.5) on the
CPU board. J1
Caution : Batteries are mounted, so care should be taken to prevent short-circuiting.
[J1]
NOTE: The four KP(+)3x30 screws is used per a FAN.
The 4 is in the Over All table, FAN MOTOR DMT620781.
When CPU board is removed, it is possible to assemble the connectors without a mistake
as fastening a tag.
Mechanical Part & Removal 7-25
