7-26 Mechanical Parts & Removal

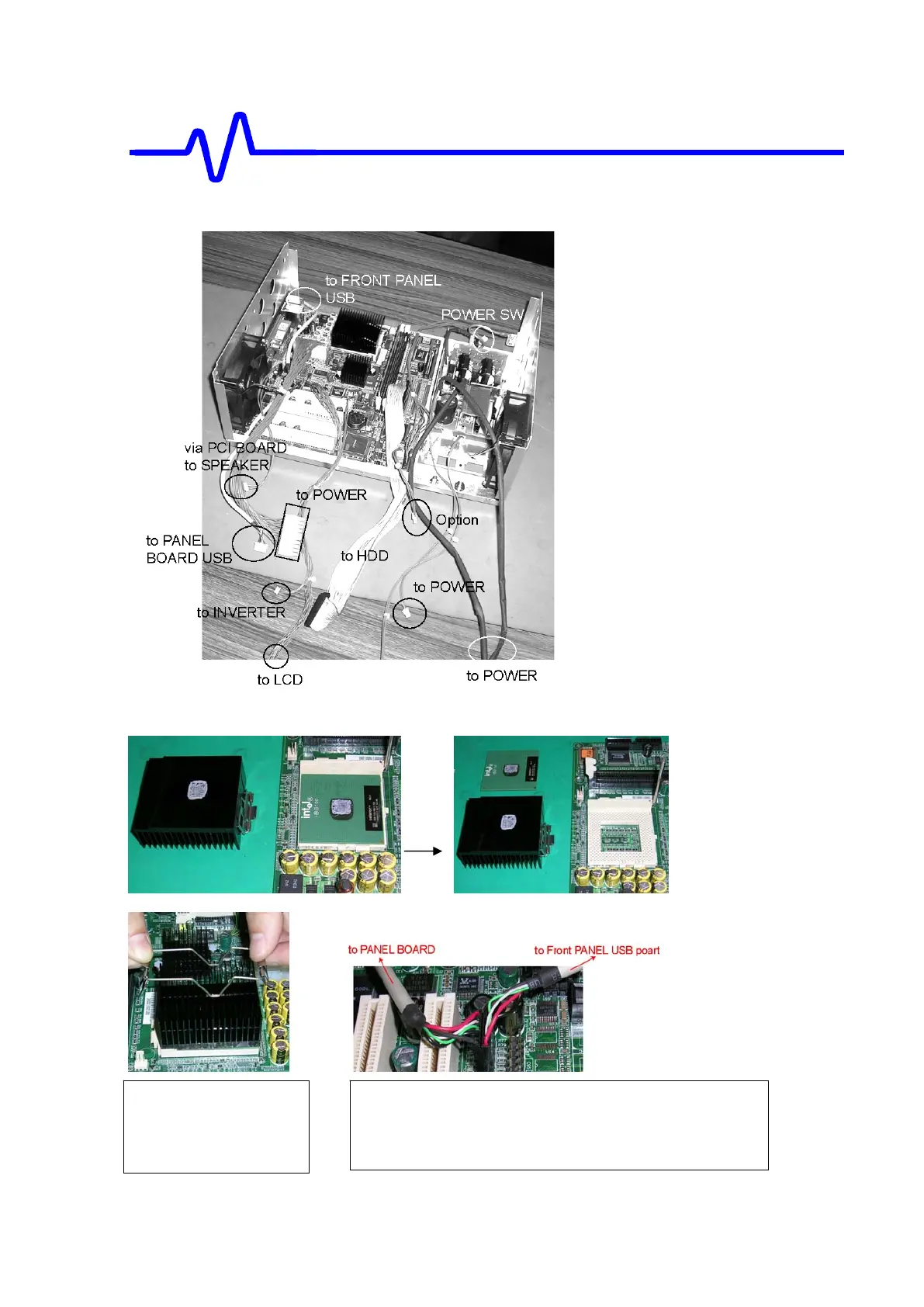

[J2] CPU Board Cables

[J3] CPU & USB

Please note the

direction of the CPU

heat sink stopper.

CAUTION:

Before connecting the USB cables, make sure that

the power supply of the USB connector (red) is

different by FRONT and SIDE PANEL.
