The label aached to DX‑D2C6 helps you idenfy dierent channels.

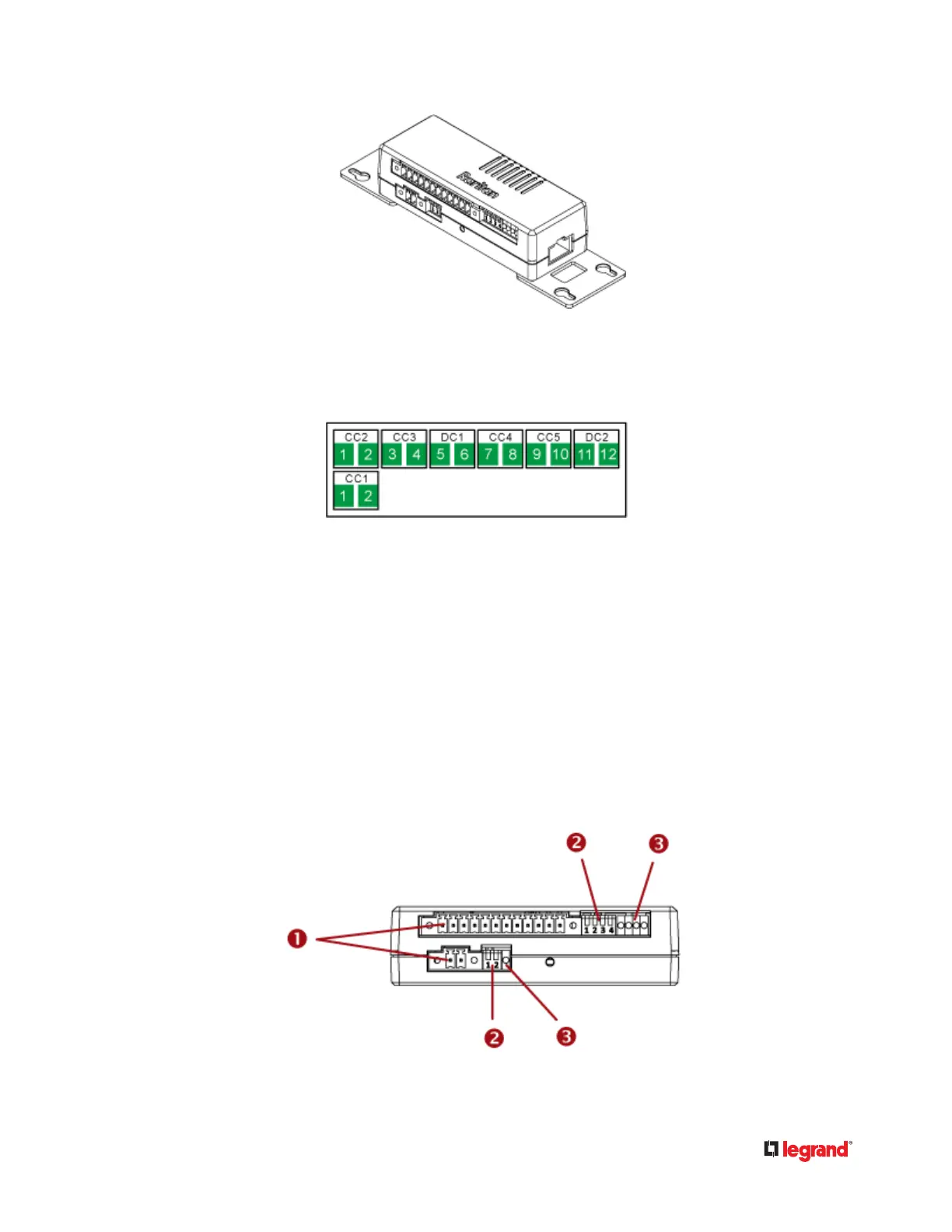

▶ DX‑D2C6 Label:
• CC represents a contact closure sensor channel. There are ve CC channels: CC1 through CC5.•
• DC represents a dry contact signal actuator channel. There are two DC channels: DC1 and DC2.•
▶
DX‑D2C6 hall eect sensor (reserved):
DX‑D2C6 contains a built-in hall eect sensor, which can detect whether a door is open or closed. The
hall eect sensor is reserved for future use and currently shall NOT be used. Aer connecng DX‑D2C6
to a managing device, this built-in sensor will be detected and show up in the web interface and SNMP
MIB, which is normal.
▶
DX‑D2C6 terminals, DIP switches, and LEDs:
Terminals, DIP switches, and LEDs are located in two rows as shown below.
