LEGRAND DX2 Series User Manual

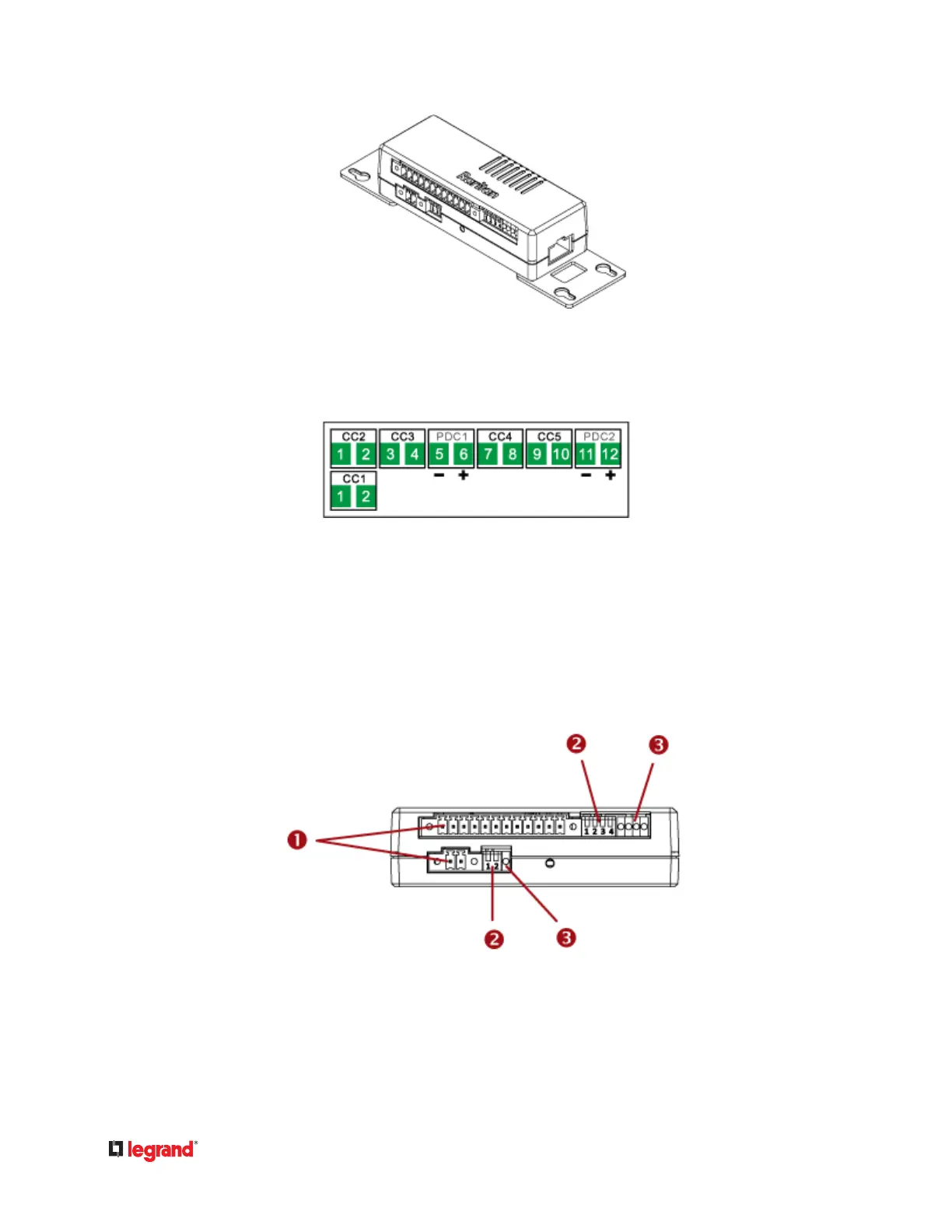

A label is aached to DX‑PD2C5 to help you idenfy dierent channels.
▶ DX‑PD2C5 Label:
• CC represents a contact closure sensor channel. There are ve CC channels: CC1 through CC5.•
• PDC represents a dry contact signal actuator channel which is powered. There are two PDC•
channels: PDC1 and PDC2. Note that each PDC channel has two electrical polarity markings below it:
- (negave) and + (posive), which you must follow when connecng an EMKA door handle.
▶
DX‑PD2C5 terminals, DIP switches, and LEDs:
Terminals, DIP switches, and LEDs are separated into two rows as shown below.
41
