▶ To make connecons aer the terminal module is detached:

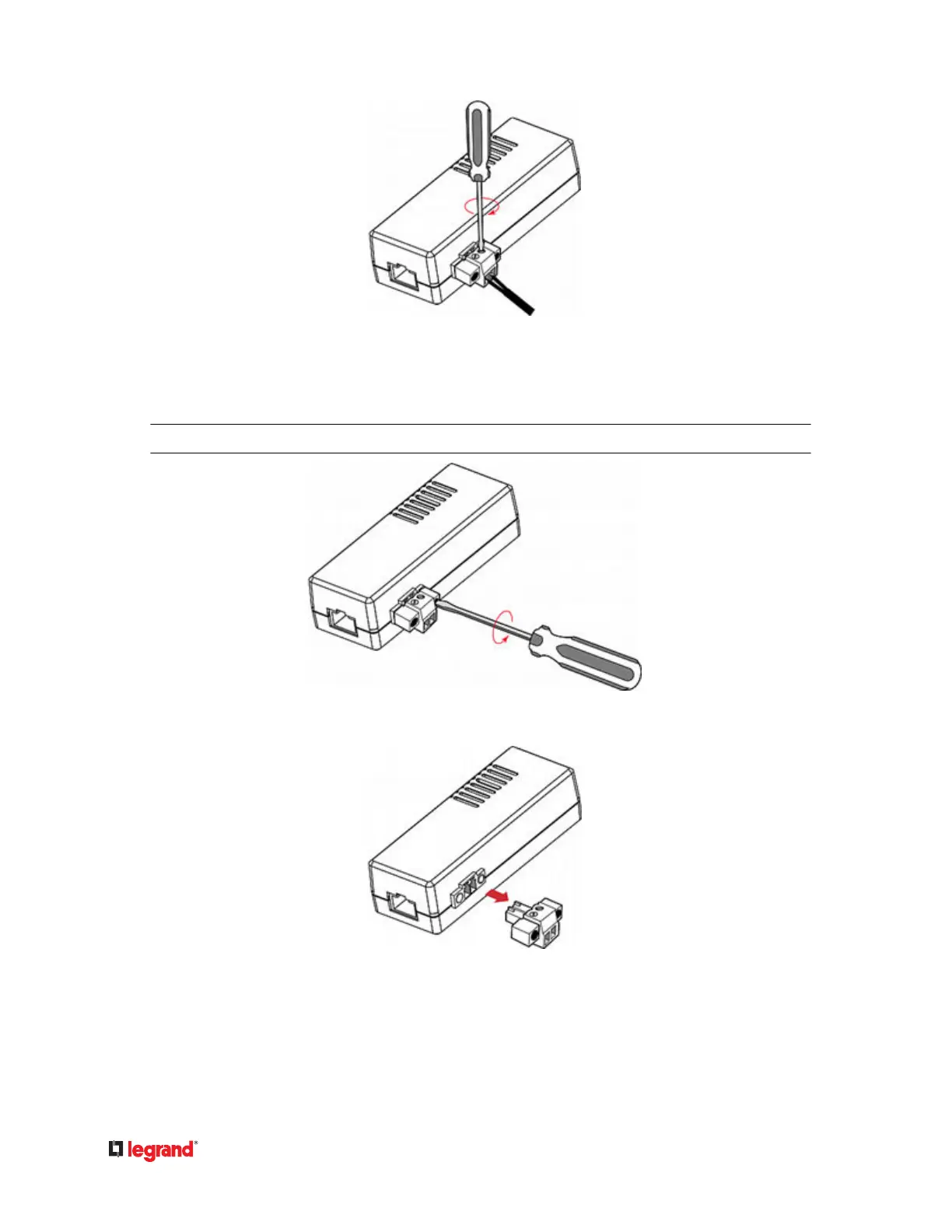

1) Loosen the screws at two sides of the terminal module.
Note: The two screws are not removable so just loosen them.
2) Separate the terminal module from the sensor box.
3) Aer connecng detectors/switches to the terminal module, plug the terminal module back into the
sensor box, and then ghten the screws at two sides of the terminal module.
51
