Single-Cell Server
RPN 3
Repeater
RPN 99
Repeater
RPN 35
Repeater
RPN 67
Repeater
RPN 131
Repeater
RPN 195
Single-Cell Server
RPN 3
Repeater
RPN 35
Repeater
RPN 67
Repeater
RPN 195
Repeater
RPN 99
Repeater
RPN 131
Single-Cell Server
RPN 3
Repeater
RPN 67
Repeater
RPN 195
Repeater
RPN 35
Repeater
RPN 99
Repeater
RPN 131
Single-Cell Server
RPN 3
Repeater
RPN 99
Repeater
RPN 35
Repeater
RPN 67
Repeater
RPN 131
Repeater
RPN 195
Repeater
RPN 163
Single-Cell Server
RPN 3
Repeater
RPN 35
Repeater
RPN 67
Repeater
RPN 163
Repeater
RPN 99
Repeater
RPN 131
Repeater
RPN 227
19. IP-DECT 200 SINGLE CELL SYSTEM INSTALLATION

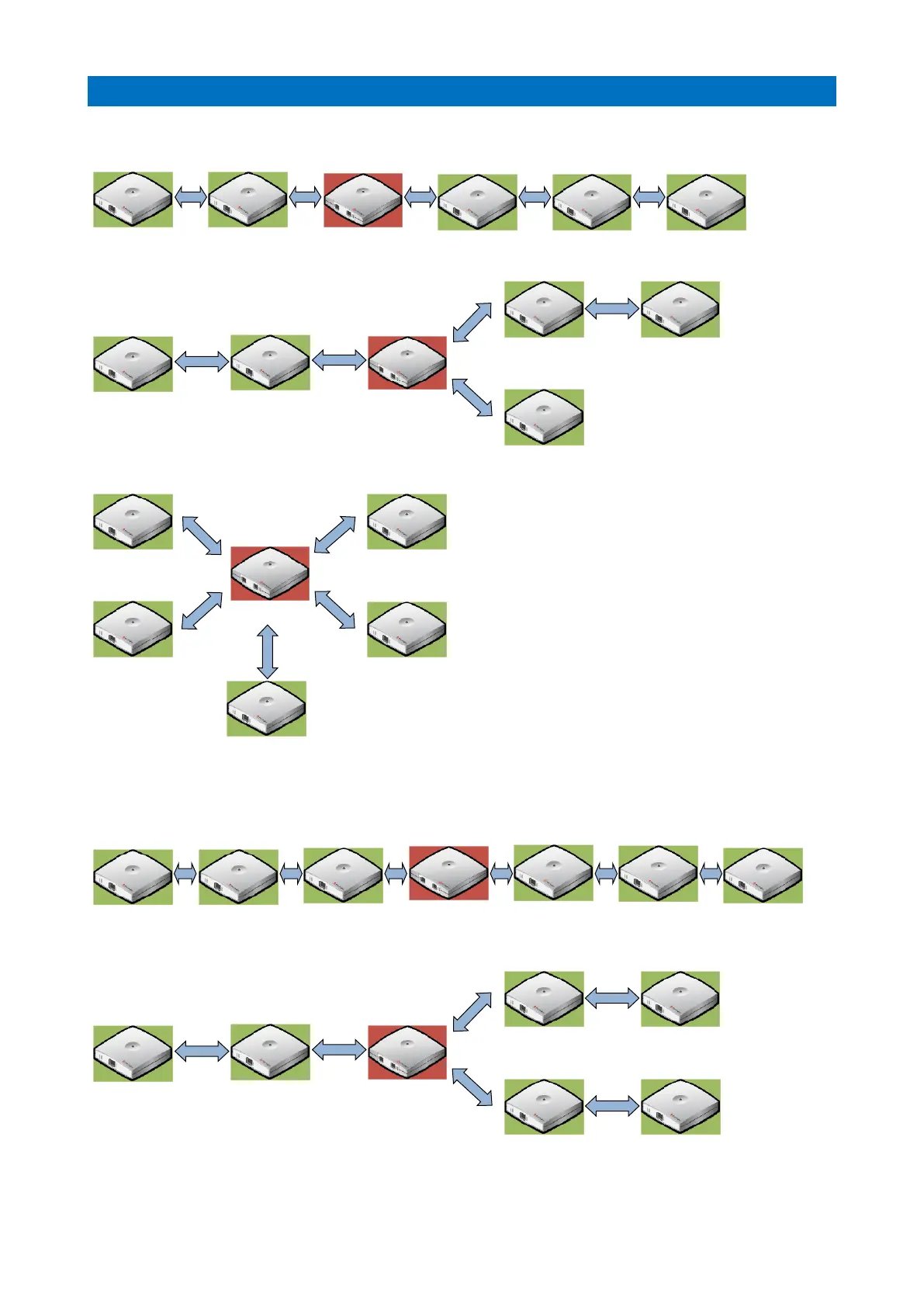

5 REPEATER DEPLOYMENT EXAMPLES
1 chain of 3 Repeaters and 1 chain of 2 Repeaters; the Repeater connected to 35 needs to be +64 so this Repeater is numbered 99.
2 chains of 2 Repeaters and 1 single Repeater:
5 Repeaters connected directly:
6 REPEATER DEPLOYMENT EXAMPLES
2 chains of 3 Repeaters:
3 chains of 2 Repeaters:
