Doc No. FM0814 issue 5 Page 25
Single-Cell Server
RPN 3
Repeater
RPN 67
Repeater
RPN 131
Repeater
RPN 195
Single-Cell Server
RPN 3
Repeater
RPN 35
Repeater
RPN 67
Repeater
RPN 131
Repeater
RPN 195
Single-Cell Server
RPN 3
Repeater
RPN 99
Repeater
RPN 35
Repeater
RPN 67
Repeater
RPN 131
Single-Cell Server
RPN 3
Repeater
RPN 131
Repeater
RPN 195
Repeater
RPN 35
Repeater
RPN 67
Single-Cell Server
RPN 3
Repeater
RPN 67
Repeater
RPN 131
Repeater
RPN 195

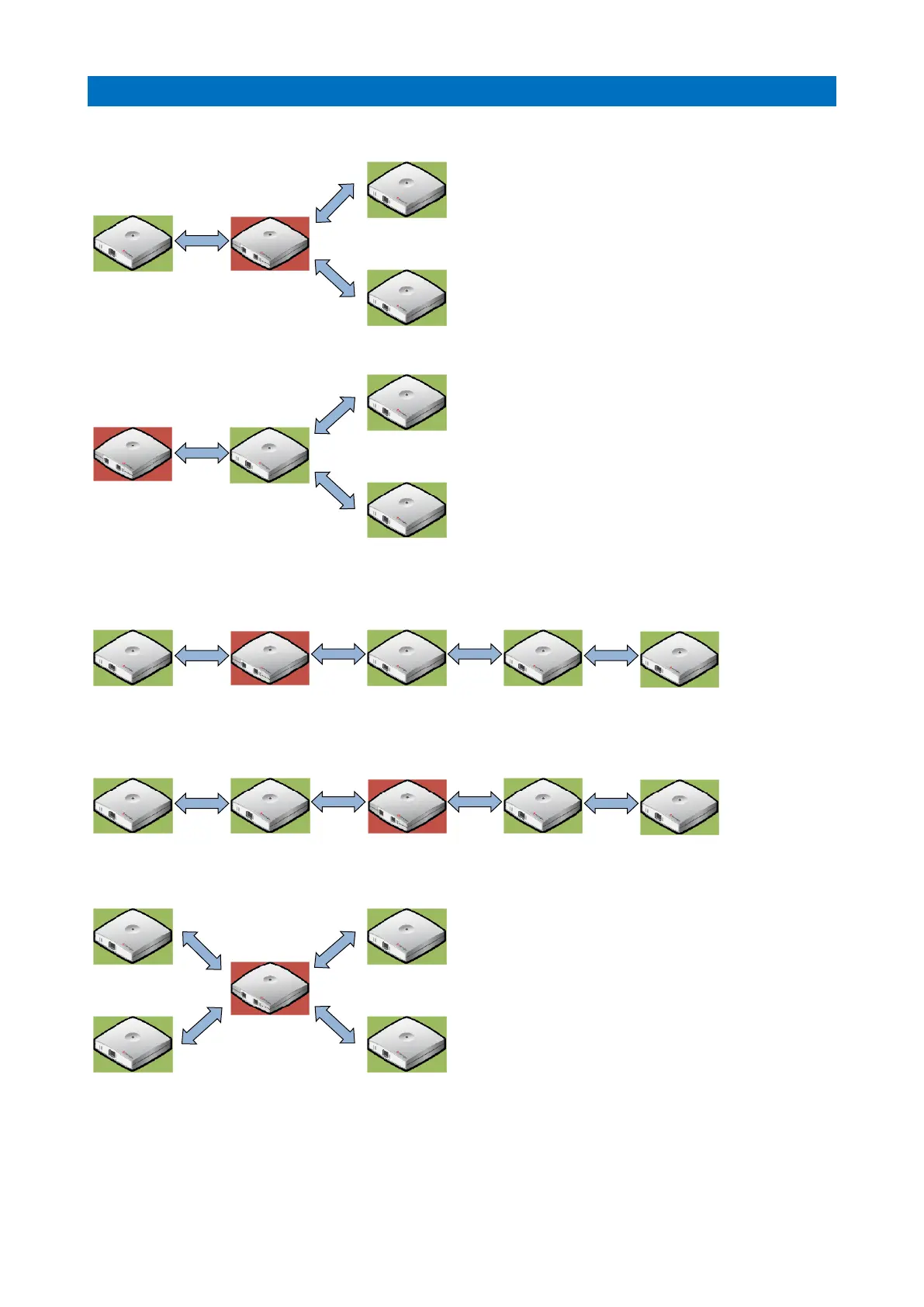

19. IP-DECT 200 SINGLE CELL SYSTEM INSTALLATION
3 REPEATER DEPLOYMENT EXAMPLES CONTINUED…
3 Repeaters connected directly:
Y-shaped 3 Repeater deployment:
4 REPEATER DEPLOYMENT EXAMPLES
3 Repeaters in a chain and the 4
th
connected directly; the 3 in a chain are numbered as normal, the 4
th
is number +32.
2 chains of 2 Repeaters; the Repeater to the left of the Solo Base is numbered +32 and the Repeater that connects to this is
numbered +96 (32+64).
4 Repeaters connected directly; 3 Repeaters are numbered +64, +128 and +192, the 4
th
Repeater is number +32.
