CS10/CS15 & GS Sensors, Pin Assignments and Sockets 143

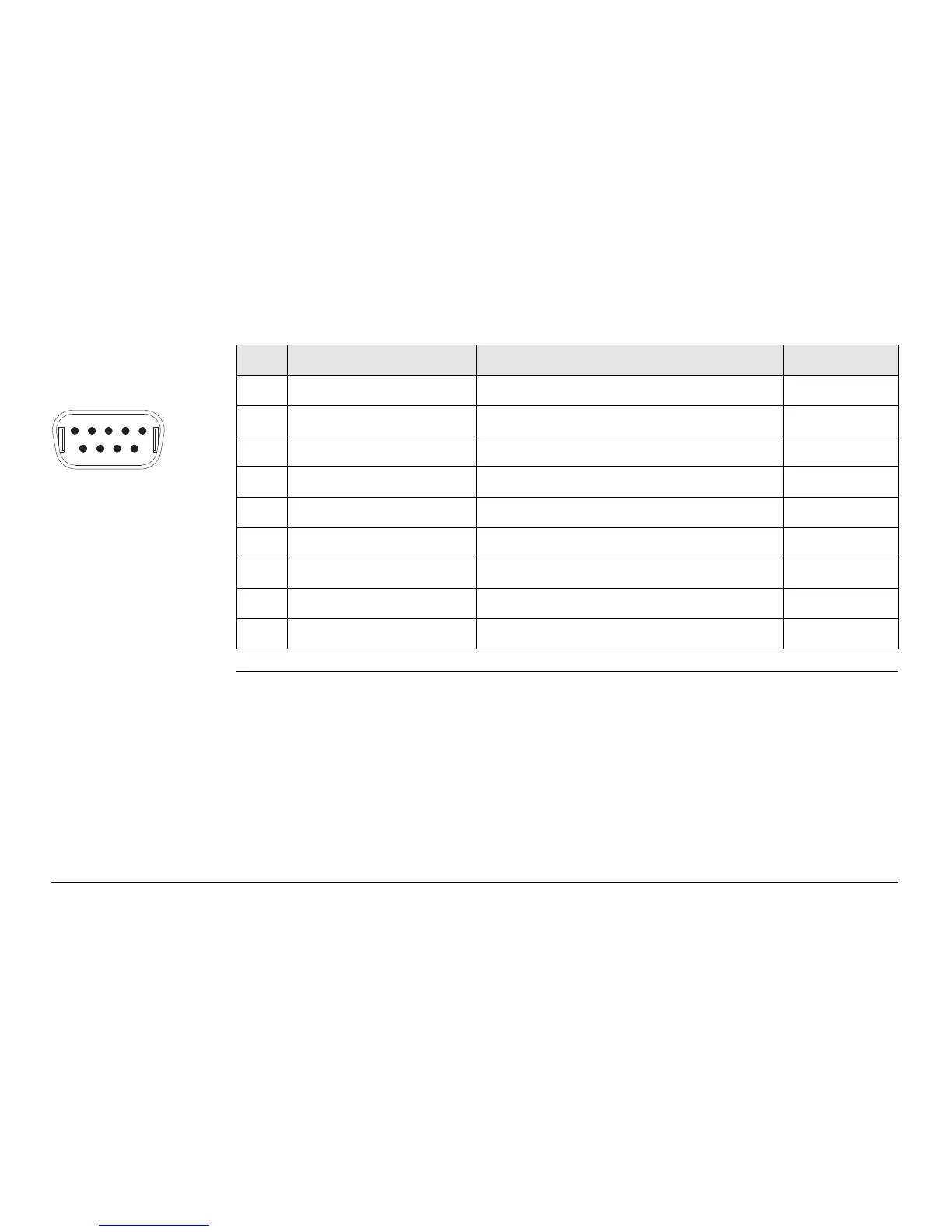

Pin assignments
for RS232 serial
port
PIN_002
1
6789
2345
Pin Signal Name Function Direction
1 NC Not connected -
2 RxD RS232, receive data In
3 TxD RS232, transmit data Out
4 NC Not connected -
5 GND Signal Ground -
6 NC Not connected -
7 RTS RS232, request to send Out
8 CTS RS232, clear to send In
9 NC Not connected -
