CS10/CS15 & GS Sensors, Pin Assignments and Sockets

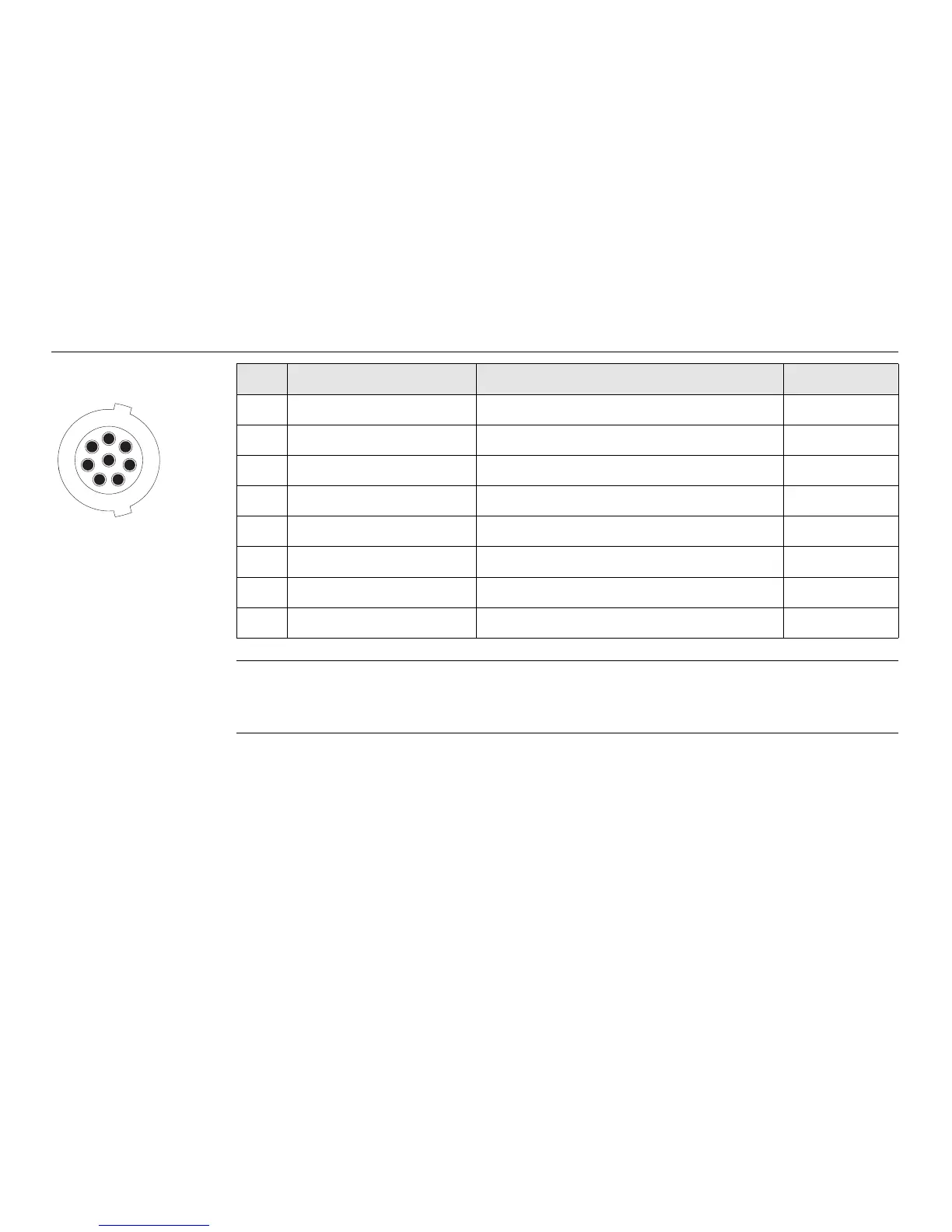

Pin assignments
for 8 pin LEMO-1
Sockets
1
7
6
8
5
4
3
2
PIN_001
Pin Signal Name Function Direction
1 USB_D+ USB data line In or out
2 USB_D- USB data line In or out
3 GND Signal ground -
4 RxD RS232, receive data In
5 TxD RS232, transmit data Out
6 ID Identification pin In or out
7 PWR Power input, 10.5 V-28 VIn
8 TRM_ON/USB_ID RS232, general purpose signal In or out
9 pin RS232: RS232, 9 pin, DB9
8 pin LEMO-1: LEMO-1, 8 pin, LEMO EGI.1B.308.CLN
