4.3.3.7 Electric Actuator
Display
Description

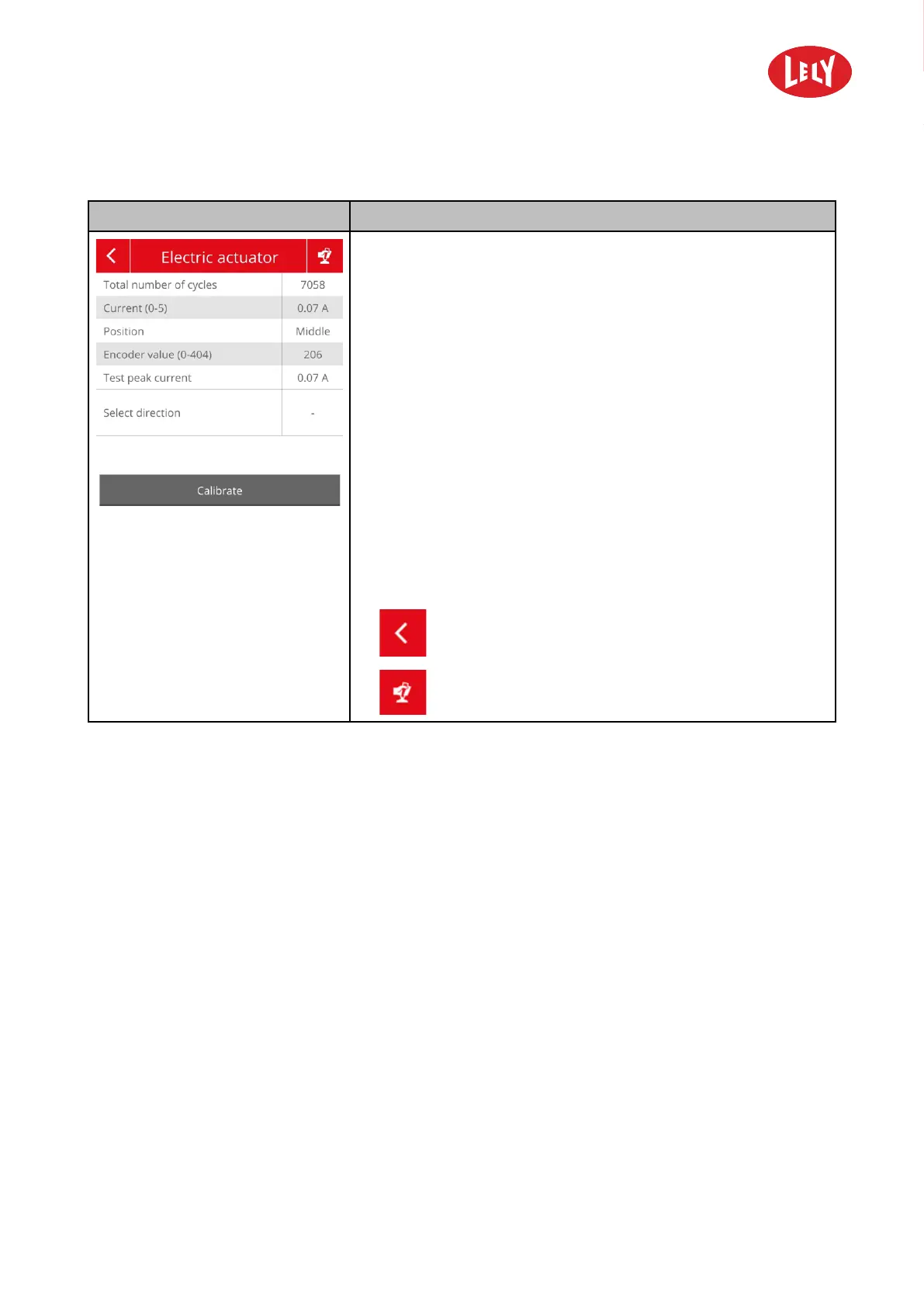

The menu Electric actuator gives actual status information about
the actuator. Also you can adjust the feed push position of the
skirt or lift the skirt to the middle position in this menu.
• Total number of cycles: the total amount of times the actuator
has adjusted the position of the skirt.
• Current: actual current on the actuator in amperes.
• Position (Left-Middle-Right): the actual position of the skirt /
actuator.
• Encoder value (0 - 404):
• 0: fully closed (0 mm).
• 404: fully open (150 mm).
• Test peak current: peak current from the moment the actuator
was started from the test menu in amperes.
Buttons
• Button Calibrate to calibrate the actuator.
•
to return to the menu Testing.
•
to enter the menu Manual control.
