Description and Operation 4-31

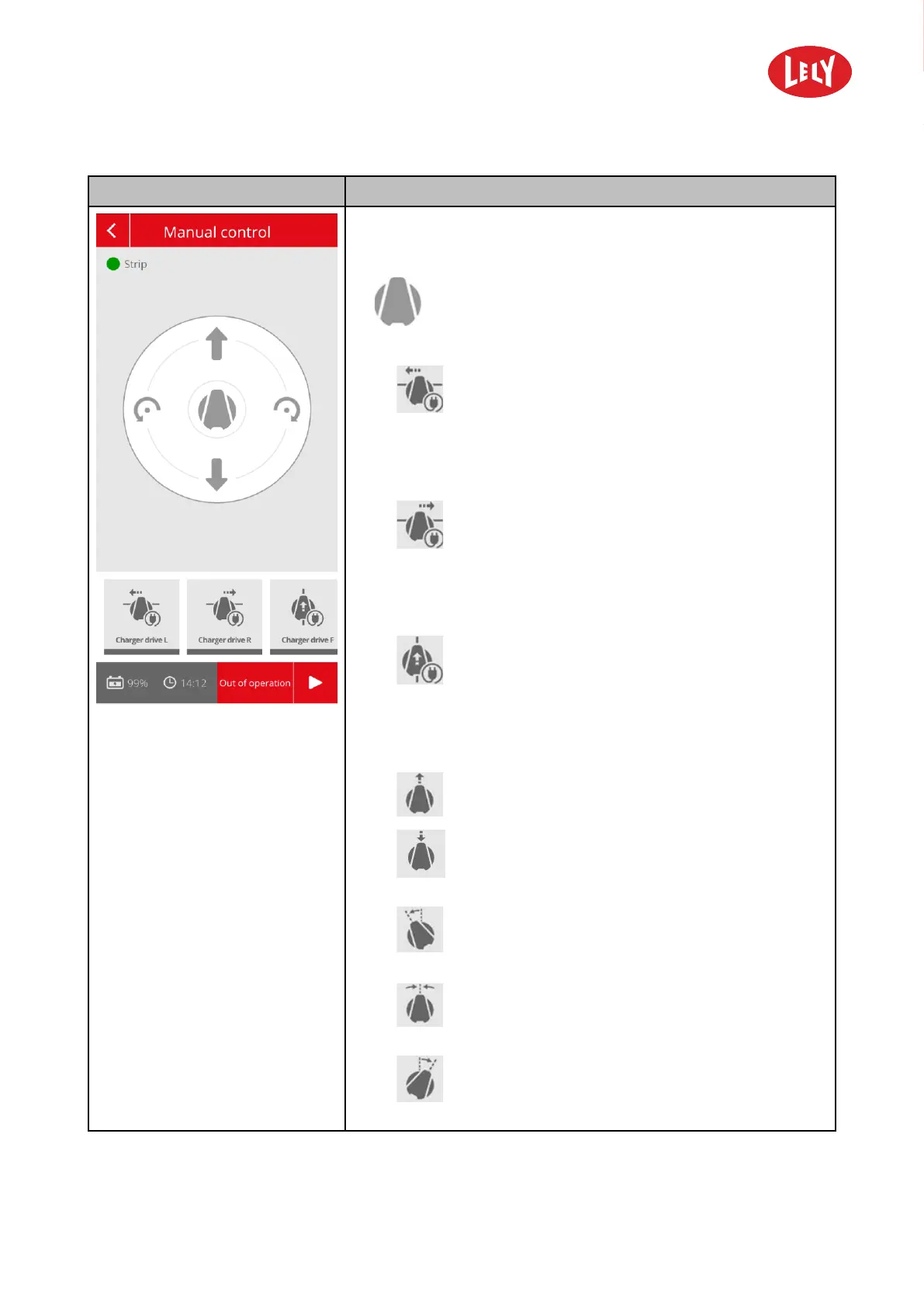

Display
Description
• Manually move the machine.
Buttons
•
to move the machine in all directions.
• Ribbon buttons:
•
Charger drive L: to detect the strip at the charger
and to follow it in the left direction towards the charger.
Approach the strip at a 45 - 90
°
angle and make sure the
distance between the strip and the induction sensors is
between 30 and 200 cm (12 and 79 in).
•
Charger drive R: to detect the strip at the charger
and to follow it in the right direction towards the charger.
Approach the strip at a 45 - 90
°
angle and make sure the
distance between the strip and the induction sensors is
between 30 and 200 cm (12 and 79 in).
•
Charger drive F: to detect the strip at the charger
and to follow it towards the charger. Approach the strip in
the direction of the strip and make sure the induction
sensors are on top of the strip or approach the strip from a
max. distance of 30 cm (12 in).
•
Straight forward: to drive the machine straight on.
•
Straight backward: to drive the machine straight
backward.
•
Skirt left: to move the skirt of the machine to the left
feed push position.
•
Skirt lift: to lift the skirt from the ground. E.g to drive
from one barn to another.
•
Skirt right: to move the skirt of the machine to the
right feed push position.
