4-32 Description and Operation

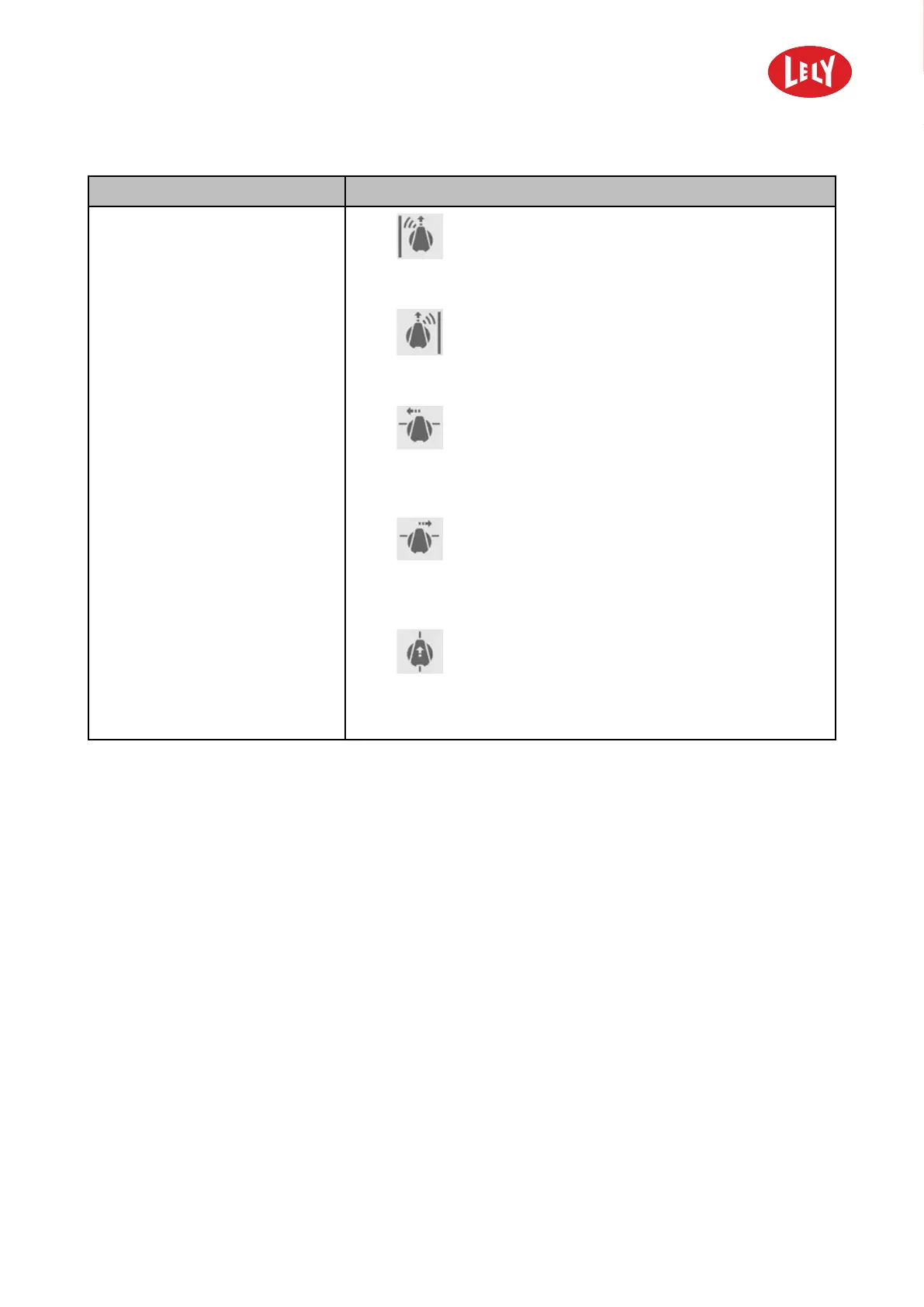

Display
Description
•
Ultrasound follow L: to follow a wall or fence at the
left side of the machine at a distance of 1.8 meter (5.9 ft)
from the wall or fence using ultrasound.
•
Ultrasound follow R: to follow a wall or fence at the
right side of the machine at a distance of 1.8 meter (5.9 ft)
from the wall or fence using ultrasound.
•
Strip follow L: to detect a strip and follow it into the
left direction. Approach the strip at a 45 - 90
°
angle and make
sure the distance between the strip and the induction
sensors is between 30 and 200 cm (12 and 79 in).
•
Strip follow R: to detect a strip and follow it into the
right direction. Approach the strip at a 45 - 90
°
angle make
sure the distance between the strip and the induction
sensors is between 30 and 200 cm (12 and 79 in).
•
Strip follow F: to detect a strip and to follow it.
Approach the strip in the direction of the strip and make sure
the induction sensors are on top of the strip or approach the
strip from a max. distance of 30 cm (12 in).
