13. Install the fill plug in gearbox B.
14.
Remove the collection container from the area and dispose of the
drained oil as specified by local regulations.
Replace the oil after the first 30 working hours and every 250 working hours with GX85-W140
transmission oil or equivalent.

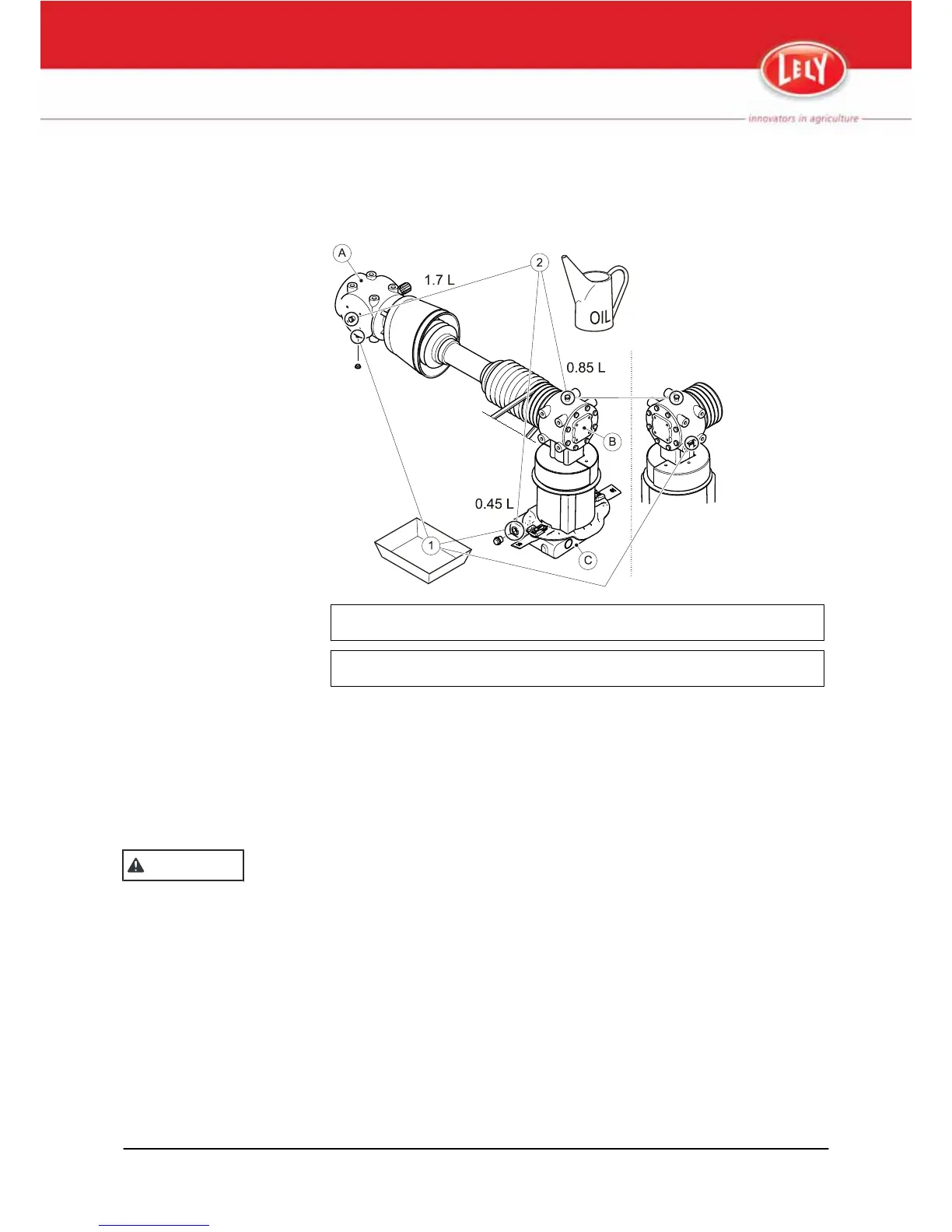

1. Drain plug - 2. Fill plug
A. Gearbox - B. Gearbox - C. Drive Element
Figure 21. Replace the Gearbox Oil and Drive Element Oil
5.2.5 Replace the Drive Element Oil
• Requirements:
•
Collection container (minimum capacity: 0.5 liter)
• GX85-W140 transmission oil or equivalent
An incorrect quantity of oil will cause overheating and permanent damage to
the drive element.
1. Move the Splendimo to the transport position (page 3-4).
2. Put a collection container under drive element C.
3. Clean the area around the drain plug.
4. Remove the drain plug from drive element C and allow the oil to flow
into the collection container.
5. Clean the drain plug.
6. Move the Splendimo to the working position.
7. Refill drive element C with 0.45 l of GX85-W140 transmission oil or
equivalent.
8. Install the drain plug.
