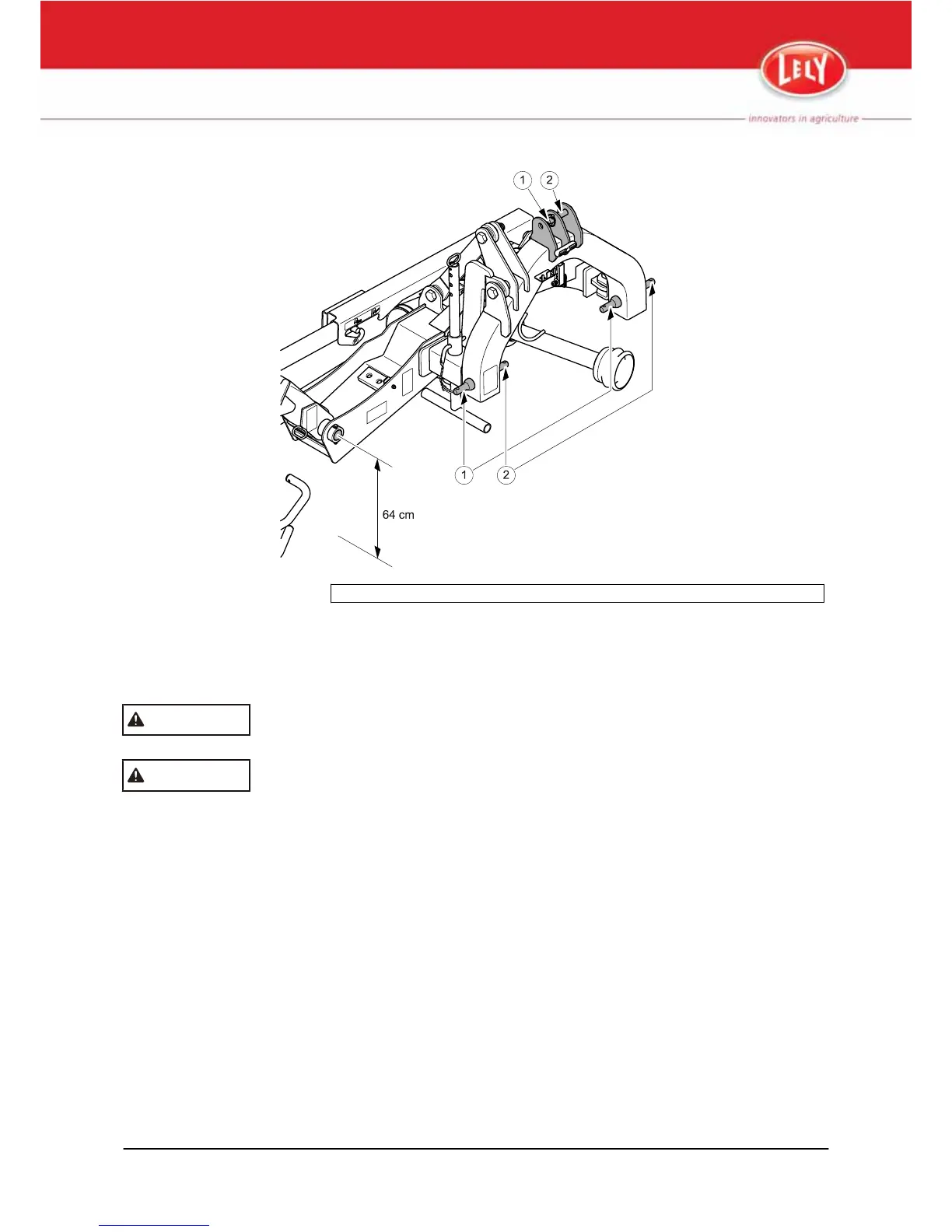

1. Connection position 1 - 2. Connection position 2
Figure 5. Connection Points
3.2 Disconnect the Splendimo from the Tractor
Always position the tractor on solid ground before you disconnect the
Splendimo from the tractor.
Make
sure there are no persons near the Splendimo when you disconnect
it from the tractor.
1. Set the hydraulic valve in the tractor to the floating position.
2. Pull the operating cord to engage the locking hook on the hydraulic ram.
3. Lower the headstock until the locking hook of the hydraulic ram is
engaged in the parking position.
4. Move the parking jack to position 1 (fig. 6, page 3-3).
5. If topping skids are installed move the parking jack to position 2 or 3.
6. Use the tractor 3-point hitch to lower the headstock until the parking jack
is on the ground.
7. Switch off the tractor engine.
8. Disconnect the Splendimo primary PTO-shaft from the tractor PTO.
9. Attach the primary PTO-shaft to the PTO support.
10. Disconnect the two hydraulic hoses from the tractor hydraulic system.
11. Install the two dust caps on the two hydraulic hoses.
WARNING
WARNING
3-2 Operation
M-H025.1011EN
