4.5 Adjust the Pretension of the Anti-Shock Device
1. Tighten
or loose the nuts of the anti-shock device until the rubber buffer
has a length of 95 mm.

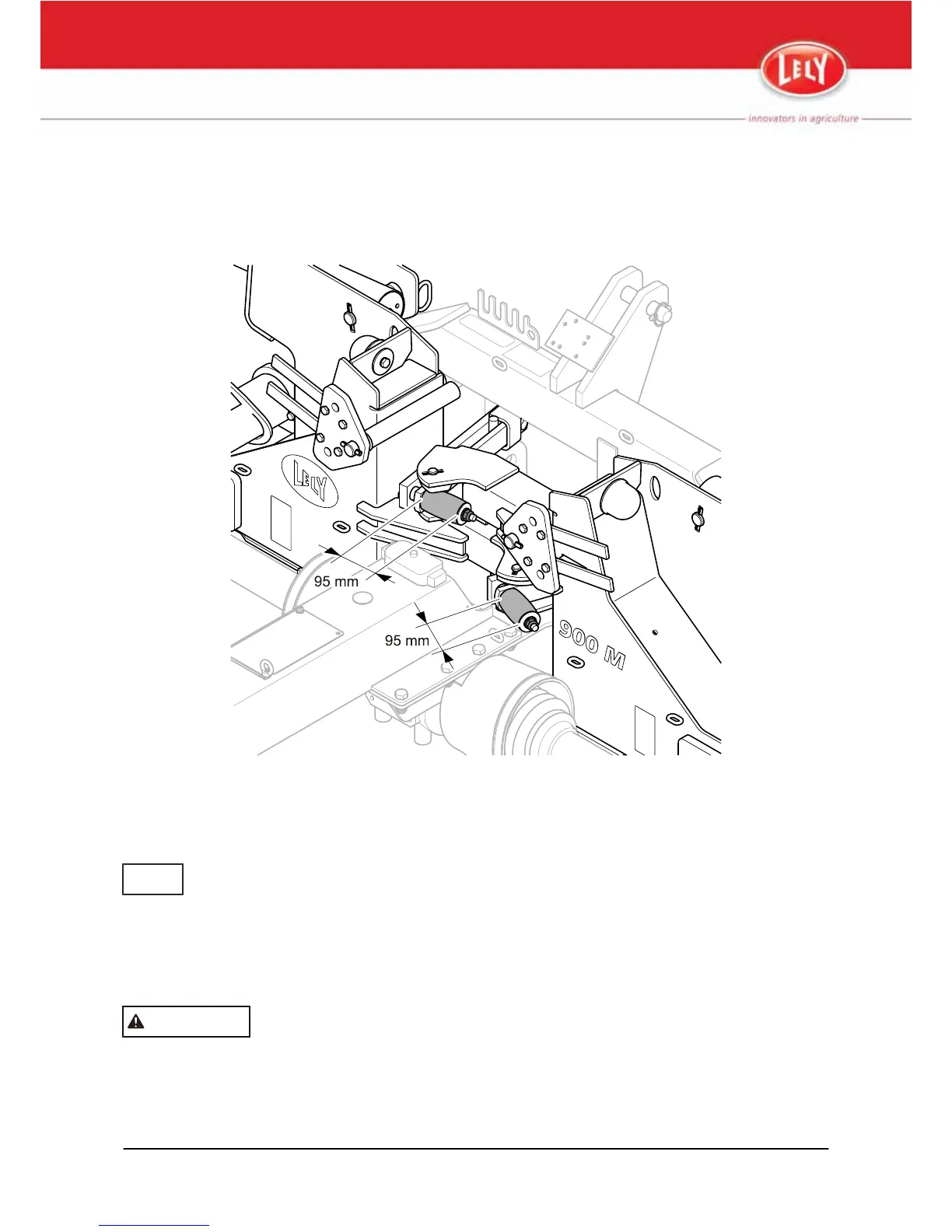

Figure 21. Adjust the Pretension of the Anti-Shock Device
4.6 Adjust the Oblique Mowing Height
This is only necessary in case the mowing height of the left and right
mower differs.
1.
Connect the Splendimo to the tractor (page 3-1).
2. Move the Splendimo to the working position.
3. Stop the tractor engine.
Wait until all moving parts have stopped before you do adjustments to
the Splendimo.
4. Use a hammer to remove the two roll pins on top of one of the vertical
pivot pins.
5. Remove the excentric bush.
Note:
WARNING
Test and Adjustment 4-7
M-H021.1004EN
