LELY Splendimo 900 M - Disassemble the Cutter Bar

1. Cover - 2. Gearbox - 3. Stub axle - 4. Yoke - 5. Hat - 6. Mower disc - 7. Bearing housing

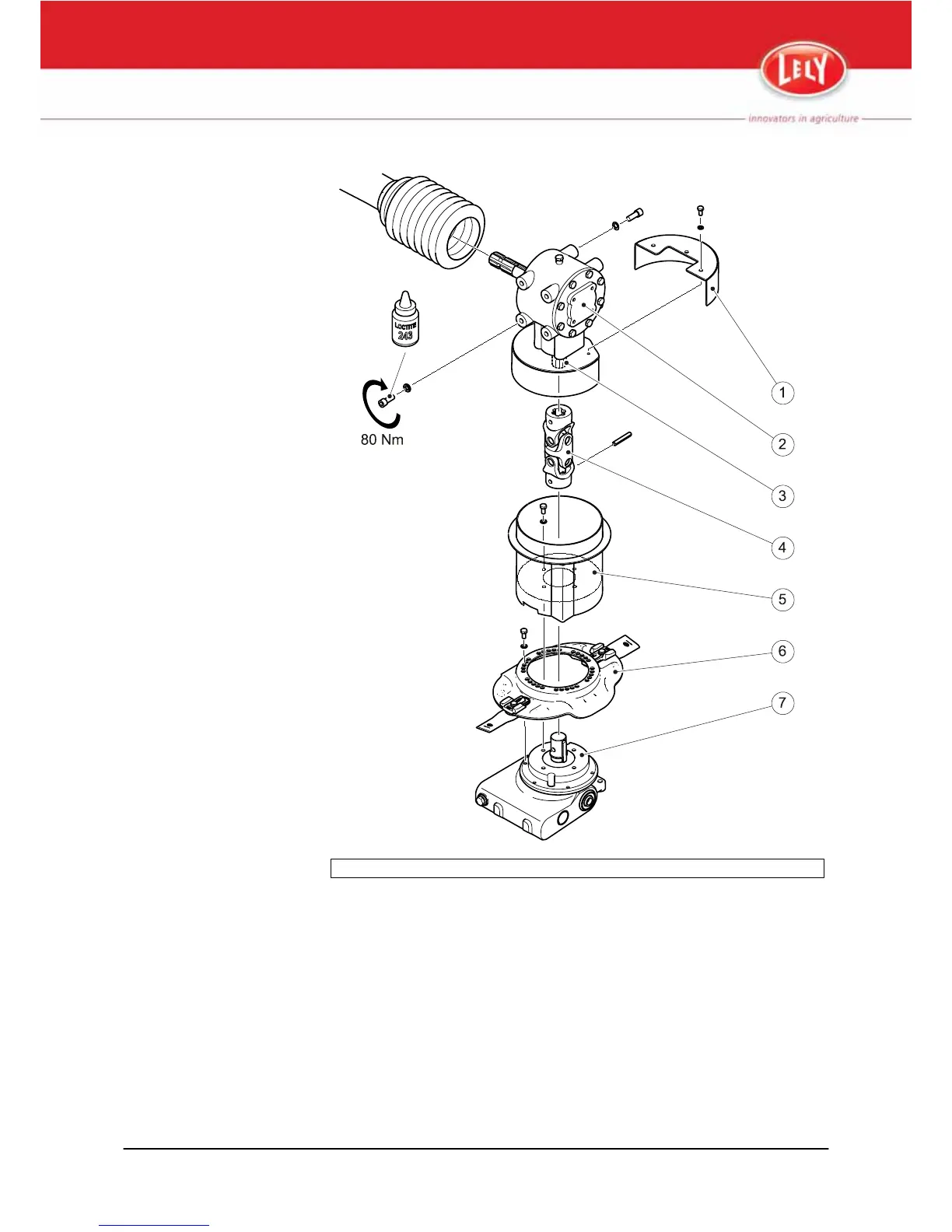

Figure 31. Exploded view of the drive line
5.3.4 Disassemble the Cutter Bar
• Requirements:
•
Socket spanner 46 mm
• Torque wrench
• 150 cm extension pipe
1. Clean the cutter bar.
2. Connect the Splendimo to the tractor (page 3-1).
3. Lower the Splendimo onto a level floor.
