Replace the oil after the first 30 working hours and every 250 working hours with GX85-W140
transmission oil or equivalent.

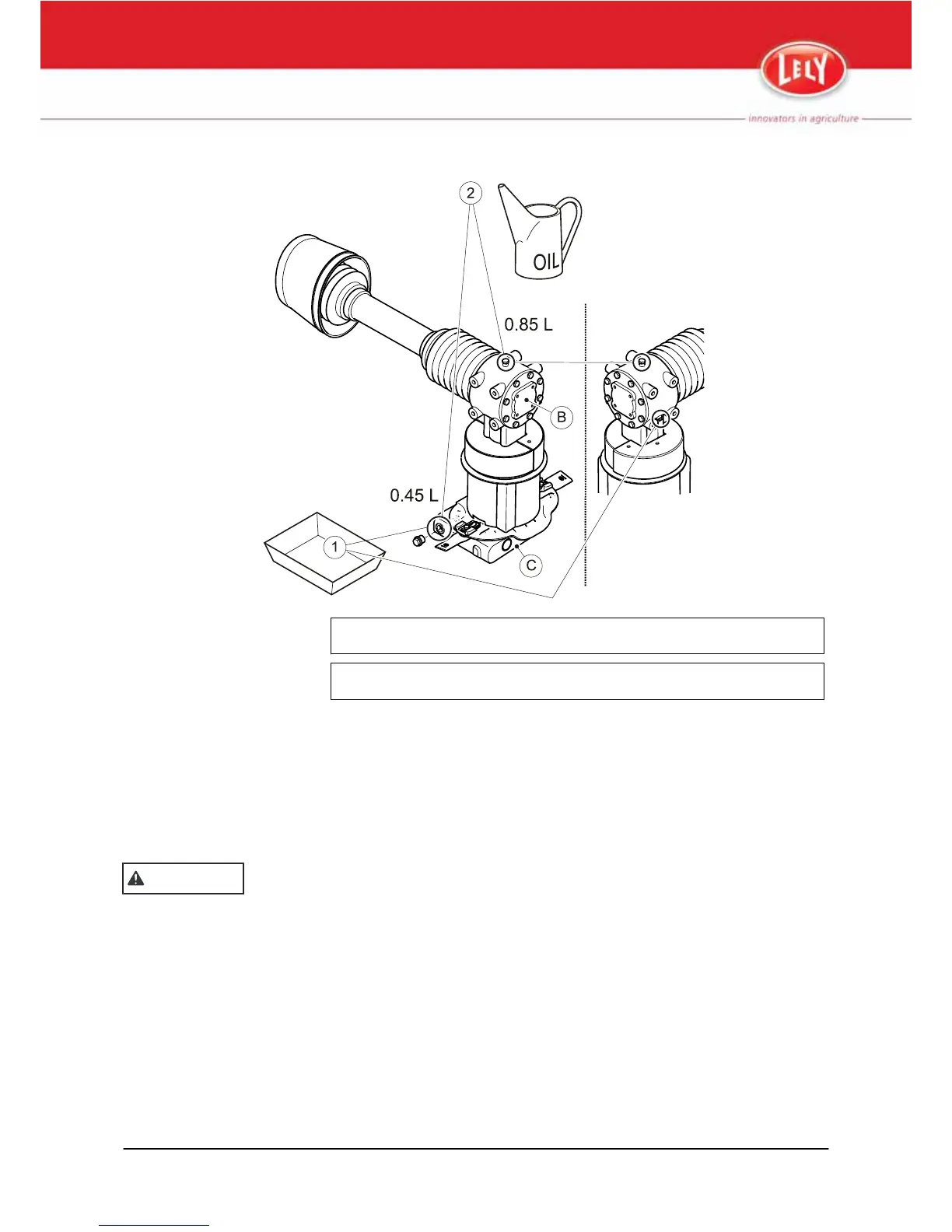

1. Drain plug - 2. Fill plug
B. Gearbox - C.Drive element
Figure 27. Replace the Gearbox and Drive Element Oil
5.2.6 Replace the Drive Element Oil
• Requirements:
•
Collection container (minimum capacity: 0.5 liter)
• GX85-W140 transmission oil or equivalent
An incorrect quantity of oil will cause overheating and permanent damage to
the drive element.
1. Move the Splendimo to the transport position.
2. Put a collection container under drive element C.
3. Clean the area around the drain plug.
4. Remove the drain plug from drive element C and allow the oil to flow
into the collection container.
5. Clean the drain plug.
6. Move the Splendimo to the working position.
7. Refill drive element C with 0.45 l of GX85-W140 transmission oil or
equivalent.
8. Install the drain plug.
CAUTION
5-8 Maintenance
M-H021.1004EN
