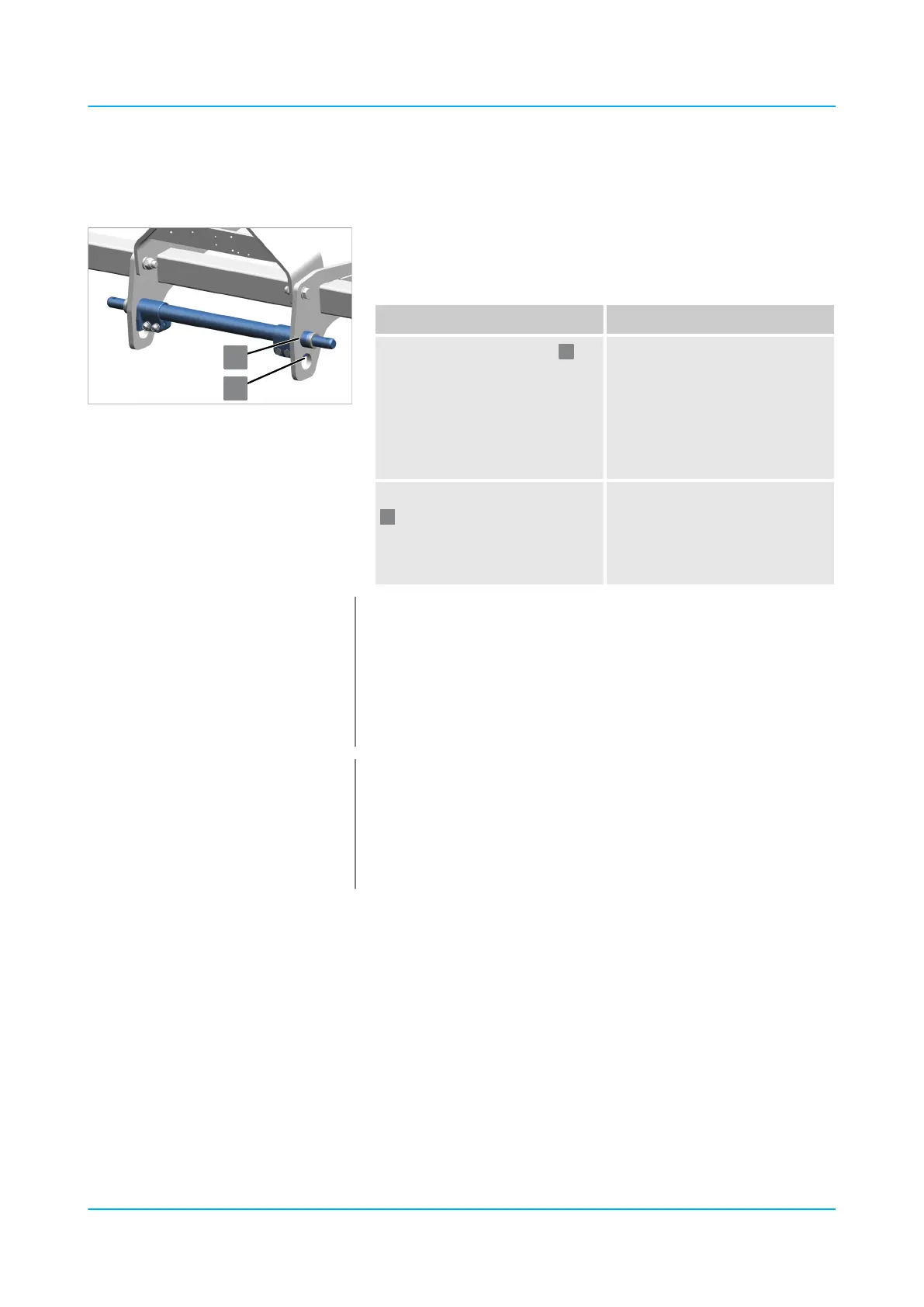

1
Upper mounting position
2
Lower mounting position
Two dierent heights (draw point positions) are provided at the
machine for the cross shaft.
Mounting position Eect
Cross shaft mounted at top
1
Low draw point
n Improve penetration of the
machine.
n Increase roller pressure.
n Reduce lifting force require‐
ment.
Cross shaft mounted at bottom
2
High draw point
n Increase lift height.
n Reduce slippage.
n Reduce roller pressure.
ATTENTION
Excessive pressure load on the rollers will cause them
to become clogged or sink into the ground too much.
Damage to the machine possible.
Reduce the weight load on the rollers:
– Mount the top link higher on the headstock.
INFORMATION
Insucient pressure load on the rollers will cause insu‐
cient reconsolidation or crumbling eect of the rollers.
Increase the weight load on the rollers:
– Mount the top link lower on the headstock.
Preconditions:
√ The machine is parked on even subsoil.
√ Machine has been detached from the tractor.
Changing cross shaft mounting posi‐
tion
1
2
Cross shaft in the upper mounting position
Commissioning
en-GB | Item no. 17516276 | BA 01/2023-09 34
