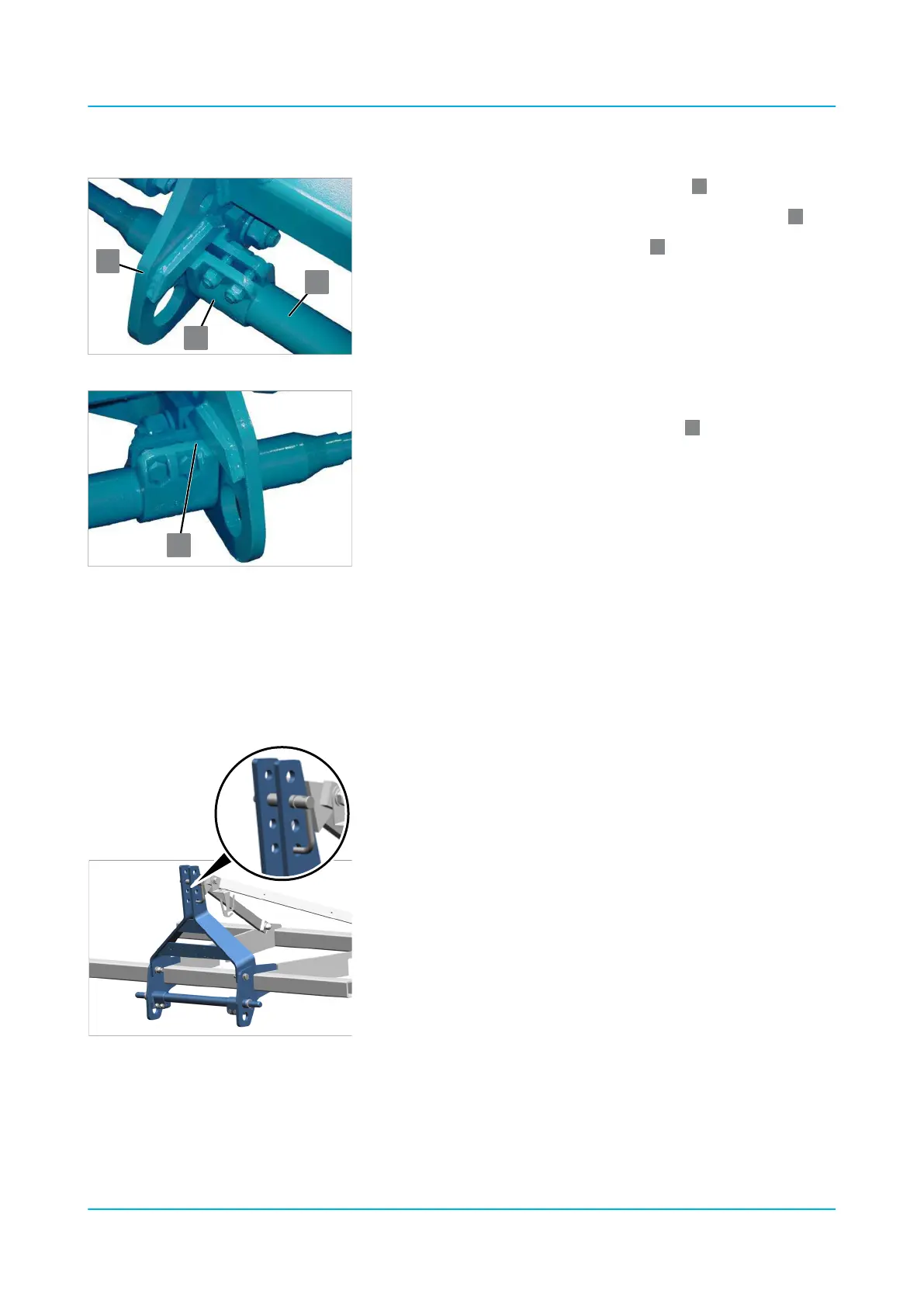

1.
Undo the nuts of the screws of the two stops
2
.
2.
Pull the cross shaft halfway out of the holes in the rail plates
1
.
3.
Remove the stops from the cross shaft
3
.
Put them to one side.
4. Pull the cross shaft out of the holes.
5. Insert the cross shaft into the desired hole of the rail plate.
Push approx. 50 cm inwards.
6. Slide the stops onto the cross shaft.
Make sure the side with the support surface
1
always faces the rail
plate.
7. Push the cross shaft through the holes until the two ends of the
cross shaft, on both the left and right, are an equal distance from
the rail plates.
8. Push the stops up to the rail plates.
Make sure that the support surfaces are in contact with the stop of
the rail plates.
9. Tighten the nuts of the screws.
Several mounting positions are provided for the top link on the head‐
stock. Ä Chapter 4.2.1 ‘Practical knowledge - Eects of the mounting
position’ on page 28
1
2
3
1
Rail plate
2
Stop
3
Cross shaft
1
1
Side with the support surface
Changing top link mounting position
Example image
Commissioning
en-GB | Item no. 17516276 | BA 01/2023-09 35
